Mini-Screen Safety Light Screens

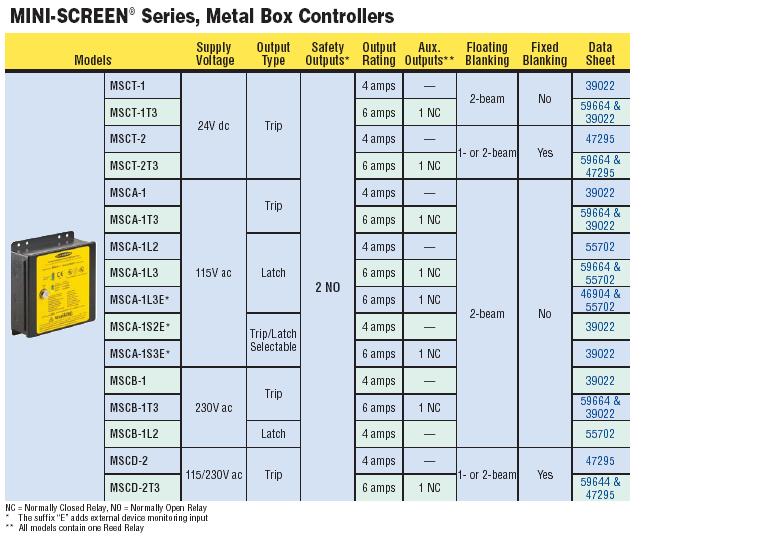

 Controllers in Steel Enclosure
Polyester powder paint finish steel enclosure

115/230V ac or 24V dc supply voltage

Floating blanking and selectable auto power-up

Optional fixed blanking, muting and External Device Monitoring (EDM)

Latch or trip output

IP64 Enclosure

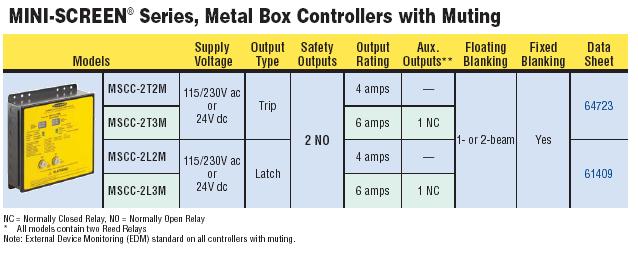

Click Here for Standard  Model Specifications       Click Here for Muting Model Specifications
