EExm Solenoid Valves |
The following valves are suitable for installation in hazardous
areas and are certified EExm
All valves are finised in Teflon, inside and outside, providing
consistent flow rates and superior durability. Manifold arrangements
are also available. |
V9 Series |

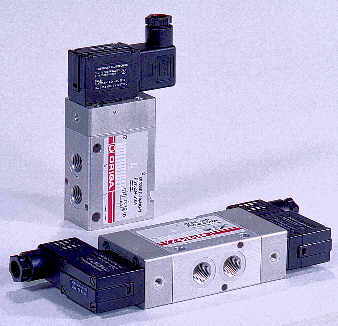

S9 Series |
Direct, Poppet and Spool Valves
|
|
Port Size |
Action |
Operation |
Nominal Flow
(Litres/min) |
Valve Series |
Part No
(24Vdc Coil) |
Part No
(220Vac Coil) |
|
G1/8 |
3/2 |
Direct |
37 |
V9 |
PA 10362-4833 |
PA 10362-9833 |
|
G1/8 |
3/2 |
Pilot |
450 |
S9 |
PA 10297-4833 |
PA 10297-9833 |
|
G1/4 |
3/2 |
Pilot |
1300 |
S9 |
PA 12716-4833 |
PA 12716-9833 |
|
G1/2 |
3/2 |
Pilot |
3500 |
S9 |
PA 16412-4833 |
PA 16412-9833 |
|
G1/8 |
5/2 |
Pilot |
500 |
S9 |
PA 10312-4833 |
PA 10312-9833 |
|
G1/4 |
5/2 |
Pilot |
1300 |
S9 |
PA 12679-4833 |
PA 12679-9833 |
|
G1/2 |
5/2 |
Pilot |
3500 |
S9 |
PA 16171-4833 |
PA 16171-9833 |
|

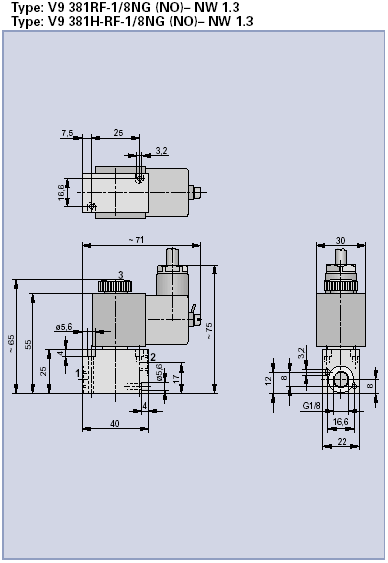

V9 Valve - 1/8"
|

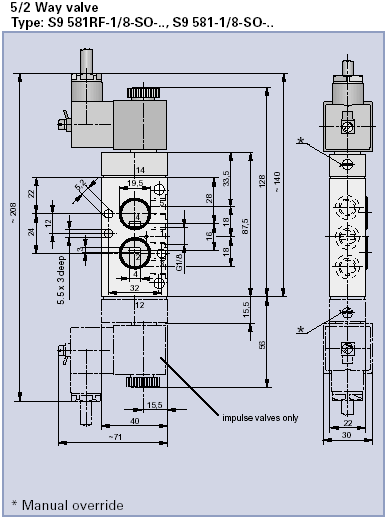

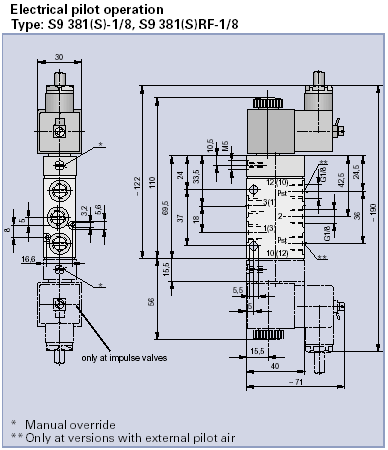

S9 Valve - 1/8"
|
|

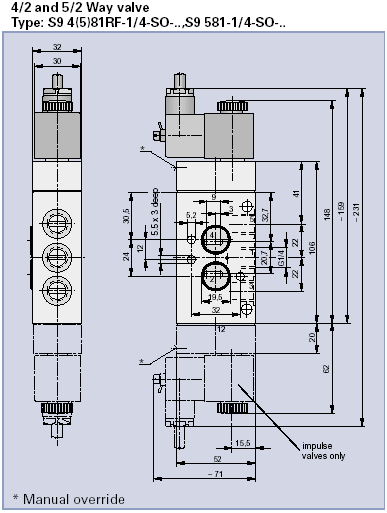

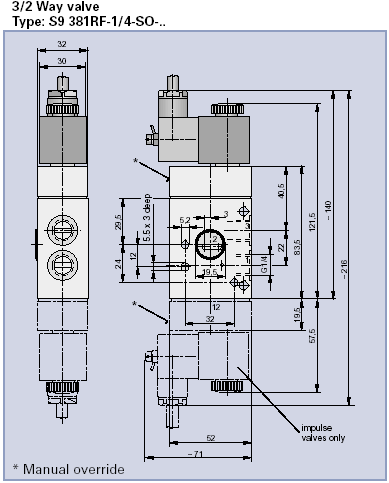

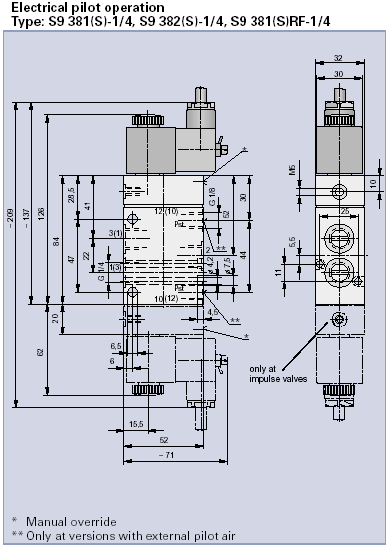

S9 Valve - 1/4"
|

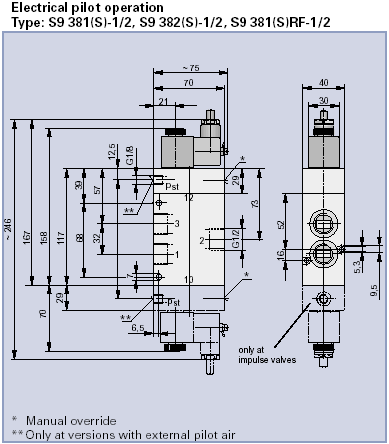

S9 Valve 1/2"
|
Spool valve with ISO
5599 sizes 1, 2, & 3
|

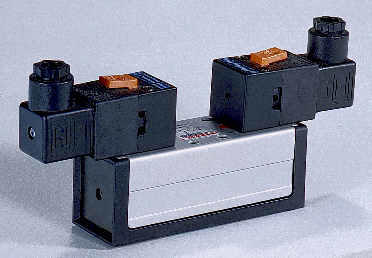

S20 Series |
|
Port Size |
Action |
Operation |
Nominal Flow
(Litres/min) |
Valve Series |
Part No
(24Vdc Coil) |
Part No
(220Vac Coil) |
|
5599/1 |
5/2 |
Spool |
1380 |
S20 |
PA 12875-4833 |
PA 12875-9833 |
|
5599/2 |
5/2 |
Spool |
3720 |
S20 |
PA 16441-4833 |
PA 16441-9833 |
|
5599/3 |
5/2 |
Spool |
6660 |
S20 |
PA 16442-4833 |
PA 16442-9833 |
|

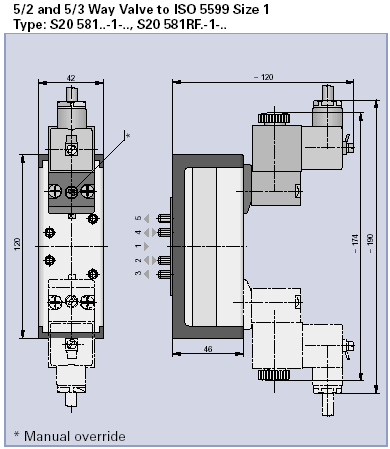

Size 1 Valve
 |

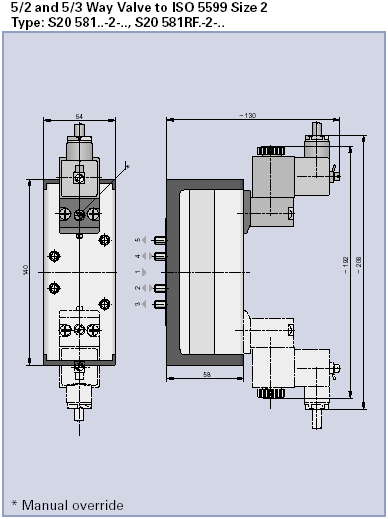

Size 2 Valve
|
|

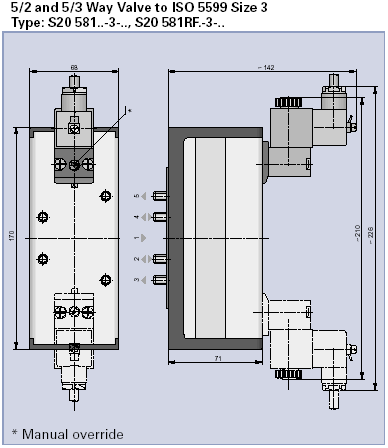

Size 3 Valve
 |
|
|
Direct acting valves with NAMUR connections |
S9 Namur |
|
Port Size |
Action |
Operation |
Nominal Flow
(Litres/min) |
Valve Series |
Part No
(24Vdc Coil) |
Part No
(220Vac Coil) |
|
G1/4 |
3/2 |
Pilot |
1300 |
S9 |
PD 33854-4833 |
PD 33854-9833 |
|
G1/8 |
5/2 |
Pilot |
450 |
S9 |
PD 34143-4833 |
PD 34143-9833 |
|
G1/8 |
5/2 |
Pilot |
1300 |
S9 |
PD 34985-4833 |
PD 34985-9833 |
|
