Q45U Switch

Ultrasonic Sensors type Q45U Switch Output (pnp and npn)
	• Sonic cone angle of 15° (long range) 12° (short range) • Plastic housing • Cable, 2 m • Connector

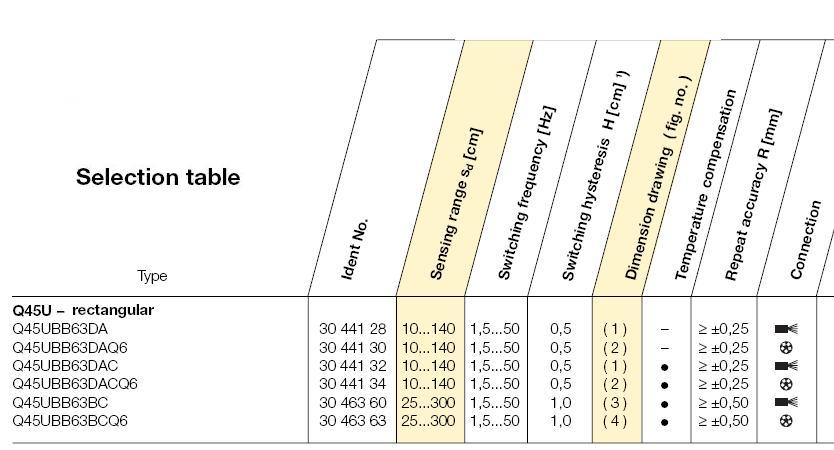

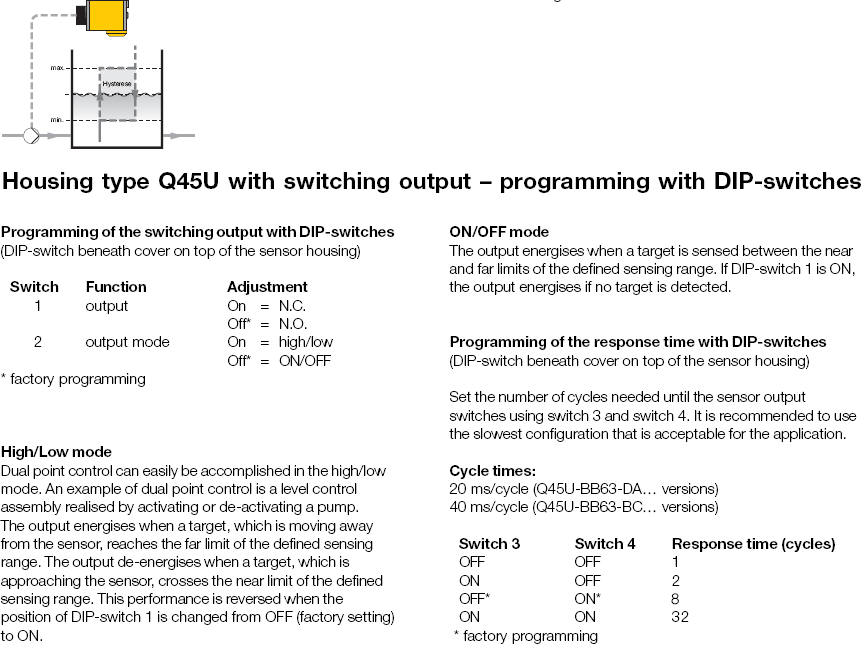

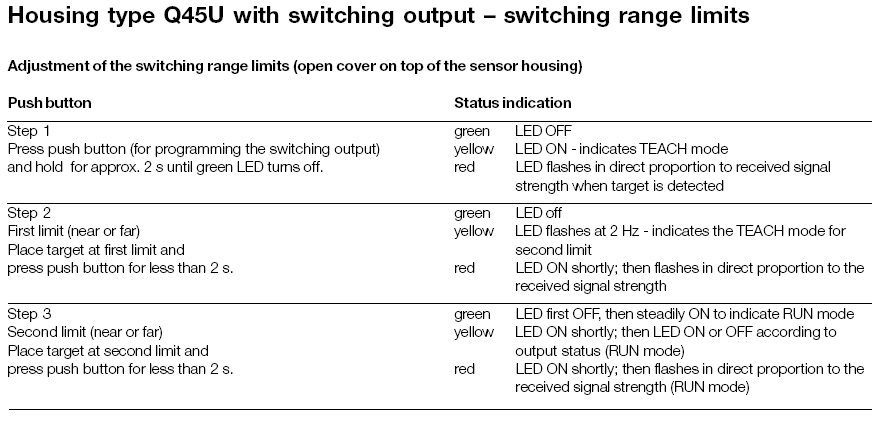

General data Supply voltage UB 12...24 VDC Rated operational current Ie 150 mA No-load current I0 100 mA Voltage drop Ud < 2 V Cyclic short-circuit protection Full reverse polarity protection Wire-breakage protected Temperature drift – without compensation 0,18%/K – compensation 0...50 °C 0,05%/K – compensation -25...+70 °C 0,13%/K Degree of protection IP67 Temperature range -25...+70 °C	Adjustments Via teach-in function (push button or remote input): – switching range Via DIP switches: – pump control function – output: N.O./N.C. – response time Materials Sensor housing PBT thermopl. polyester Cover (transparent) LEXAN® (PC)

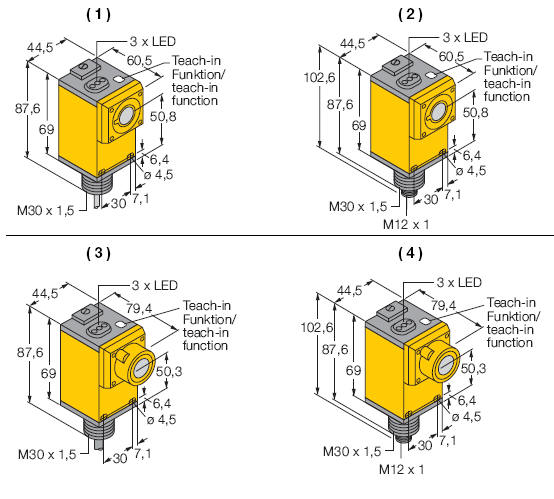

Dimensional Drawings Housing Q45U

Wiring Diagram 5 = Remote teach (Connect to +)
Indication LEDs Green = Power ON Yellow = Switch Status On/Off Green Flashing = Overload Red Flashing = Object Detected (Flash Rate proportional to signal)
