Ultra18 LFX

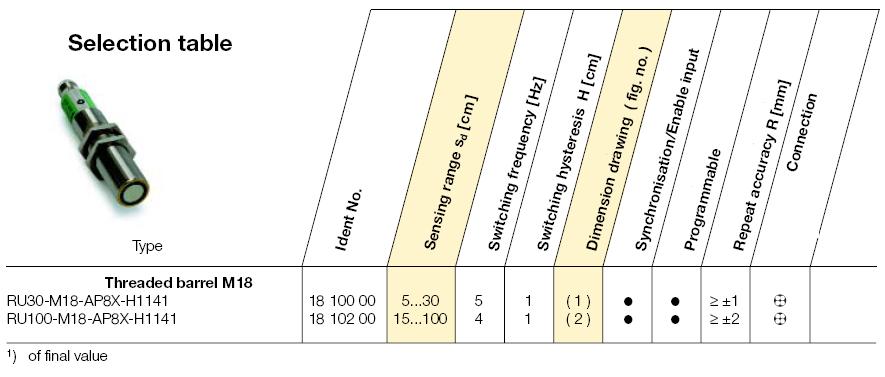

Ultrasonic Sensors type M18 - Analogue Frequency Output
	Threaded barrel housing, M18 ● N.O. pnp transistor output ● Sonic cone angle of 6° ● Brass, nickel-plated ● Connector

General data Supply voltage UB 20...30 VDC Rated operational current Ie 150 mA No-load current I0 ≤ 50 mA Voltage drop Ud < 3 V Cyclic short-circuit protection Full reverse polarity protection Wire-breakage protected Temperature drift ± 2,5 %1) Degree of protection IP65 Switching indication LED, yellow Temperature range -25...+70 °C	Adjustments Upper limit of the switching range adjustable via potentiometer or programming device RU-PDI Materials Sensor housing CuZn, nickel-plated Sonic transducer Epoxy resin and PU-foam Transducer ring PBT

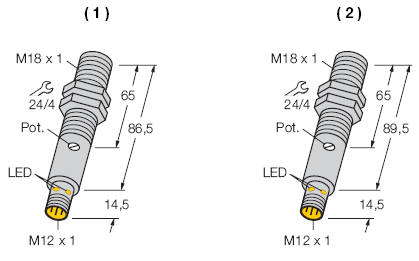

Dimensional Drawings Threaded barrel M 18 x 1 Housing diameter 18 mm Fixing torque 20 Nm Spanner size (AF) 24 Thickness of nut 4 mm
Wiring Diagram X1 = Synchronisation / Enable
