Ultra30 4-20

Ultrasonic Sensors type M30 Analogue and Switch Output (pnp)
	Threaded barrel housing, M30 ● Analogue output 4...20 mA and N.O. pnp transistor output ● Sonic cone angle of 6° ● Brass, nickel-plated ● Connector

General data Supply voltage UB 20...30 VDC Current output 4...20 mA Load resistance < 300 Ω Rated operational current Ie 300 mA No-load current I0 ≤ 50 mA Voltage drop Ud < 3 V Cyclic short-circuit protection Full reverse polarity protection Wire-breakage protected Temperature drift ±1,5 % 1) Linearity tolerance ≤ ± 0,5 % Degree of protection IP65 Switching indication LED, yellow Temperature range -25...+70 °C	Adjustments Lower and upper limit of switching range adjustable via potentiometer, lower and upper limit of analogue and switching range adjustable via programming device RU-PDI Materials Sensor housing CuZn, nickel-plated Sonic transducer Epoxy resin Transducer ring PBT

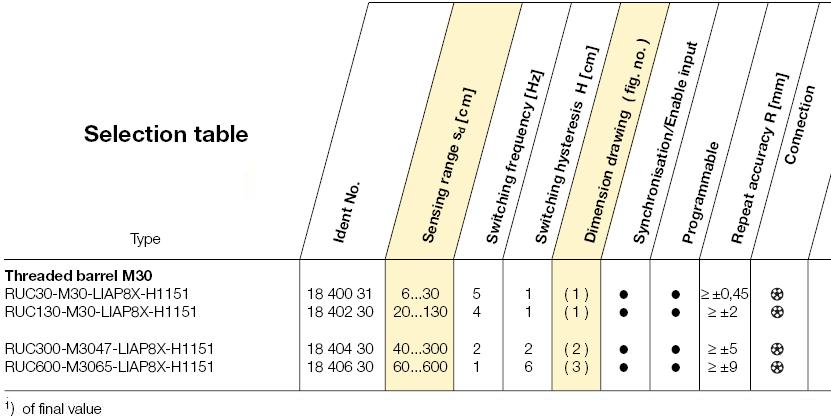

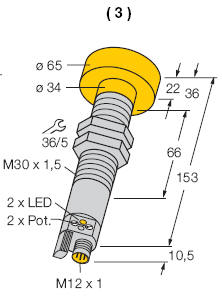

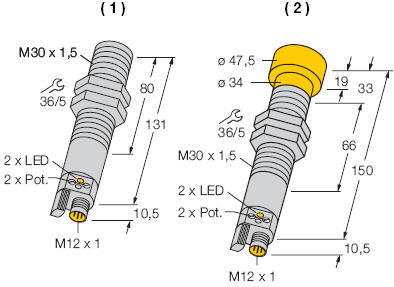

Dimensional Drawings Threaded barrel M30 x 1,5 Fixing torque 60 Nm Spanner size (AF) 36 Thickness of nut 5 mm
Wiring Diagram X1 = Synchronisation / Enable Input Output Characteristic
