Foundation Fieldbus M12 Cordsets
![](fiehorizsidebysidevertical.jpg)
|

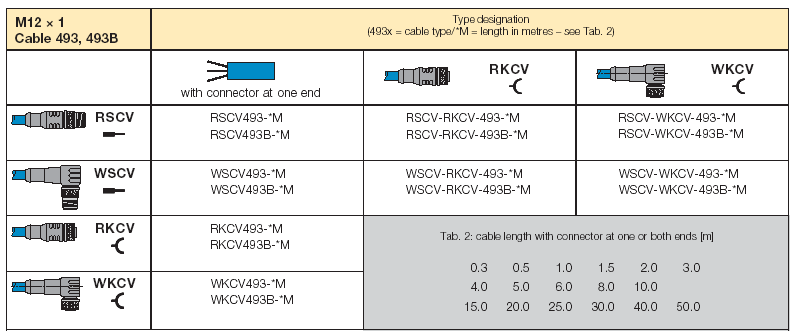

Use the following chart to
specify the plug and/or socket arrangement required on each end of a desired
cable length.
Once you have selected the cable type you require and the cable length in
metres, the chart enables you to select which pre-moulded connector you require
on one end.
You can then select either to have the other end of the cable without a
connector (column 2 in the chart) or select the type of connector you require on
the other end from the corresponding row beneath. |
Note: Where "*" appears insert
the length required in metres.
|
![](ff_m1236.gif)
|
![](ff_m1237.gif)
|
|
