Ex Electric Actuators
-Schematics


Quick Links to Schematics:

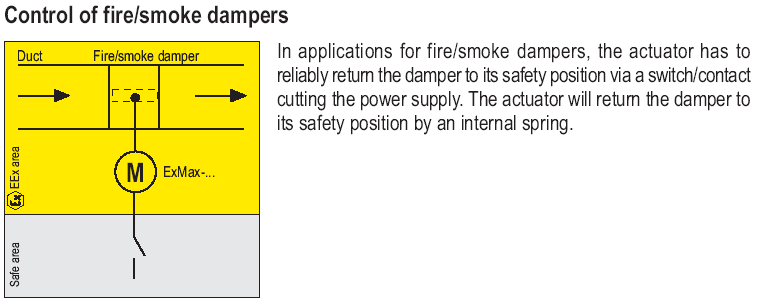

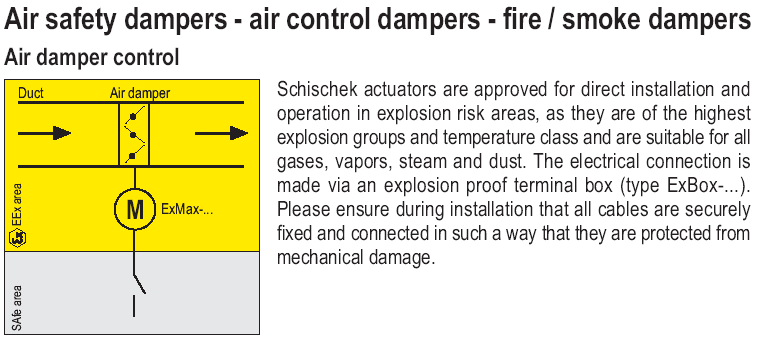

Air Damper Control       Automatic Air Damper Control       Control of Fire/Smoke Dampers

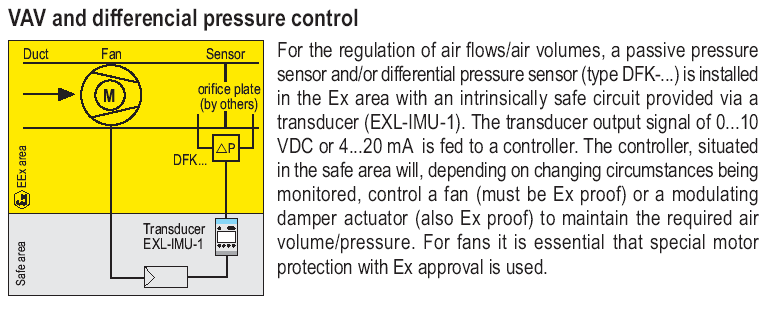

Heating/Cooling Control            Humidity Control         VAV & Differential Pressure Control

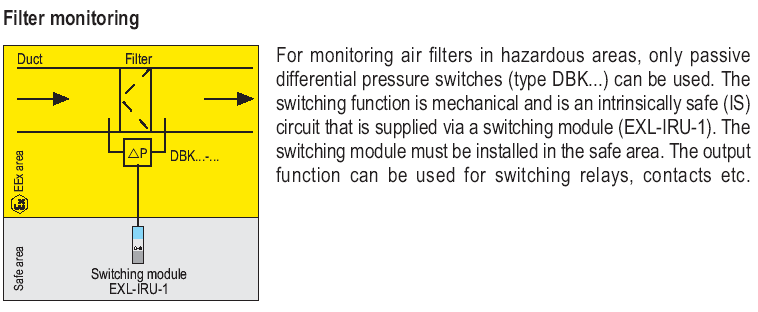

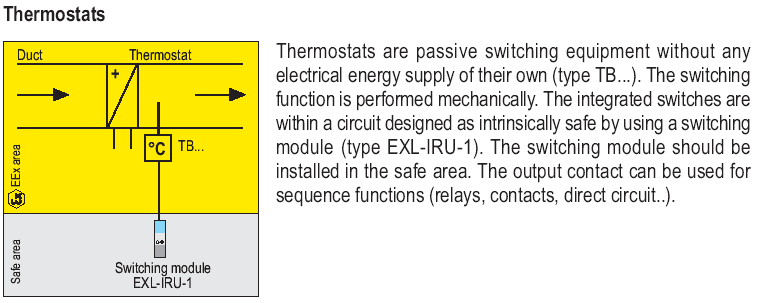

Thermostats                                     Hygrostats                                 Filter Monitoring

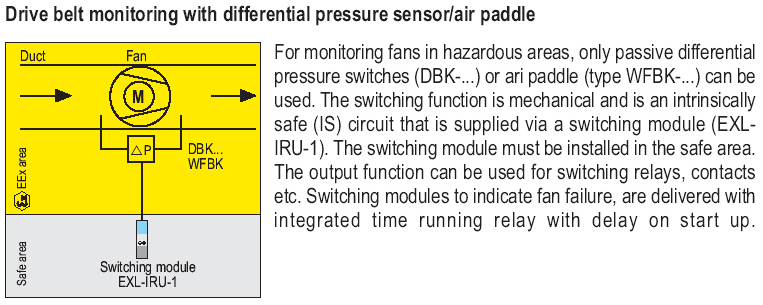

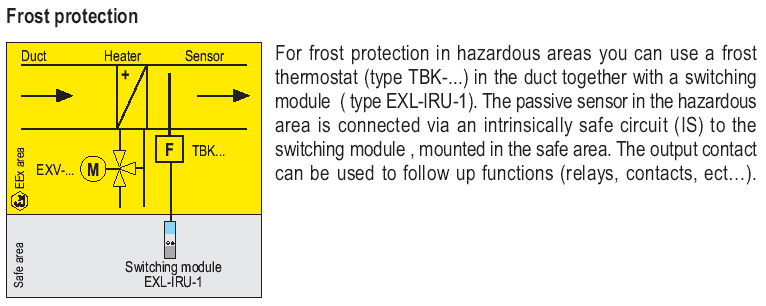

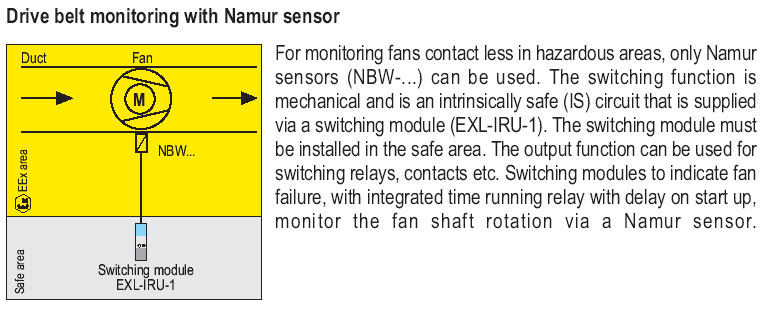

Drive Belt Monitoring with dP       Drive Belt Monitoring with Namur Sensor    Frost Protection
