Standard Cordsets in Yellow (Type 254), Black (Type 254BK) and (Blue Type 254B)



M12 Cordsets, Connector on One End Only

ASi Cable Type 254





RKC Female Straight       WKC Female Right-Angled     RSC Male Straight WSC         Male Right-Angled

Connector Dimensions in Inches (millimetres)

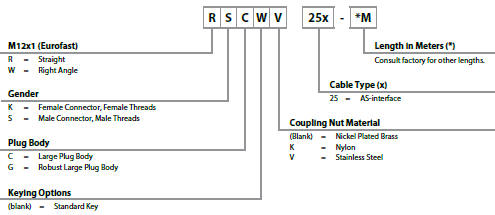

Meaning of Part Number



Type Size Gender Connector Style ST=Straight  RA=Right-Angled Cable Length Design
RKC254-1M M12 Female ST 1
RKC254-2M M12 Female ST 2
RKC254-4M M12 Female ST 4
RKC254-6M M12 Female ST 6
RKC254-8M M12 Female ST 8
RKC254-10M M12 Female ST 10
RKC254-15M M12 Female ST 15
WKC254-1M M12 Female RA 1
WKC254-2M M12 Female RA 2
WKC254-4M M12 Female RA 4
WKC254-6M M12 Female RA 6
WKC254-8M M12 Female RA 8
WKC254-10M M12 Female RA 10
WKC254-15M M12 Female RA 15
RSC254-1M M12 Male ST 1
RSC254-2M M12 Male ST 2
RSC254-4M M12 Male ST 4
RSC254-6M M12 Male ST 6
RSC254-8M M12 Male ST 8
RSC254-10M M12 Male ST 10
RSC254-15M M12 Male ST 15
WSC254-1M M12 Male ST 1
WSC254-2M M12 Male RA 2
WSC254-4M M12 Male RA 4
WSC254-6M M12 Male RA 6
WSC254-8M M12 Male RA 8
WSC254-10M M12 Male RA 10
WSC254-15M M12 Male RA 15







M12 Cordsets, Connector on One End Only

ASi Cable Type 254BK





RKC Female Straight       WKC Female Right-Angled     RSC Male Straight WSC         Male Right-Angled

Connector Dimensions in Inches (millimetres)



Type Size Gender Connector Style ST=Straight  RA=Right-Angled Cable Length Design
RKC254BK-1M M12 Female ST 1
RKC254BK-2M M12 Female ST 2
RKC254BK-4M M12 Female ST 4
RKC254BK-6M M12 Female ST 6
RKC254BK-8M M12 Female ST 8
RKC254BK-10M M12 Female ST 10
RKC254BK-15M M12 Female ST 15
WKC254BK-1M M12 Female RA 1
WKC254BK-2M M12 Female RA 2
WKC254BK-4M M12 Female RA 4
WKC254BK-6M M12 Female RA 6
WKC254BK-8M M12 Female RA 8
WKC254BK-10M M12 Female RA 10
WKC254BK-15M M12 Female RA 15
RSC254BK-1M M12 Male ST 1
RSC254BK-2M M12 Male ST 2
RSC254BK-4M M12 Male ST 4
RSC254BK-6M M12 Male ST 6
RSC254BK-8M M12 Male ST 8
RSC254BK-10M M12 Male ST 10
RSC254BK-15M M12 Male ST 15
WSC254BK-1M M12 Male ST 1
WSC254BK-2M M12 Male RA 2
WSC254BK-4M M12 Male RA 4
WSC254BK-6M M12 Male RA 6
WSC254BK-8M M12 Male RA 8
WSC254BK-10M M12 Male RA 10
WSC254BK-15M M12 Male RA 15







M12 Cordsets, Connector on One End Only

ASi Cable Type 254B





RKC Female Straight       WKC Female Right-Angled     RSC Male Straight WSC         Male Right-Angled

Connector Dimensions in Inches (millimetres)



Type Size Gender Connector Style ST=Straight  RA=Right-Angled Cable Length Design
RKC254B-1M M12 Female ST 1
RKC254B-2M M12 Female ST 2
RKC254B-4M M12 Female ST 4
RKC254B-6M M12 Female ST 6
RKC254B-8M M12 Female ST 8
RKC254B-10M M12 Female ST 10
RKC254B-15M M12 Female ST 15
WKC254B-1M M12 Female RA 1
WKC254B-2M M12 Female RA 2
WKC254B-4M M12 Female RA 4
WKC254B-6M M12 Female RA 6
WKC254B-8M M12 Female RA 8
WKC254B-10M M12 Female RA 10
WKC254B-15M M12 Female RA 15
RSC254B-1M M12 Male ST 1
RSC254B-2M M12 Male ST 2
RSC254B-4M M12 Male ST 4
RSC254B-6M M12 Male ST 6
RSC254B-8M M12 Male ST 8
RSC254B-10M M12 Male ST 10
RSC254B-15M M12 Male ST 15
WSC254B-1M M12 Male ST 1
WSC254B-2M M12 Male RA 2
WSC254B-4M M12 Male RA 4
WSC254B-6M M12 Male RA 6
WSC254B-8M M12 Male RA 8
WSC254B-10M M12 Male RA 10
WSC254B-15M M12 Male RA 15
