ASi Tees, Elbows, Gender Changers

These are convenient devices to create a drop or branch in the Main ASi Bus Line. Manufactured with 316 Stainless Steel or Nickel Plated Brass coupling nuts, they provide quick and secure IP67 connections.
The naming sequence on the Sizes column is starting on the left branch of the tee and anticlockwise to the bottom of the tee, then to the right branch of the tee.



         RSV-2RKV 25                                        RSM RSM 25                              RSM 25-FK 4.5

Type Function Sizes Drawing

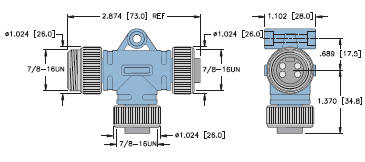

RSV-2RKV 25 Bus Tee 7/8" Male, 7/8" Female, 7/8" Female 1
RSV FKV RKV 25 Bus Tee 7/8" Male, M12 Female, 7/8" Female 2

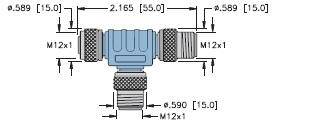

RSCV 2RKCV 25 Bus Tee M12 Male, M12 Female, M12 Female 3
RKC 2RSC 25 Bus Tee M12 Female, M12 Male, M12 Male 4

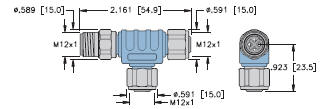

RSCV WKCV 25 Elbow M12 Male, M12 Female 5
RSC RKC 25 Gender Change Straight M12 Male, M12 Female 6

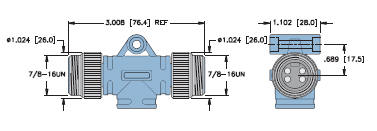

RSM RSM 25 Gender Change Straight 7/8" Male - 7/8" Male 7

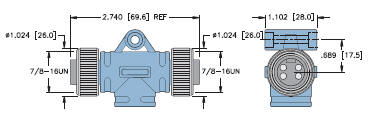

RKM RKM 25 Gender Change Straight 7/8" Female - 7/8" Female 8

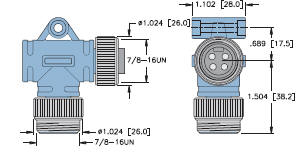

WSM RKM 25 Gender Change Right Angled 7/8" Male -7/8" Female 9
RSM 25-FK 4.5 Gender Change Straight 7/8" Male - M12 Female 10

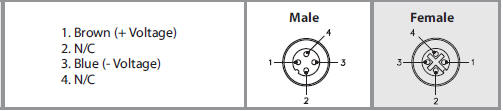

7/8" Pinouts

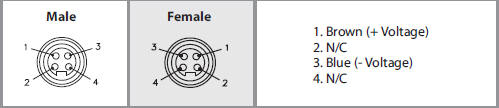

M12 Pinouts


Dimensions Drawings
Inches (millimetres)

Dwg 1: RSV-2RKV 25                                                           Dwg 2: RSV FKV RKV 25

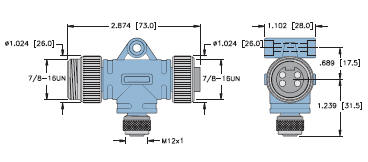

Dwg 3: RSCV 2RKCV 25                                          Dwg 4: RKC 2RSC 25



Dwg 5: RSCV WKCV 25                           Dwg 6: RSC RKC 25



Dwg 7: RSM RSM 25                                              Dwg 8: RKM RKM 25



Dwg 9: WSM RKM 25                                           Dwg 10: RSM 25-FK 4.5
