M23 Cordsets
M12 I/O CSets











M23 Supply Cordsets for

Plug-In Junction Boxes

Plug-In Junction Boxes offer a really neat, quick and secure solution not only for 24V power distribution to equipment but also returning switch signals for up to 8 sensors .

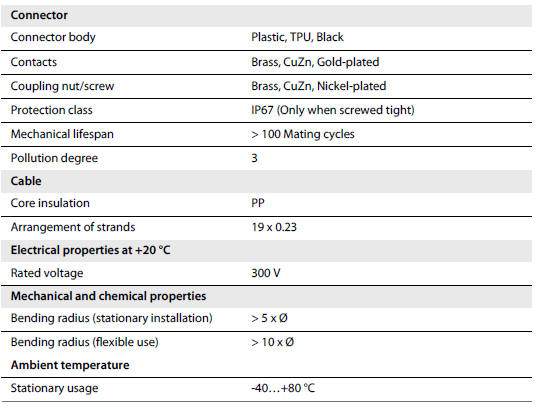

Below is a selection of supply cordsets to power the junction boxes





  Conductors Diameter Length Cores Ident No Type



 7 6.7 5 7x0.82 6631122 CKCM12-7-5/TXL
7 6.7 10 7x0.82 6631123 CKCM12-7-10/TXL



 7 6.7 5 7x0.82 6631126 CKCWM12-7-5/TXL
7 6.7 10 7x0.82 6631127 CKCWM12-7-10/TXL



 11 8.4 5 11x0.82 6631124 CKCM12-11-5/TXL
11 8.4 10 11x0.82 6631125 CKCM12-11-10/TXL



 11 8.4 5 11x0.82 6631128 CKCWM12-11-5/TXL
11 8.4 10 11x0.82 6631129 CKCWM12-11-10/TXL
