Plug-In Junction Boxes
![](plug_i29.jpg) |
These plug-In Junction
Boxes offer a really neat, quick and secure solution not only for 24V power
distribution to equipment but also return switch signals for up to 8
sensors. Using an
M23 Cordset (supplied separately) and using
M12 Cordsets for the outlets, the
correct connection is made every time and an IP67 degree of
protection obtained. |
![](plug_i30.jpg)
![](plug_i31.jpg)
|
![](plug_i32.jpg) |
|
|
Poles |
Supply Pins |
LED |
Diagram |
Ident No |
Type |
3+PE |
12 |
No |
1 |
6611900 |
TB-4M12-4-CS12T |
4+PE |
19 |
No |
2 |
6611901 |
TB-4M12-5-CS19T |
3+PE |
12 |
LED, YE |
3 |
6611902 |
TB-4M12-4P2-CS12T |
4+PE |
19 |
LED, YE |
4 |
6611903 |
TB-4M12-5P3-CS19T |
![](plug_i34.jpg) |
3+PE |
12 |
No |
1 |
6611956 |
TB-4M12-4-CS12H |
4+PE |
19 |
No |
2 |
6611957 |
TB-4M12-5-CS19H |
3+PE |
12 |
LED, YE |
3 |
6611958 |
TB-4M12-4P2-CS12H |
4+PE |
19 |
LED, YE |
4 |
6611959 |
TB-4M12-5P3-CS19H |
![](plug_i35.jpg) |
3+PE |
12 |
No |
1 |
6611920 |
TB-6M12-4-CS12T |
4+PE |
19 |
No |
2 |
6611921 |
TB-6M12-5-CS19T |
3+PE |
12 |
LED, YE |
3 |
6611922 |
TB-6M12-4P2-CS12T |
4+PE |
19 |
LED, YE |
4 |
6611923 |
TB-6M12-5P3-CS19T |
![](plug_i36.jpg) |
3+PE |
12 |
No |
1 |
6611960 |
TB-6M12-4-CS12H |
4+PE |
19 |
No |
2 |
6611961 |
TB-6M12-5-CS19H |
3+PE |
12 |
LED, YE |
3 |
6611962 |
TB-6M12-4P2-CS12H |
4+PE |
19 |
LED, YE |
4 |
6611963 |
TB-6M12-5P3-CS19H |
|
3+PE |
12 |
No |
1 |
6611940 |
TB-8M12-4-CS12T |
4+PE |
19 |
No |
2 |
6611941 |
TB-8M12-5-CS19T |
3+PE |
12 |
LED, YE |
3 |
6611942 |
TB-8M12-4P2-CS12T |
4+PE |
19 |
LED, YE |
4 |
6611943 |
TB-8M12-5P3-CS19T |
|
3+PE |
12 |
No |
1 |
6611964 |
TB-8M12-4-CS12H |
4+PE |
19 |
No |
2 |
6611965 |
TB-8M12-5-CS19H |
3+PE |
12 |
LED, YE |
3 |
6611966 |
TB-8M12-4P2-CS12H |
4+PE |
19 |
LED, YE |
4 |
6611967 |
TB-8M12-5P3-CS19H |

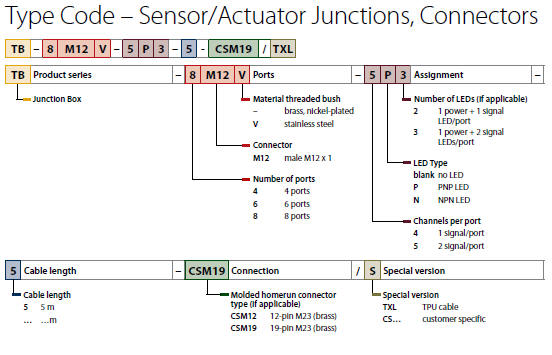

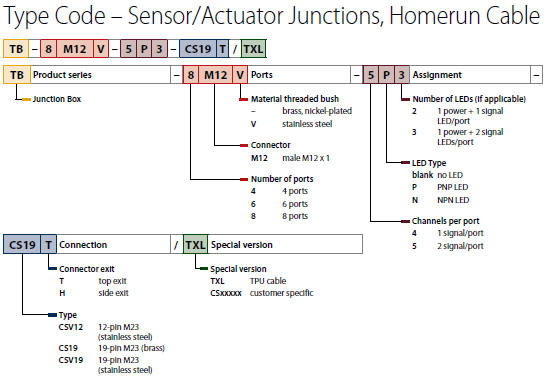

Meaning of Type Code
![](plug_i77.jpg)
![](plug_i1.jpg)
Wiring Diagrams
|
