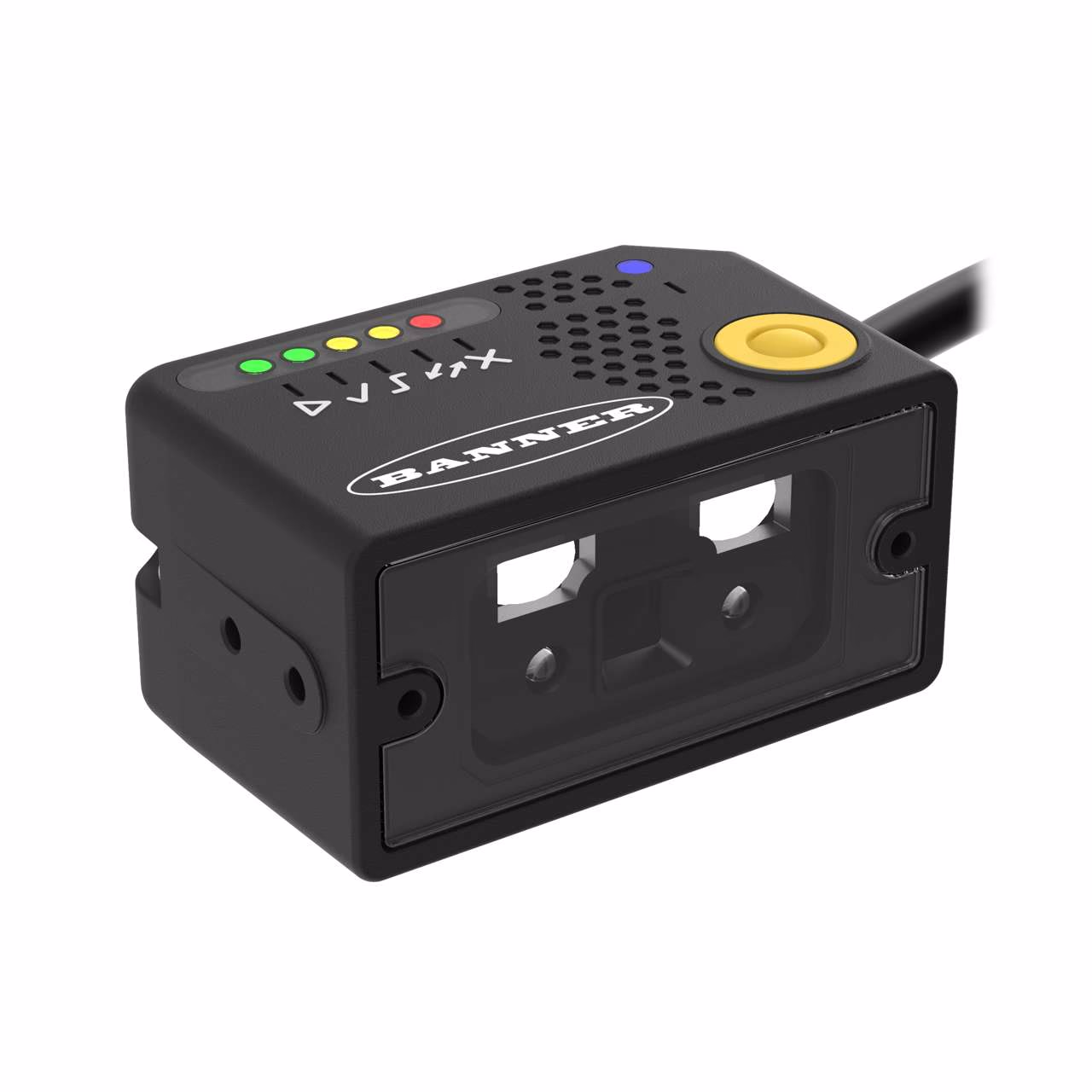

ABR Barcode Series – Banner – ABR3106-WSU1
ABR Series Barcode Reader
Resolution: 1280×960 pixels; Lens: 6 mm; Light: White
USB & Serial Communications; 1D Codes Only
| Autofocus | No |
|---|---|
| Camera Housing Size (HxWxL mm) | 24 x 45 x 30 |
| Code Type | 1D |
| FTP | No |
| Image Resolution | 1280 x 960 pixels |
| Imager Type | Grayscale |
| Lens (mm) | 6 |
| Light Color | White |
| PCCC | No |
| RS-422 | Yes |
| Device type | Imager BCR |
| EtherNet/IP | No |
| Feature | PC Interface |
| Item Status | RELEASED |
| Network protocol | No |
| PROFINET | No |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| RS-232 | Yes |
| USB | Yes |
Description
ABR Series Barcode Reader
Resolution: 1280×960 pixels; Lens: 6 mm; Light: White
USB & Serial Communications; 1D Codes Only
