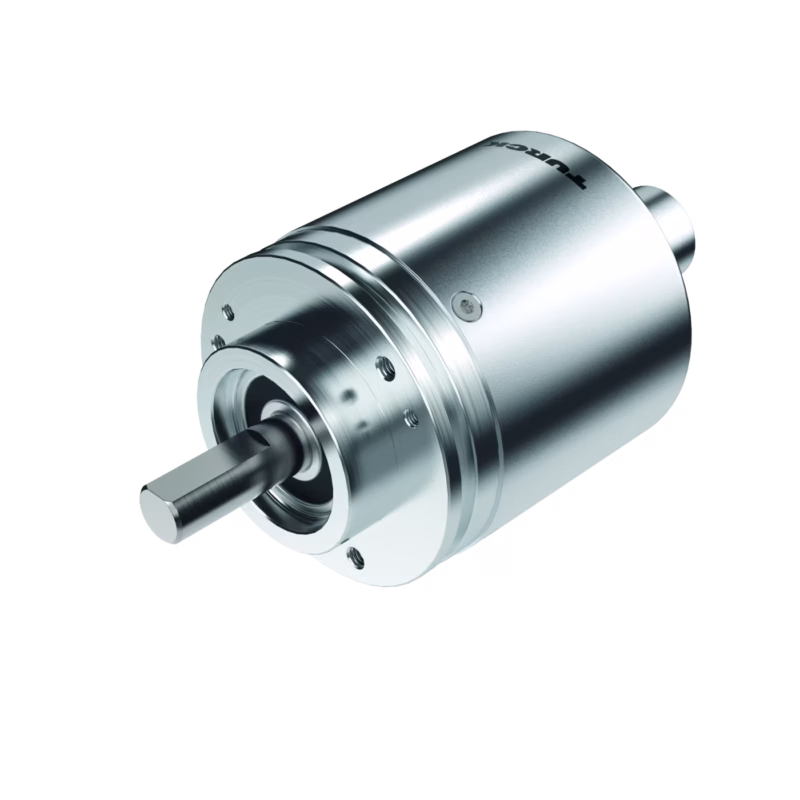

Absolute Rotary Encoder – Multiturn REM-E-105T10C-9E43B-B3M12
Absolute Rotary Encoder – Multiturn
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Communication protocol | PROFINET |
| Connector type | 3 x M12 |
| Design | Solid shaft |
| Electrical output | Connector |
| Housing material | Aluminium |
| Measuring principle | Optical |
| Output type | Absolute multiturn |
| Protection class | IP64 |
| Encoder line | Efficiency-Line |
| Flange diameter (mm) | 58 |
| Flange type | Clamping flange |
| Protection class shaft | IP64 |
| Shaft diameter D (mm) | 10 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
