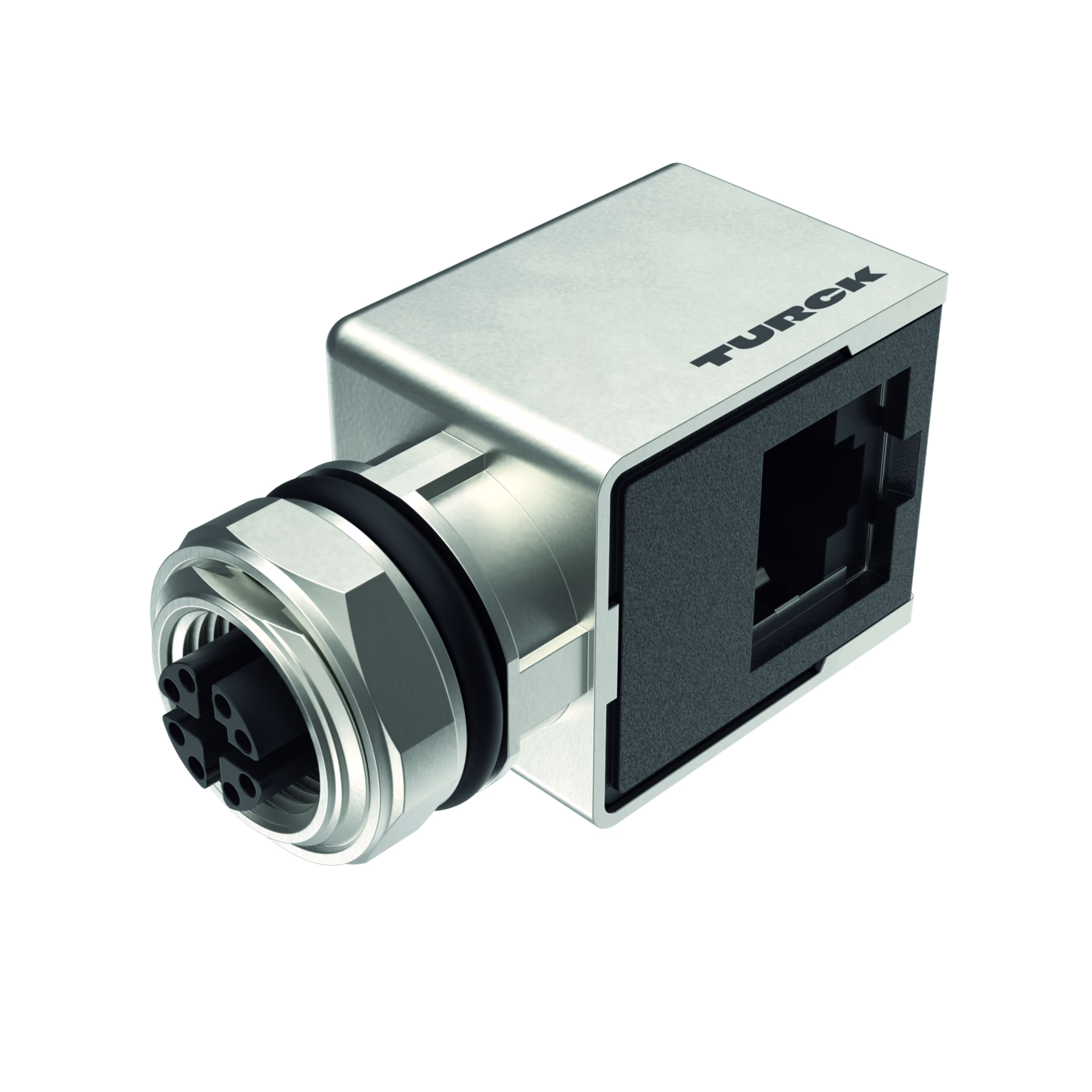

Accessories for Fieldbus Systems, Industrial Ethernet FKFDSX-RJ45SFW-88
Accessories for Fieldbus Systems, Industrial Ethernet
| Accessory type | Adapter |
|---|---|
| Application | Data |
| Approvals | UL Listed |
| Connector A | Female, M12×1, Straight, X-coded |
| Connector B | Angled, Female, RJ45 |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 0.5 |
| Device type | Adapter, Wall feedthrough |
| Number of pins | 8 |
| Plug body | Plastic |
| Voltage output | 48 |
