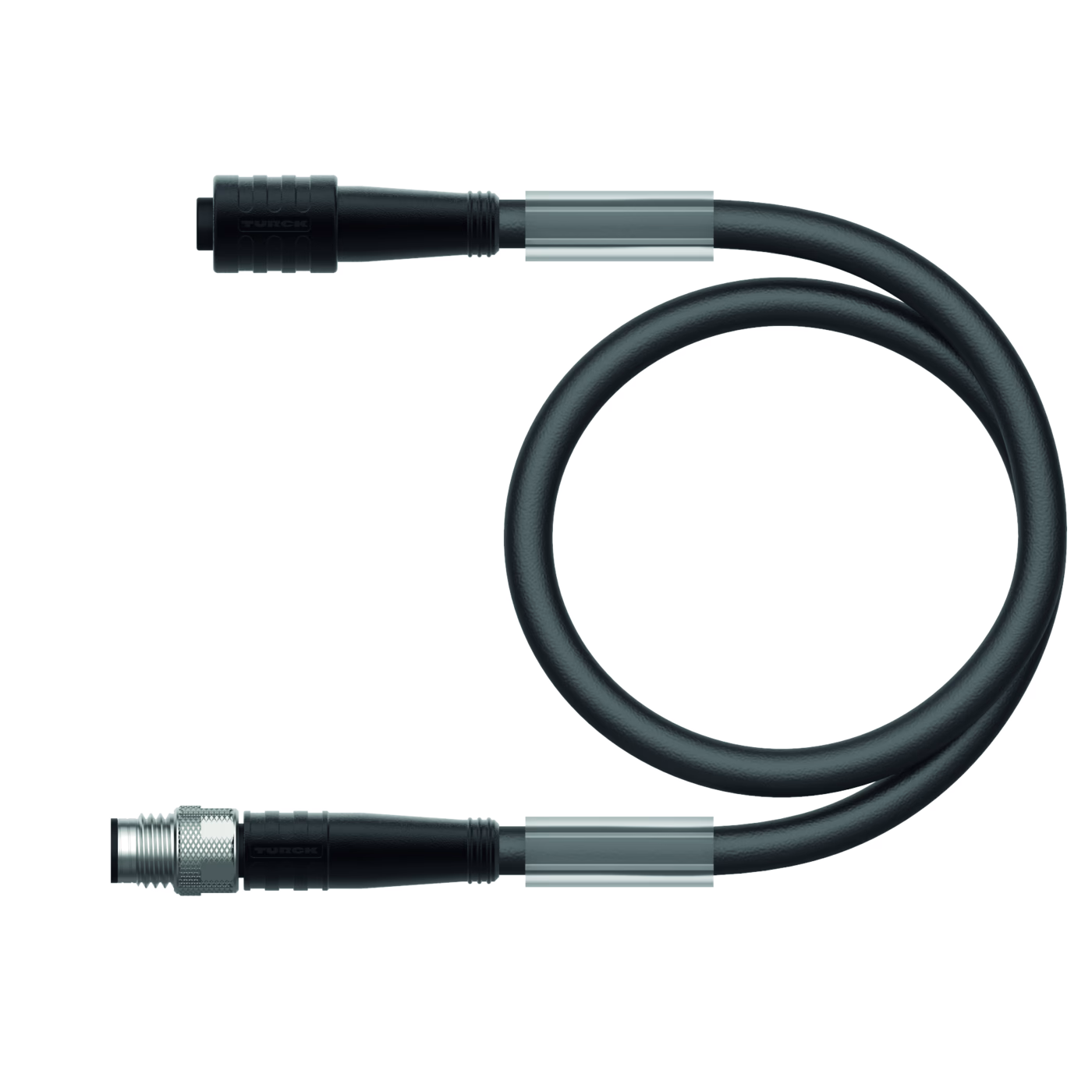

Actuator and Sensor Cable, PVC PKG3Z-0.3-PSG3M/TEL
Actuator and Sensor Cable, PVC
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -5 |
| Application | Signal |
| Approvals | cULus |
| Cable color | Black |
| Cable diameter (mm) | 4.3 |
| Cable length (m) | 0.3 |
| Cable quality | PVC |

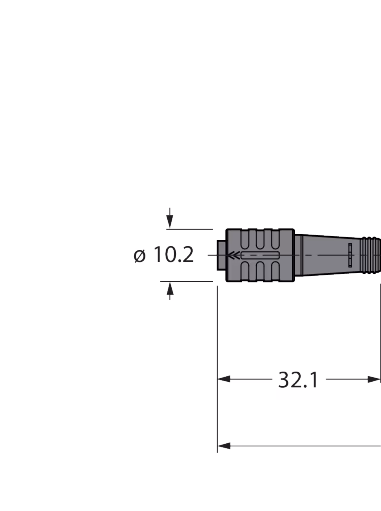

| Connector A | Female, Ø 8 mm, Straight |
| Connector B | M8×1, Male, Straight |
| Coupling nut/screw material B | Brass |
| Current (A) | 4 |
| Design | Extension Cable |
| Number of Conductors | 3 |
| Number of pins | 3 |
| Plug body | Plastic |
| Core cross section mm? | 0.34 |
