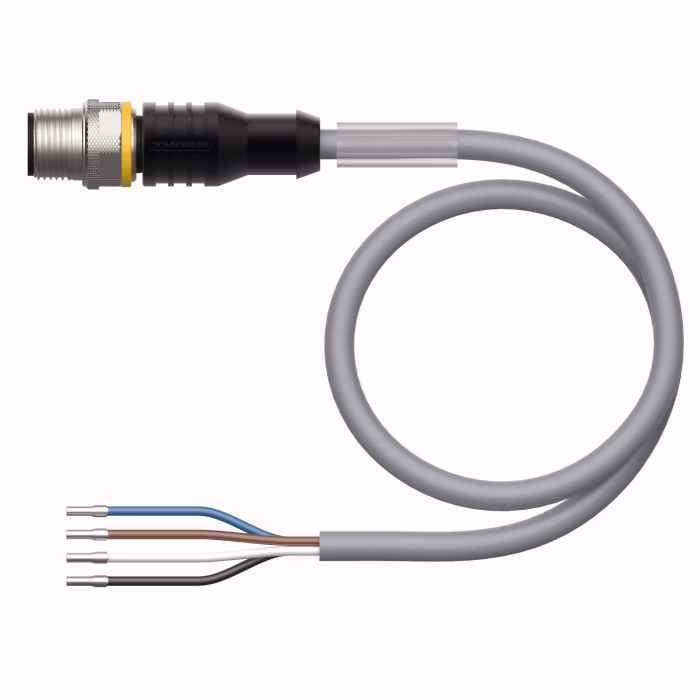

Actuator and Sensor Cable, PVC RSC4.4T-1/TEG
Actuator and Sensor Cable, PVC
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -5 |
| Application | Signal |
| Approvals | cULus |
| Cable color | Gray |
| Cable length (m) | 1 |
| Cable quality | PVC |

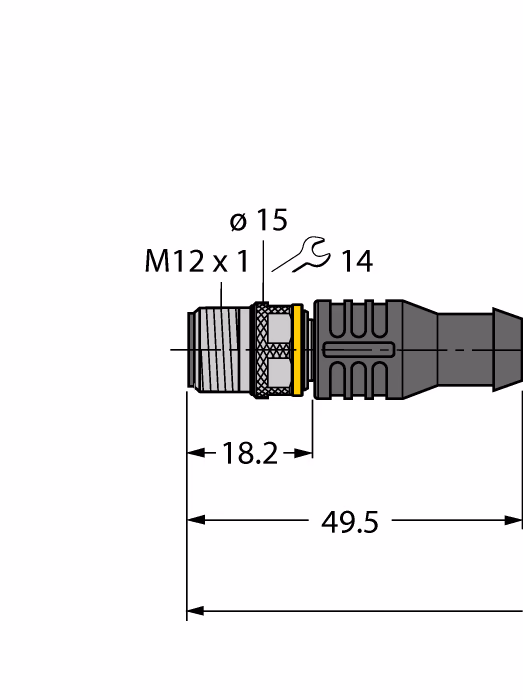

| Connector A | A-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Current (A) | 4 |
| Design | Connection Cable |
| Number of Conductors | 4 |
| Number of pins | 4 |
| Voltage output | 250 |
| Core cross section mm? | 0.34 |
