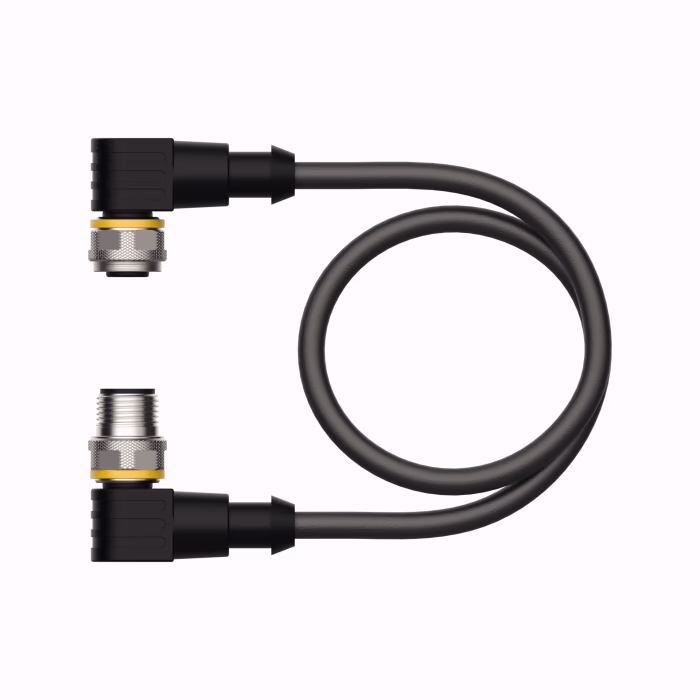

Actuator and Sensor Cable, PVC WKC4T-0.3-WSC4T/TEL
Actuator and Sensor Cable, PVC
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -5 |
| Application | Signal |
| Approvals | cULus |
| Cable color | Black |
| Cable length (m) | 0.3 |
| Cable quality | PVC |
| Connector A | A-coded, Angled, Female, M12×1 |
| Connector B | A-coded, Angled, M12×1, Male |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 4 |
| Design | Extension Cable |
| Number of Conductors | 3 |
| Number of pins | 3 |
| Voltage output | 250 |
| Core cross section mm? | 0.34 |
