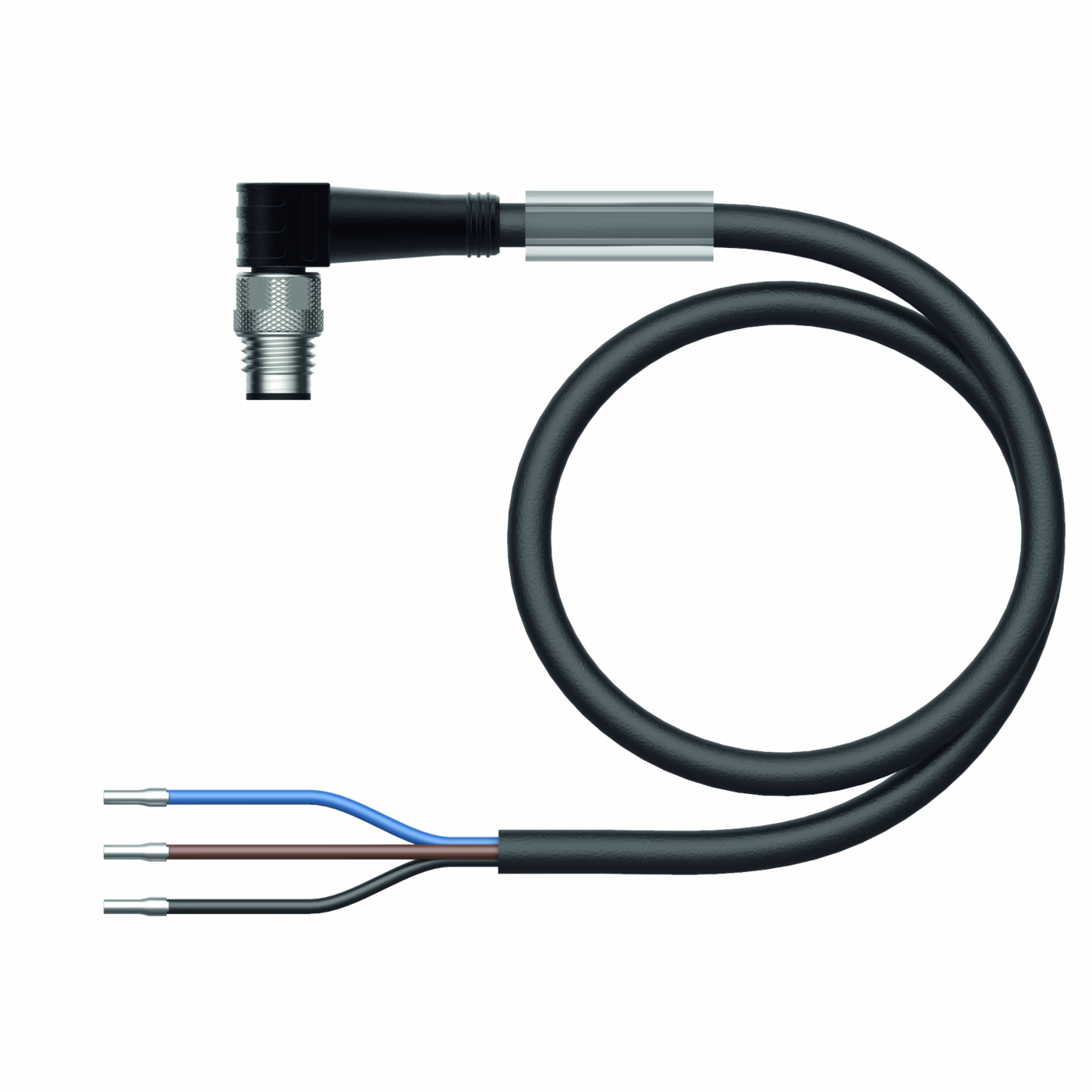

Actuator and Sensor Cable Suitable for Use with Robots PSW3M-2/TRL
Actuator and Sensor Cable Suitable for Use with Robots
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Signal |
| Approvals | CE, cULus, UKCA |
| Cable color | Black |
| Cable diameter (mm) | 4.1 |
| Cable length (m) | 2 |
| Cable quality | PUR |
| Connector A | Angled, M8×1, Male |
| Coupling nut/screw material A | Brass |
| Current (A) | 4 |
| Design | Connection Cable |
| Number of Conductors | 3 |
| Number of pins | 3 |
| Plug body | Plastic |
| Special features | Suitable for use with robots |
| Core cross section mm? | 0.34 |
