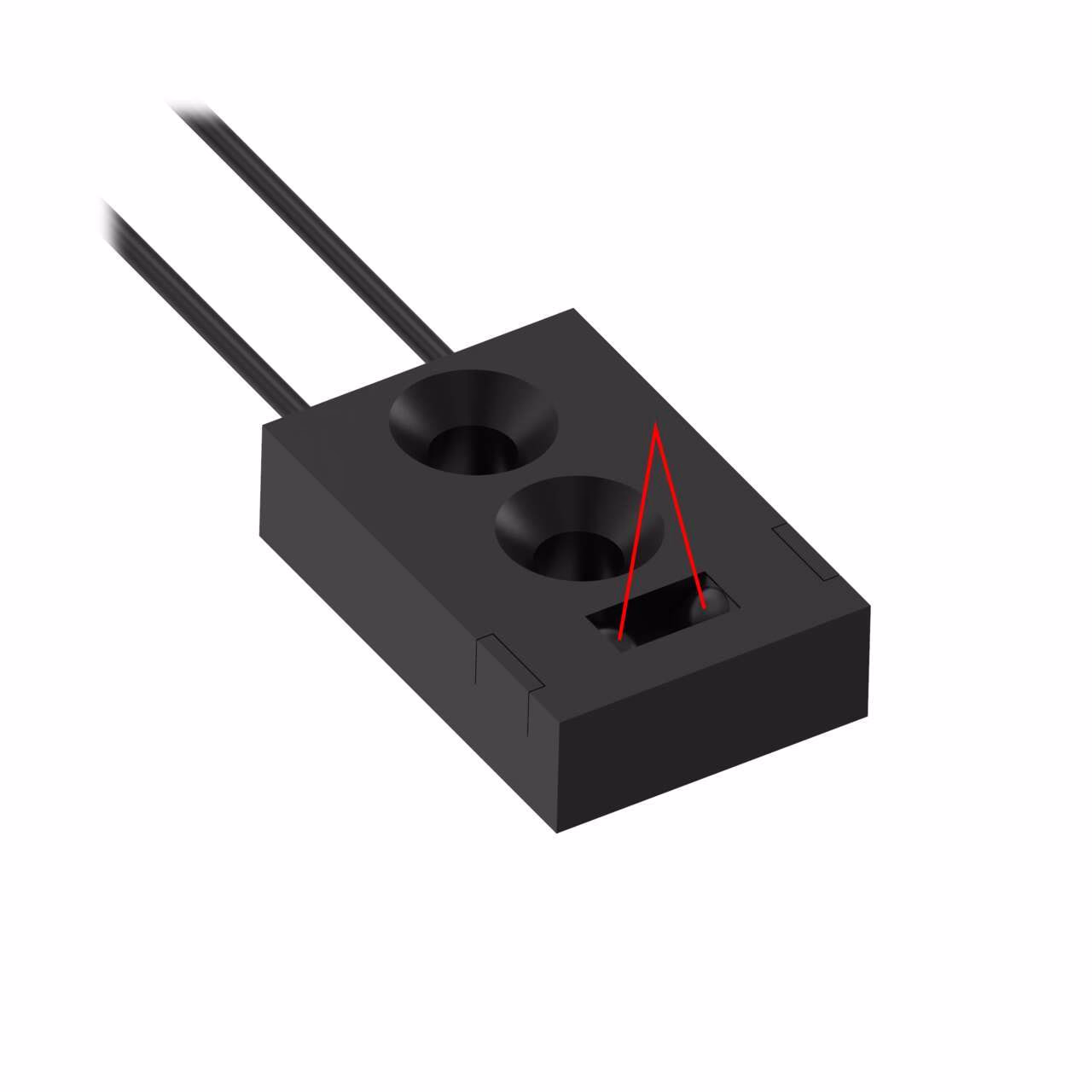

Angle Fiber Optics – Banner – P32-C6
Plastic Fiber, Convergent Distance 6 mm
Side Exit
Flat Pack Plastic Housing
2 m Fiber Length
Free Cut
| Beam Exit | Right Angle |
|---|---|
| Fiber Sensing End Size | 13.0 x 19.7 mm |
| Fiber Sensing End Size - Mounting Area | 13.0 x 19.7 mm |
| Fiber Sensing End Tip | Sideview |
| Max Distance: DF-G2 (mm) | No Data |
| Minimum Repeat Bending Endurance | 1000 |
| Sensing End Material (Specific) | Polyethylene |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Sideview |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Convergent |
| Core cross section mm? | 19 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Flex Relief | No |
| Housing Style | Rectangular |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Free Cut |
| Tariff Fiber Meters (fbm) | 4 |
| Max Temp (C) | 70 |
| Fiber Length (m) | 2 |
| Core Diameter (mm) | 0.5 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Plastic Fiber, Convergent Distance 6 mm
Side Exit
Flat Pack Plastic Housing
2 m Fiber Length
Free Cut
