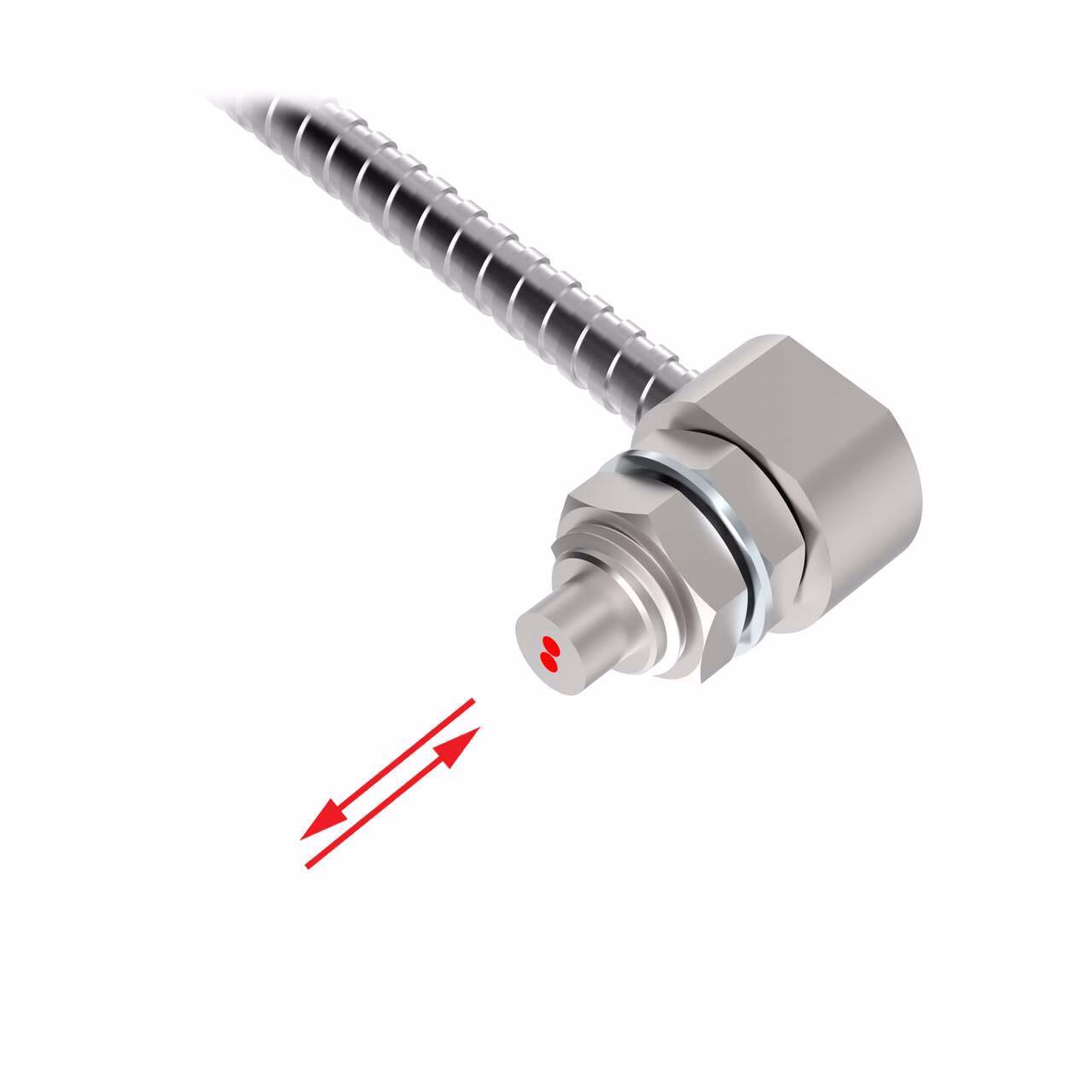

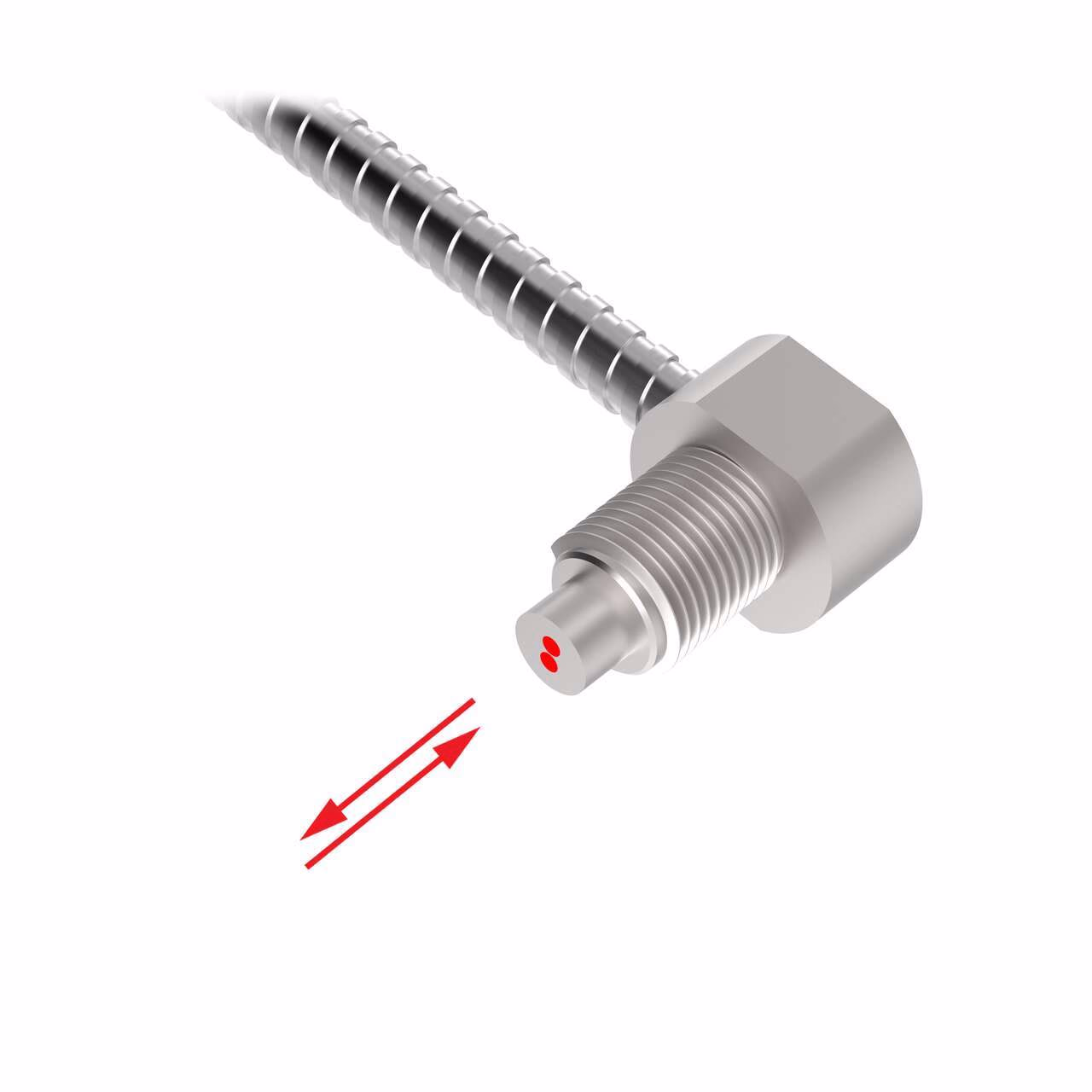

Angle Fiber Optics – Banner – PBAT43TSL5TA-VL
Plastic Fiber, Diffuse Reflective
Core Dia.: 1 mm; Fiber Length 1 m
Right-Angle, Thread M6
Stainless Protective Jacket
25 mm Bend Radius
Vantage Line
| Beam Exit | Right Angle |
|---|---|
| Fiber Sensing End Size | 4.0 mm |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Sensing End Tip | Ferrule |
| Max Distance: DF-G2 (mm) | 434 |
| Max Range: DF-G3 (mm) | >1m – <=3m |
| Minimum Repeat Bending Endurance | 1000.0 |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Angle |
| Sensing End Segment 2 | Thread |
| Sensing End Segment 3 | Ferrule |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 25.0 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 2.0 |
| Max Temp (C) | 70.0 |
| Fiber Length (m) | 1.0 |
| Core Diameter (mm) | 1 |
| Max Distance: DF-G1 (mm) | 268 |
| Max Distance: DF-G3 (mm) | 2084 |
| Measured Max Distance (mm) | 268 |
Description
Plastic Fiber, Diffuse Reflective
Core Dia.: 1 mm; Fiber Length 1 m
Right-Angle, Thread M6
Stainless Protective Jacket
25 mm Bend Radius
Vantage Line
