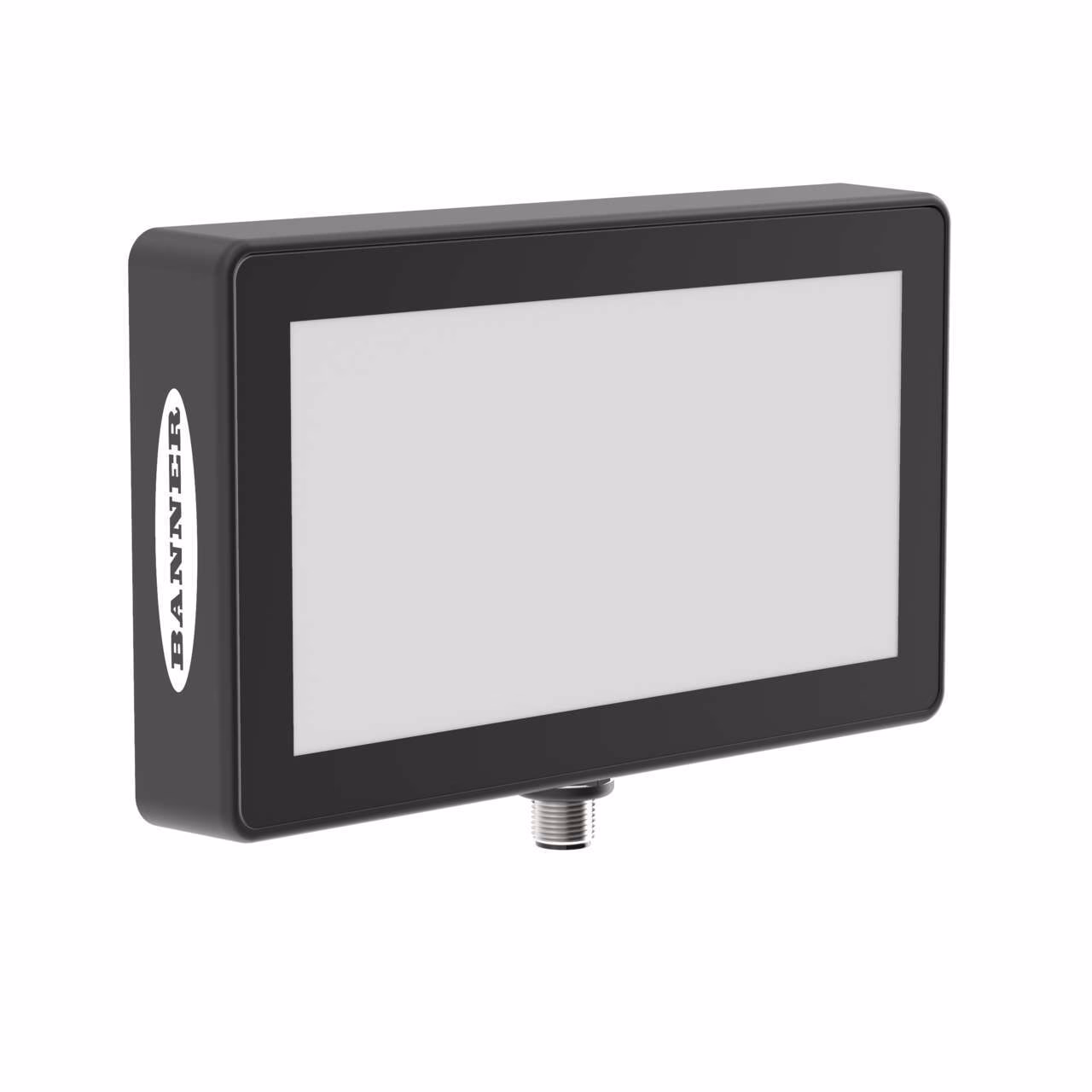

Backlights – Banner – LEDIB75X150PW2-XQ
Vision Light – 75 x 150 mm Backlight IP67
Infrared LED – 24 V dc
Requires Cordset MQDC20xx-xxx
| Color | Infrared |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| QD Type/Cable Length | M12; requires mating cordset |
| Window Material | Acrylic |
| Device type | Backlight |
| EPLAN Original Sent Date | 12/18/2025 |
| EPLAN Status | Pending Publish |
| Feature | Quick Disconnect |
| Housing Style | Rectangular |
| Item Status | RELEASED |
| Number of Conductors | 5.0 |
| Physical Dimensions (LxWxH or DxH mm) | 180.1 x 105.1 x 25.5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Voltage supply connection | Integral QD |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 550.0 |
Description
Vision Light – 75 x 150 mm Backlight IP67
Infrared LED – 24 V dc
Requires Cordset MQDC20xx-xxx
