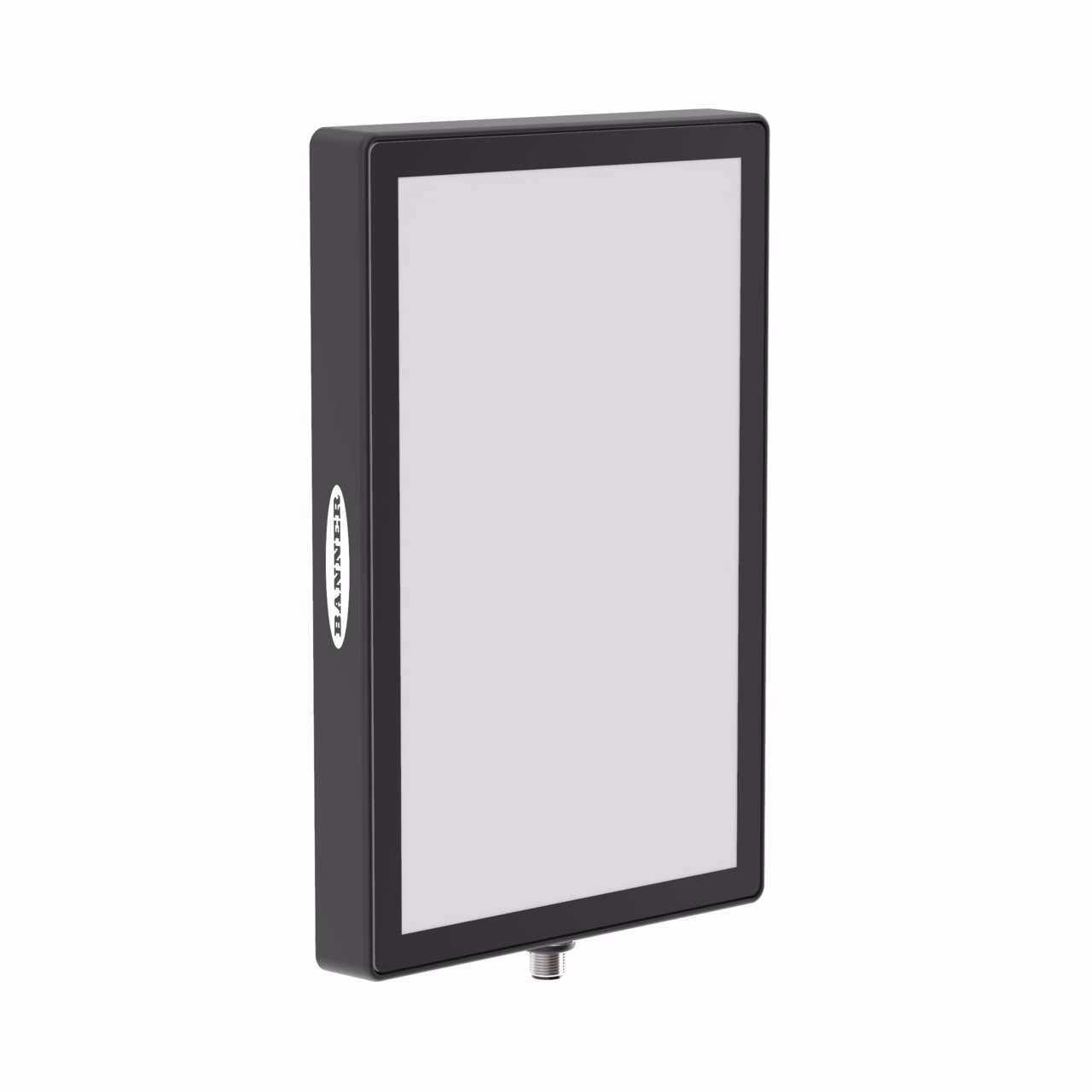

Backlights – Banner – LEDWB225X150PW2-XQ
Vision Light – 225 x 150 mm Backlight IP67
Visible White LED – 24 V dc
Requires Cordset MQDC20xx-xxxMM
| Color | White |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| QD Type/Cable Length | M12; requires mating cordset |
| Window Material | Acrylic |
| Device type | Backlight |
| Feature | Quick Disconnect |
| Housing Style | Rectangular |
| Item Status | RELEASED |
| Number of Conductors | 5.0 |
| Physical Dimensions (LxWxH or DxH mm) | 180.0 x 272.7 x 24.5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Voltage supply connection | Integral QD |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 1650.0 |
Description
Vision Light – 225 x 150 mm Backlight IP67
Visible White LED – 24 V dc
Requires Cordset MQDC20xx-xxxMM
