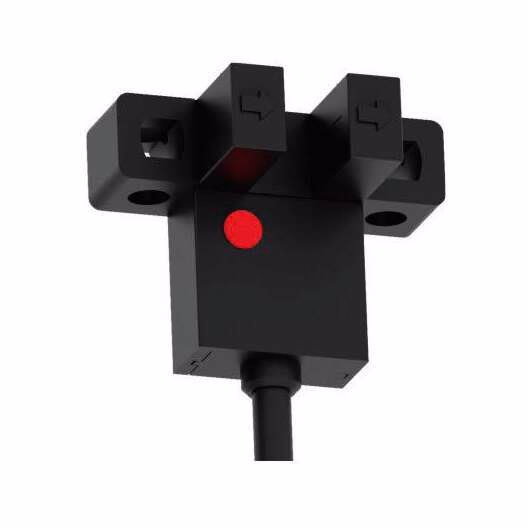

Banner – BCEE-SX672R-RP-2M
BCEE Slot Sensor
T Shape; Slot Width: 5 mm; Input: 24 V dc
Output: Dark Operate, NO, 1 PNP
3-wire, 2 m cable
| Connection | Cable |
|---|---|
| Max Sensing Range (mm) | 5.0 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 5-24 V dc |
| Connection technology signal | Emitter/Receiver Pair |
| Homerun Exit Location | 0.5 |
| Housing Style | Slot |
| Indicator | Visible Red LED |
| Item Status | RELEASED |
| Number of measuring axes | 2 x 0.8 |
| Number of pins | 3 |
| Operation | Dark Operate |
| Protection class shaft | IP54 |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 1 |
| Min Op. Temperature (C) | -25.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Op. Temperature (C) | 55.0 |
| Max op. relative humidity (%).1 | 85% @ 55°C |
| Slot Overall Depth (mm) | 25.4 |
| Slot Depth/Array Length (mm) | 9.0 |
Description
BCEE Slot Sensor
T Shape; Slot Width: 5 mm; Input: 24 V dc
Output: Dark Operate, NO, 1 PNP
3-wire, 2 m cable
