Banner – CSB-M1241DB9-HMI
M12 Quick Disconnect Splitter Cable
4-pin Straight Female M12 0.3 m (1 ft) Trunk
9-pin D-SUB Straight Male M12 525 mm (20.5 in) Branch 1
2-pin Cable 228 mm (9 in) Branch 2
Black Jacket, Nickel-Plated Brass Coupling Nuts
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | N/A, Female |
| Branches: Number of Contacts | Flying Lead, 9 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PVC Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Female |
| Trunk: Number of Contacts | 4.0 |
| Trunk: Orientation | Straight |

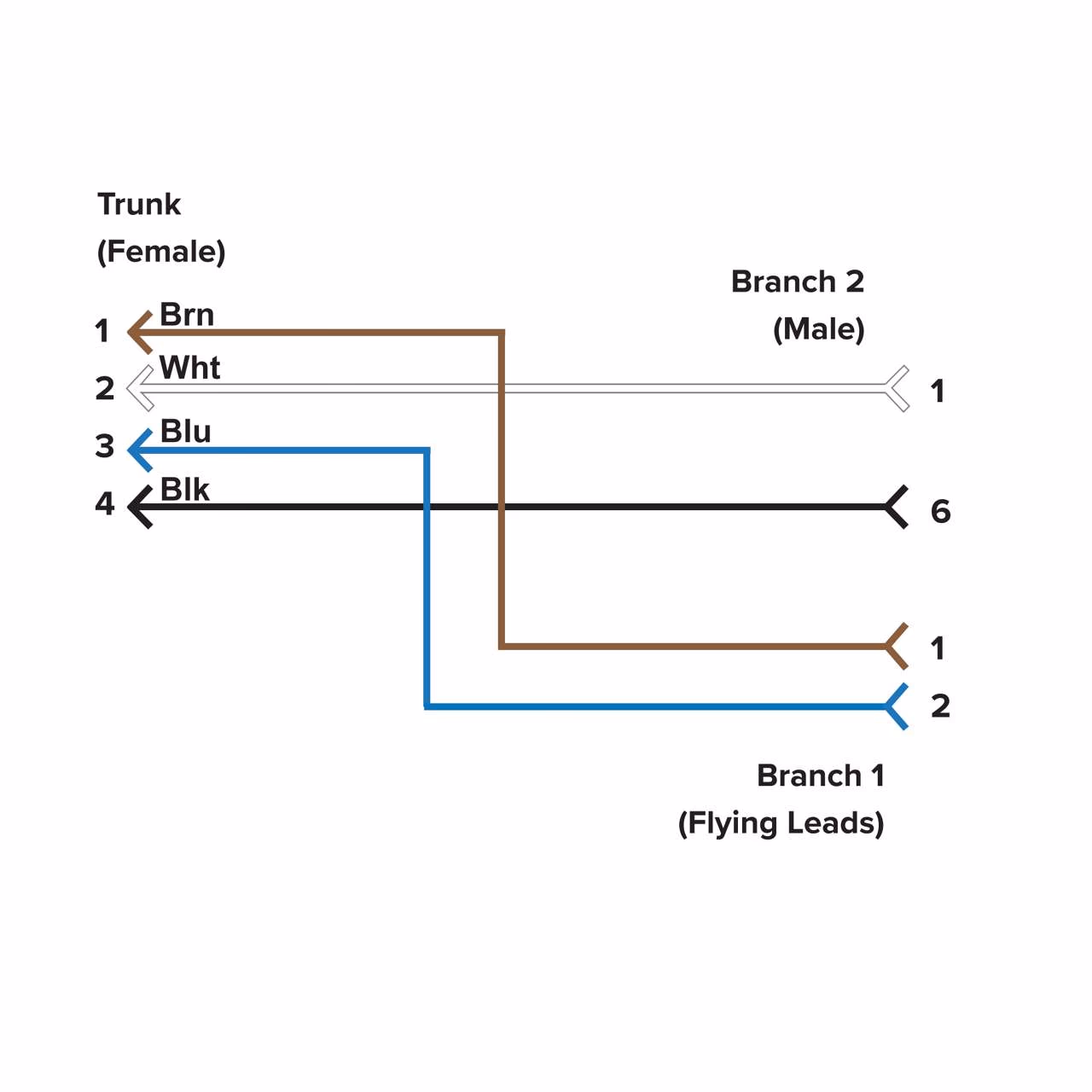

| Wiring | Custom |
| Cable quality | PVC |
| Current (A) | 4.0 |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Radiation direction | Straight, Straight |
| Maximum Temp. (Celsius) | 70.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.3 |
| Connector type.1 | Flying Lead, DB9 |
SKU:
814261
Category: BANNER Products
Description
M12 Quick Disconnect Splitter Cable
4-pin Straight Female M12 0.3 m (1 ft) Trunk
9-pin D-SUB Straight Male M12 525 mm (20.5 in) Branch 1
2-pin Cable 228 mm (9 in) Branch 2
Black Jacket, Nickel-Plated Brass Coupling Nuts
