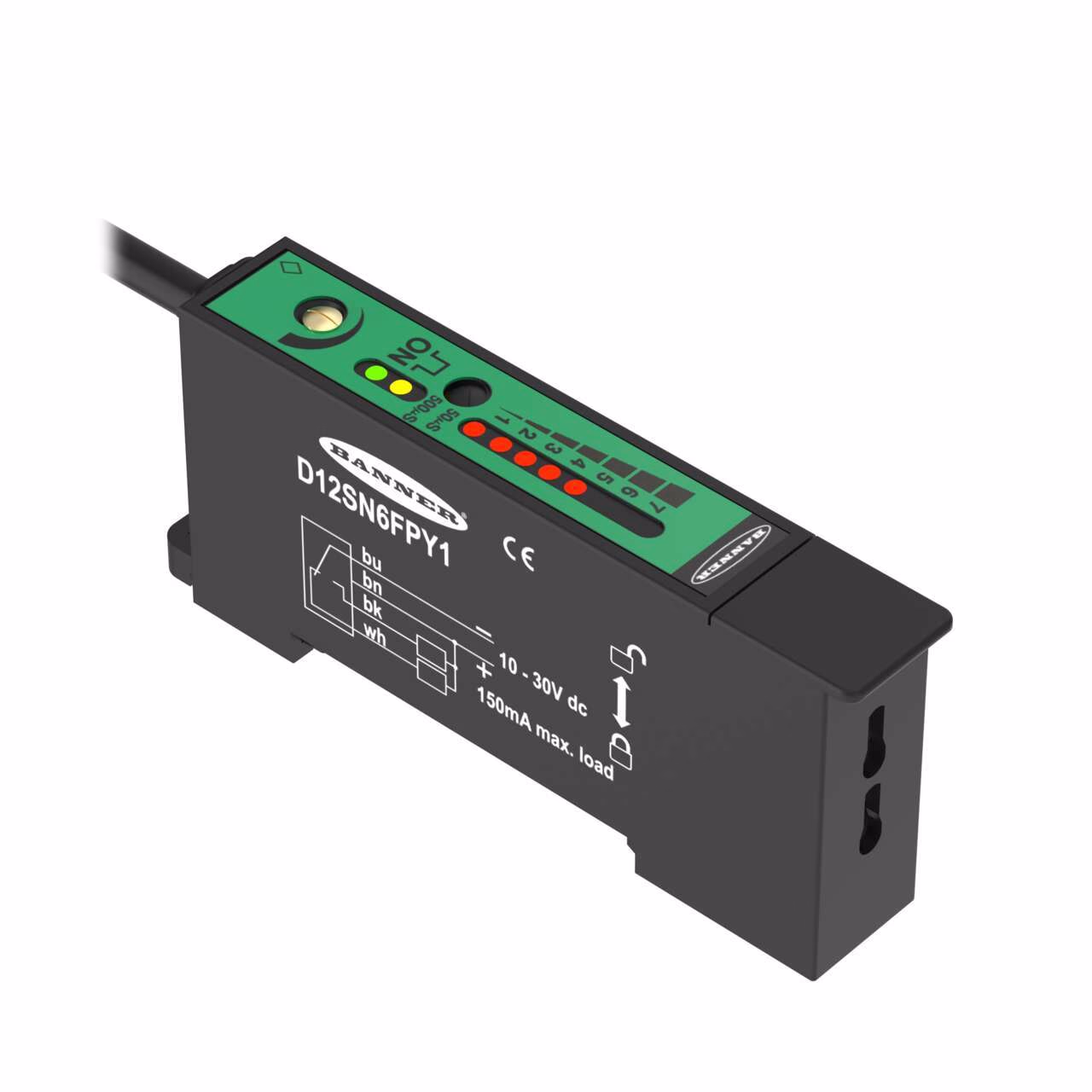

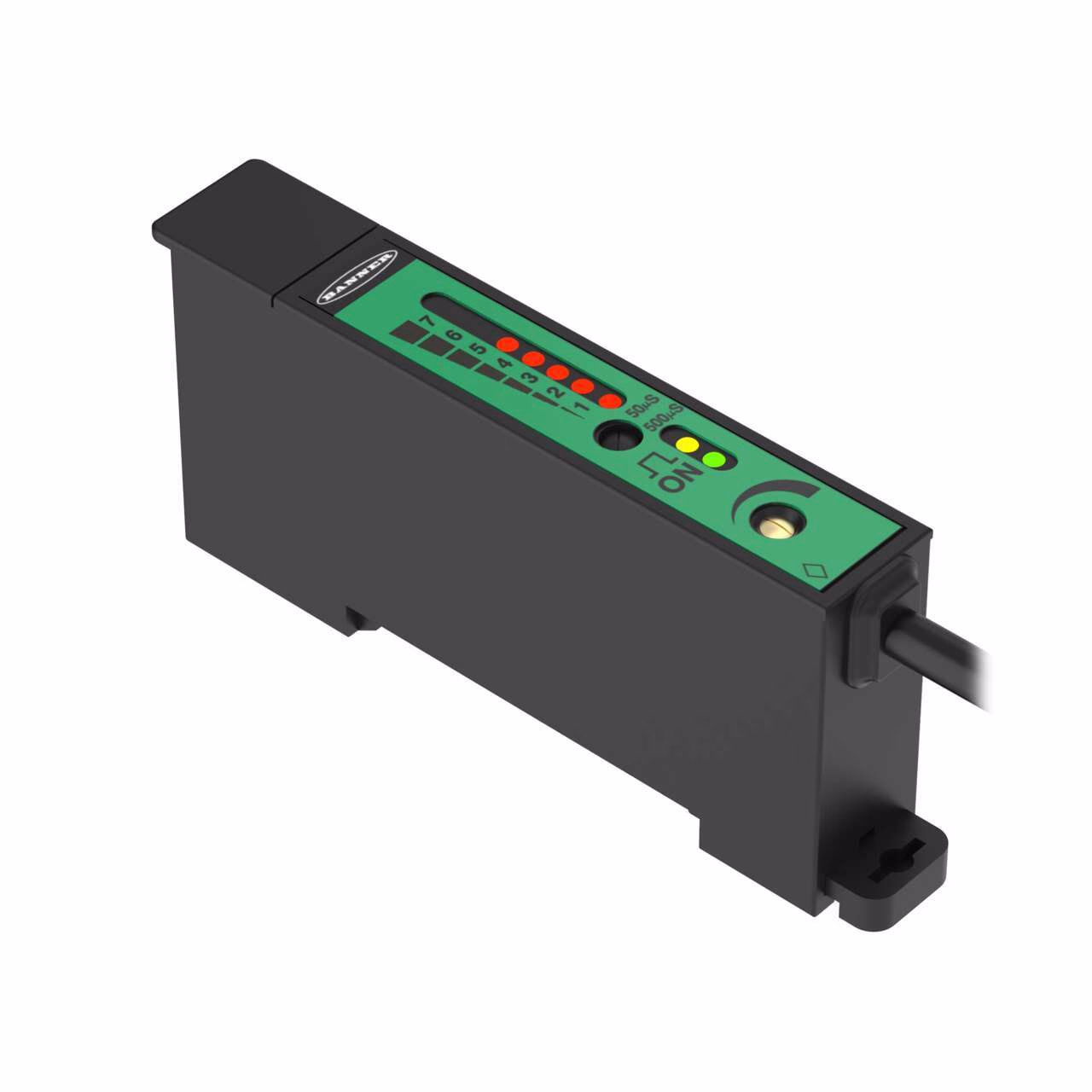

Banner – D12SN6FPY1
D12 Series: High Speed Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Complementary NPN 20 ms Pulse Stretch
2 m (6.5 ft) Cable
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Cable |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Bargraph |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Potentiometer |
| Feature | Timing (Hold/Delay) |
| Housing material | Thermoplastic |
| Housing Style | DIN Rail |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Power Good Output | DC |
| Protection class shaft | IP11 |
| Receptacle housing material B | Thermoplastic |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 2 |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100 |
| Max Op. Temperature (C) | 70 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Minimum Response Time (ms) | 0.05 |
| Setting option | NPN |
| Application.1 | Object Counting |
Description
D12 Series: High Speed Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Complementary NPN 20 ms Pulse Stretch
2 m (6.5 ft) Cable
