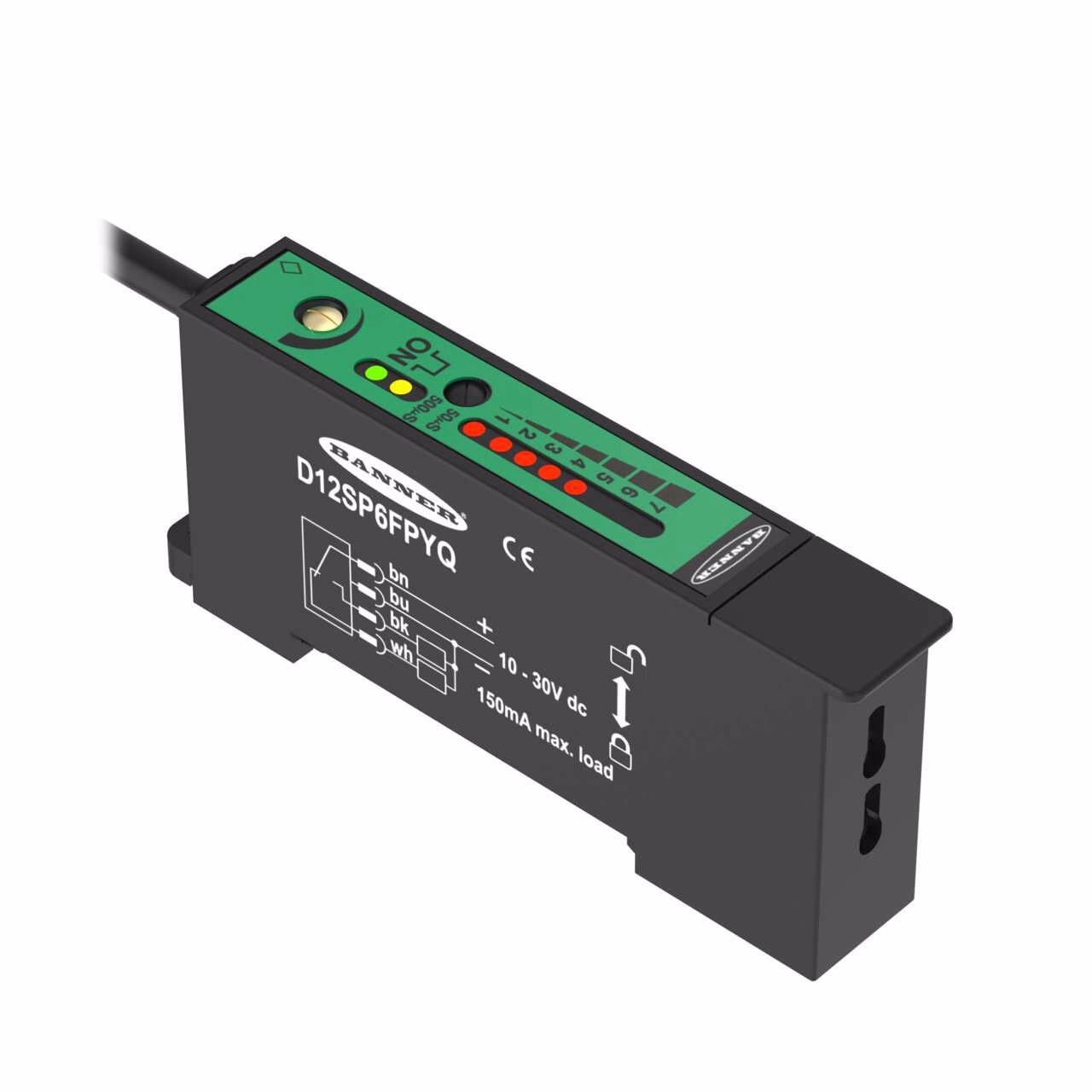

Banner – D12SP6FPYQ
D12 Series: High Speed Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Complementary PNP
150 mm (6 in) M8 Pigtail QD
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Bargraph |
| Max Op. Temperature [C] | 70 |
| Min Op. Temperature [?C] | -20 |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Potentiometer |
| Feature | Quick Disconnect |
| Housing material | Thermoplastic |
| Housing Style | DIN Rail |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP11 |
| Receptacle housing material B | Thermoplastic |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 0.15 |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 15 to 130 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Minimum Response Time (ms) | 0.05 |
| Setting option | PNP |
| Application.1 | Object Counting |
Description
D12 Series: High Speed Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Complementary PNP
150 mm (6 in) M8 Pigtail QD
