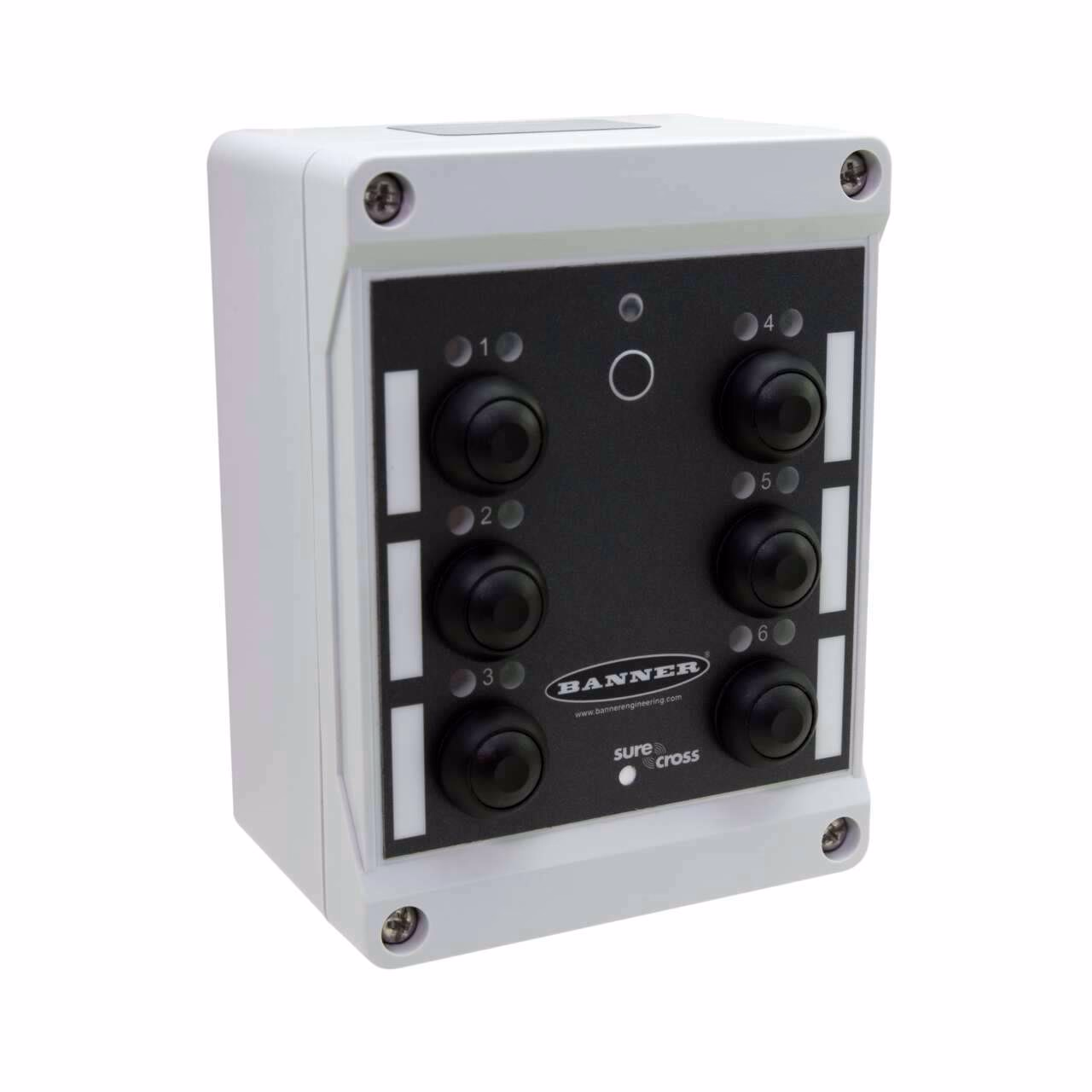

Banner – DX80N9Q120BL-RG
Wireless Q120 Pendant Node 900 MHz
Integrated Battery and 10-30 V dc power terminals
Six Independently Controlled Push Button Inputs
Six sets of Green and Red LED Indicator Lights
| 1-wire Serial Interface | No |
|---|---|
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 70 |
| Min Temp Operating Conditions (C) | -40 |
| Number of Buttons | 6 |
| Output Details | Twelve LED lights |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Relative Humidity | 90% at 50° C |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | Six Buttons |
| Device type | Push Button |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Mounting conditions | 6 Push Buttons |
| Operating voltage | D Cell Lithium Battery |
| Power Good Output | Flex Power |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Indicator Light |
Description
Wireless Q120 Pendant Node 900 MHz
Integrated Battery and 10-30 V dc power terminals
Six Independently Controlled Push Button Inputs
Six sets of Green and Red LED Indicator Lights
