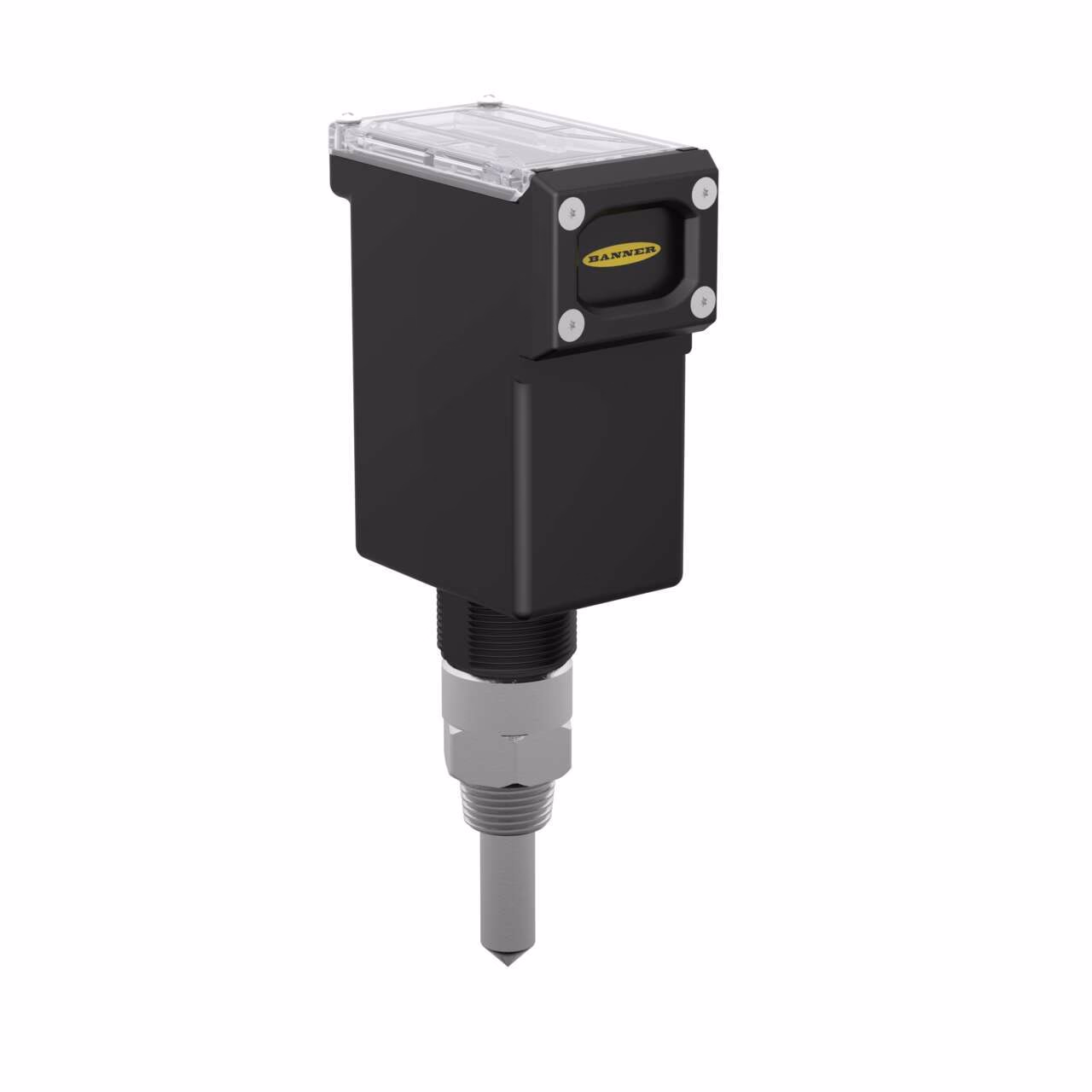

Banner – DX80N9Q45DEW
Wireless Q45 900 MHz
Integrated Dew Point Sensor
1/2 NPT Process fitting
D-Cell Battery Included
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | Yes |
| Banner Cloud ID | Yes |
| Condition Monitoring Sensor Type | Temperature, Humidity & Dew Point |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 70.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Connection mode | Temperature/Humidity/Dewpoint |
| Device type | Sensor and Node |
| EPLAN Original Sent Date | 03/26/2025 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Analog |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | D Cell Lithium Battery |
| Power Good Output | Battery |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| Application.1 | Relative Humidity Input, Temperature Input |
Description
Wireless Q45 900 MHz
Integrated Dew Point Sensor
1/2 NPT Process fitting
D-Cell Battery Included
