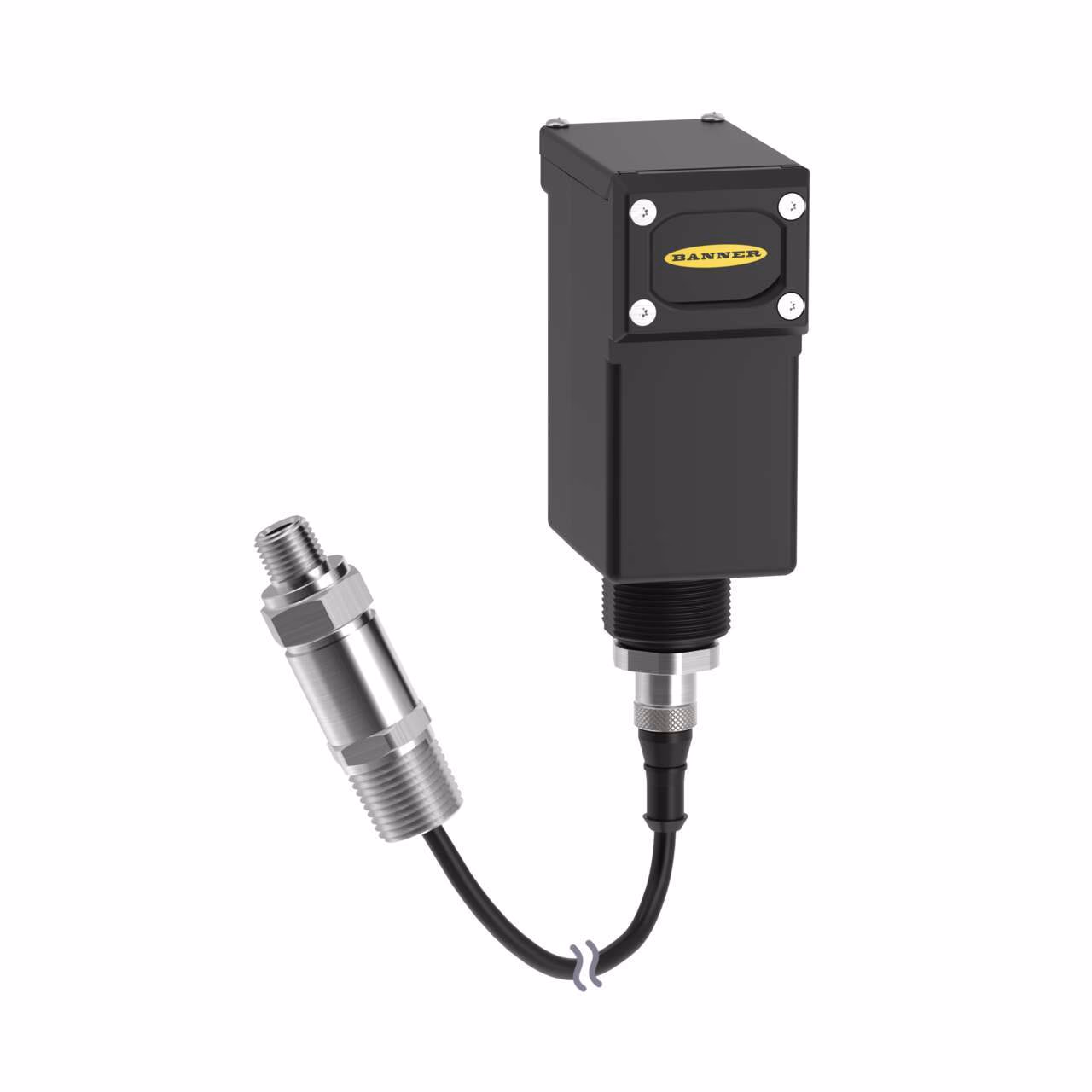

Banner – DX80N9Q45UPSD-PS150
Wireless Q45 900 MHz Node
Pre-Wired Female M12 QD for BWA-PRESSURE-SENSOR-150 (Sensor/Cable Assembly Included)
D-Cell Battery Included
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | Yes |
| Analog Outputs | No |
| Banner Cloud ID | Yes |
| Condition Monitoring Sensor Type | Pressure |
| Discrete Inputs | No |
| Discrete Outputs | No |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 70.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | 0-5 VDC |
| Device type | Sensor and Node |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Analog |
| Intrinsically Safe | No |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Modbus RTU | No |
| Operating voltage | D Cell Lithium Battery |
| Power Good Output | Battery |
| Pressure type | Yes |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Pressure Sensor Range (PSI) | 0-150 |
| Application.1 | Temperature Input |
Description
Wireless Q45 900 MHz Node
Pre-Wired Female M12 QD for BWA-PRESSURE-SENSOR-150 (Sensor/Cable Assembly Included)
D-Cell Battery Included
