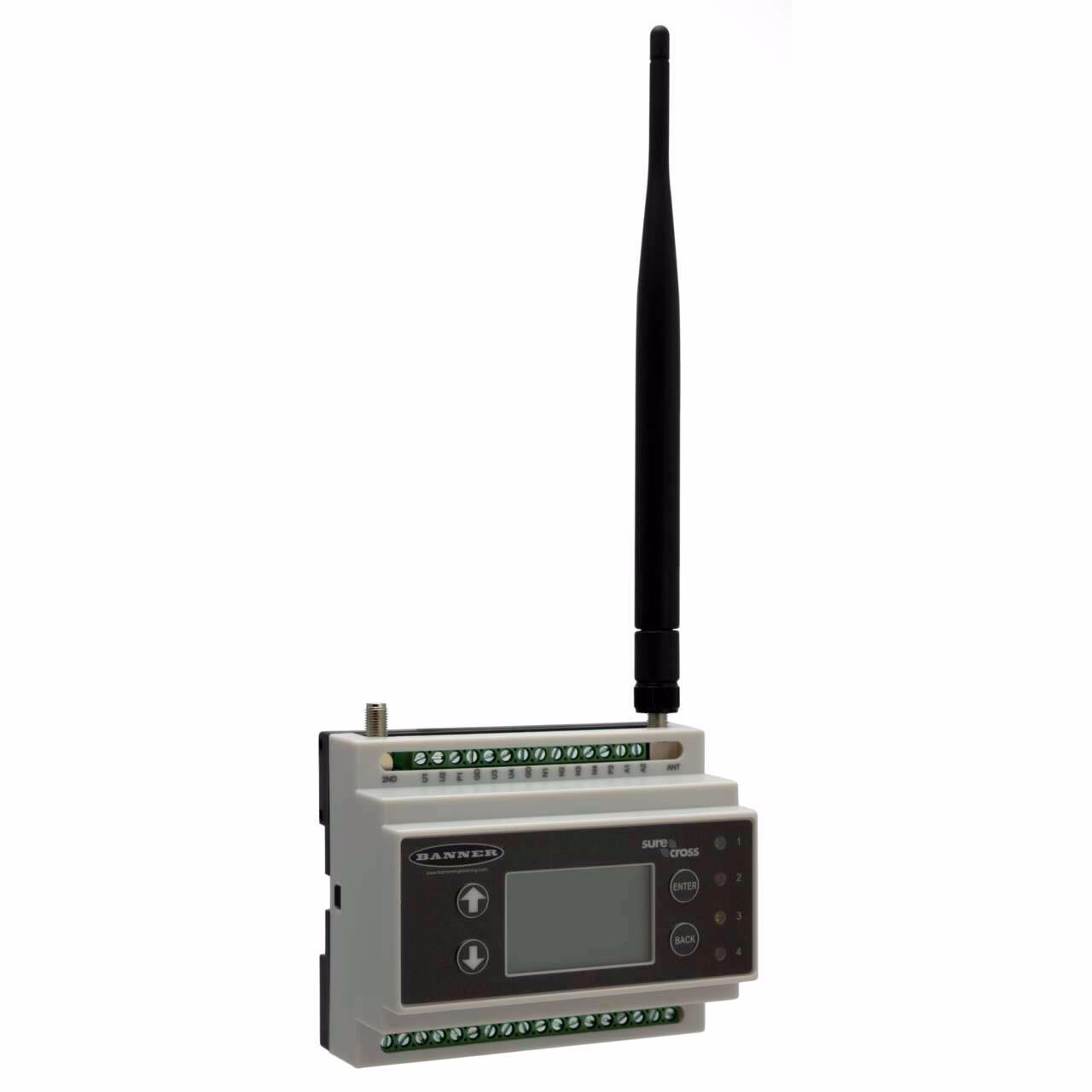

DXM100 Controller
DX80 Performance Gateway 900 MHz
Inputs: 4 Universal
Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power
SAM4 Processor, LCD Display
RS-485, Ethernet, USB, CAN, RS-232; Solar/Battery Controller
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | Yes |
| Analog Outputs | Yes |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| LCD Display | Yes |
| Max Operating Temperature (C) | 80.0 |
| Max Temp Operating Conditions (C) | 60.0 |
| Min Operating Temperature (C) | -20.0 |
| Min Temp Operating Conditions (C) | -20.0 |
| Output Details | 4 NMOS Discrete, 2 Selectable Analog |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Brazil, Canada, Korea, Thailand |
| Connection mode | 4 Universal Inputs |
| Device type | Wireless Controller with Performance Gateway |
| EtherNet/IP | Yes |
| Housing Style | External Terminals |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | Yes |
| RS-232 | Yes |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Ethernet Connector Type | RJ45 Jack |
| Dimension Length (mm) | 100.0 |
| On-Board Memory (MB) | 2.0 |
| Processing Speed (MHz) | 100.0 |
| Application.1 | Indicator Light |
| Options Available | Modbus |
Description
DXM100 Controller
DX80 Performance Gateway 900 MHz
Inputs: 4 Universal
Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power
SAM4 Processor, LCD Display
RS-485, Ethernet, USB, CAN, RS-232; Solar/Battery Controller
