Banner – DXM100-B2

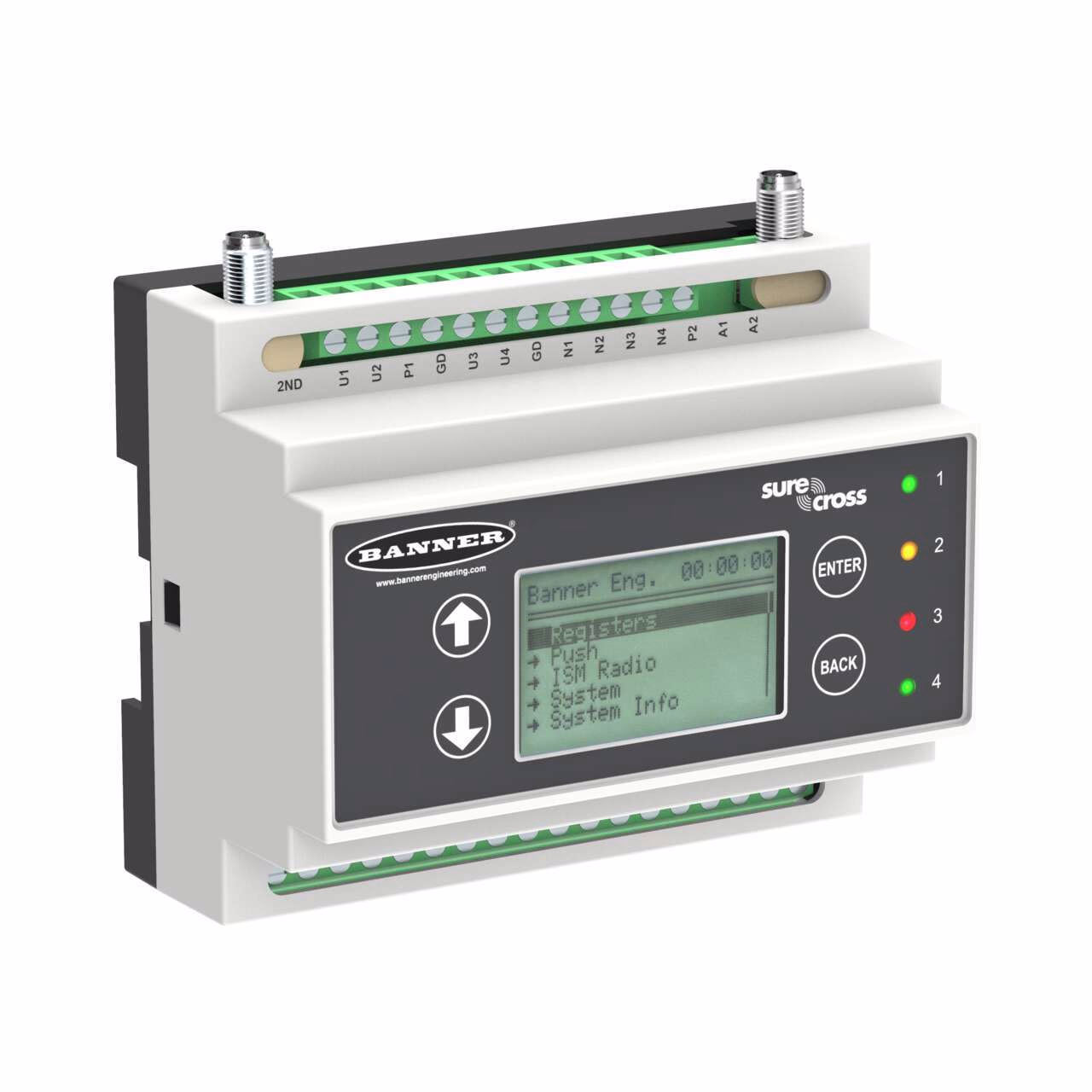

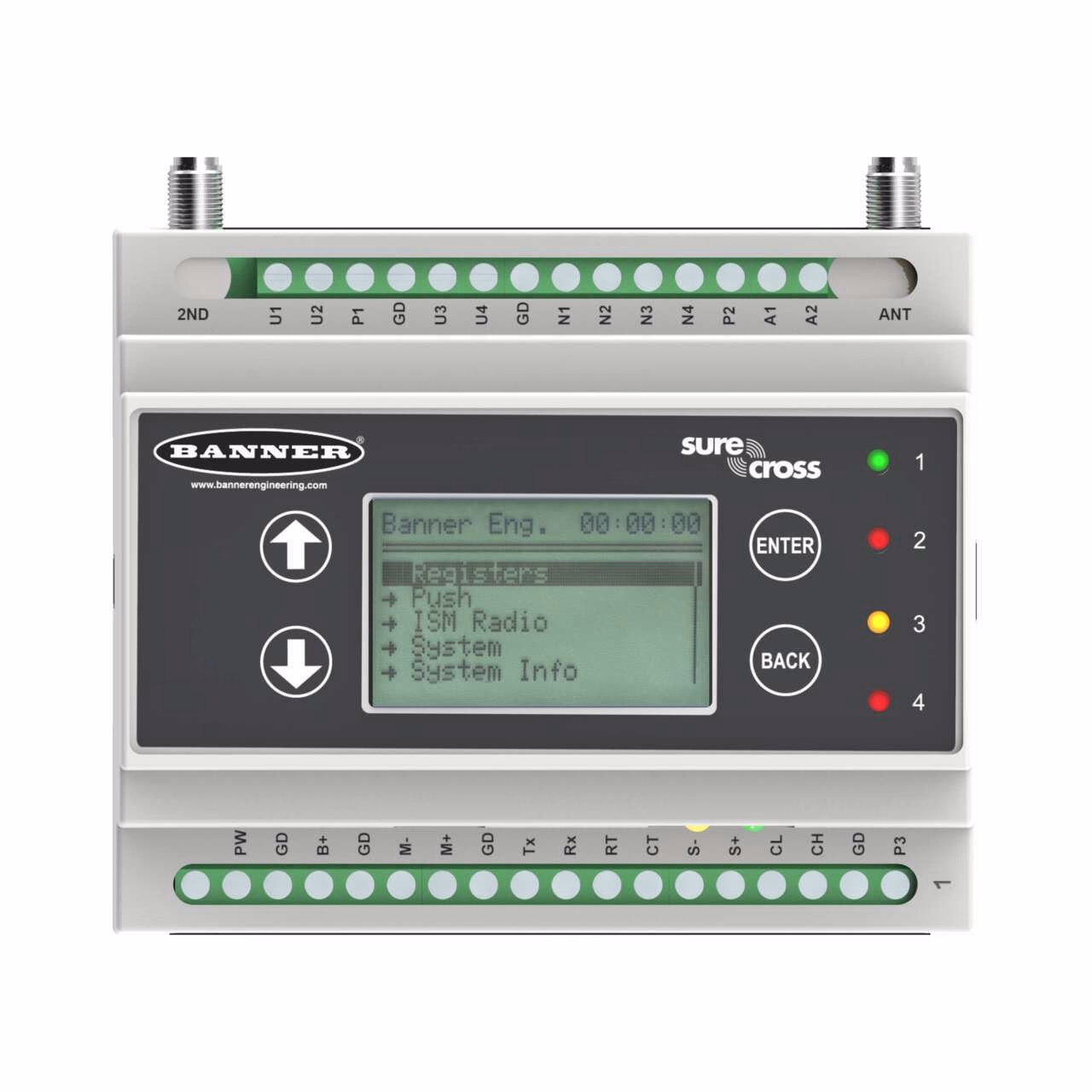

DXM100 Controller
I/O Base Board Only
Inputs: 4 Universal, SDI-12 Interface
Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power
SAM4 Processor, LCD Display
RS-485, Ethernet, USB; Solar/Battery Controller
| 1-wire Serial Interface | No |
|---|---|
| Dimension Length (mm) | 100 |
| Discrete Output Type | NMOS |
| Ethernet Connector Type | RJ45 Jack |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 80 |
| Min Temp Operating Conditions (C) | -20 |
| Number of Analog Outputs | 2 |
| On-Board Memory (MB) | 2 |
| Output Details | 4 NMOS Discrete, 2 Analog, 2 DC Latching |
| Processing Speed (MHz) | 100 |
| Cert | Australia/New Zealand, Brazil, Korea |
| Connection mode | 4 Universal Inputs, SDI-12 interface |
| Device type | Wireless Controller |
| Digital output | 4 |
| EtherNet/IP | Yes |
| Housing Style | External Terminals |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | No |
| RS-232 | Yes |
| RS-485 | Yes |
| Application.1 | Indicator Light, Soil Moisture Monitoring |
| Options Available | Modbus |
Description
DXM100 Controller
I/O Base Board Only
Inputs: 4 Universal, SDI-12 Interface
Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power
SAM4 Processor, LCD Display
RS-485, Ethernet, USB; Solar/Battery Controller
