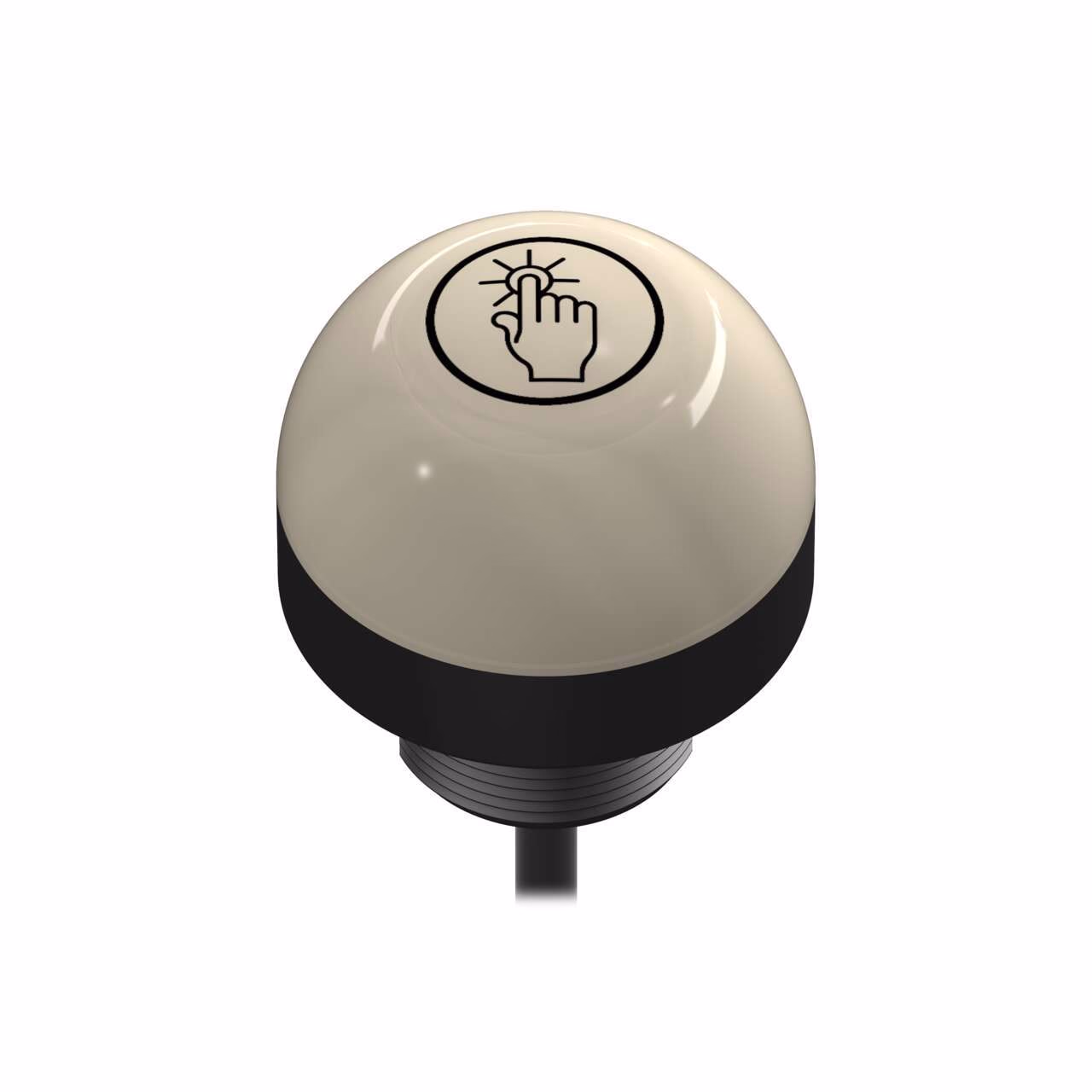

Banner – K50ABT2XGH
K50 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Momentary Output
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar (NO); Colors: None – Not Activated, Green – Activated
2 m (6.5 ft) PVC Cable
| Color Option 2 | Green |
|---|---|
| Color Technology | Standard LED |
| Connection | Cable |
| Discrete | Yes |
| Feature: Audible | No |
| Input Type | PNP |
| Pick-to-Light Function | H |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Actuation | Yes |
| Button Operation | Momentary |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Environmental Rating | IP67; IP69K |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Encapsulated, Washdown Rated |
| Housing Style | Dome |
| Indication | No |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Touch Button |
| Lumens Color 2 | 29.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open |
| Output type | Bipolar (NPN & PNP) |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 55.0 |
| Power Good Output | DC |
| Programmable | No |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 0.15 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 75.0 |
| Storage Temp (C) | -40 to 70 |
| Max Output Response Time (ms) | 50.0 |
Description
K50 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Momentary Output
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar (NO); Colors: None – Not Activated, Green – Activated
2 m (6.5 ft) PVC Cable
