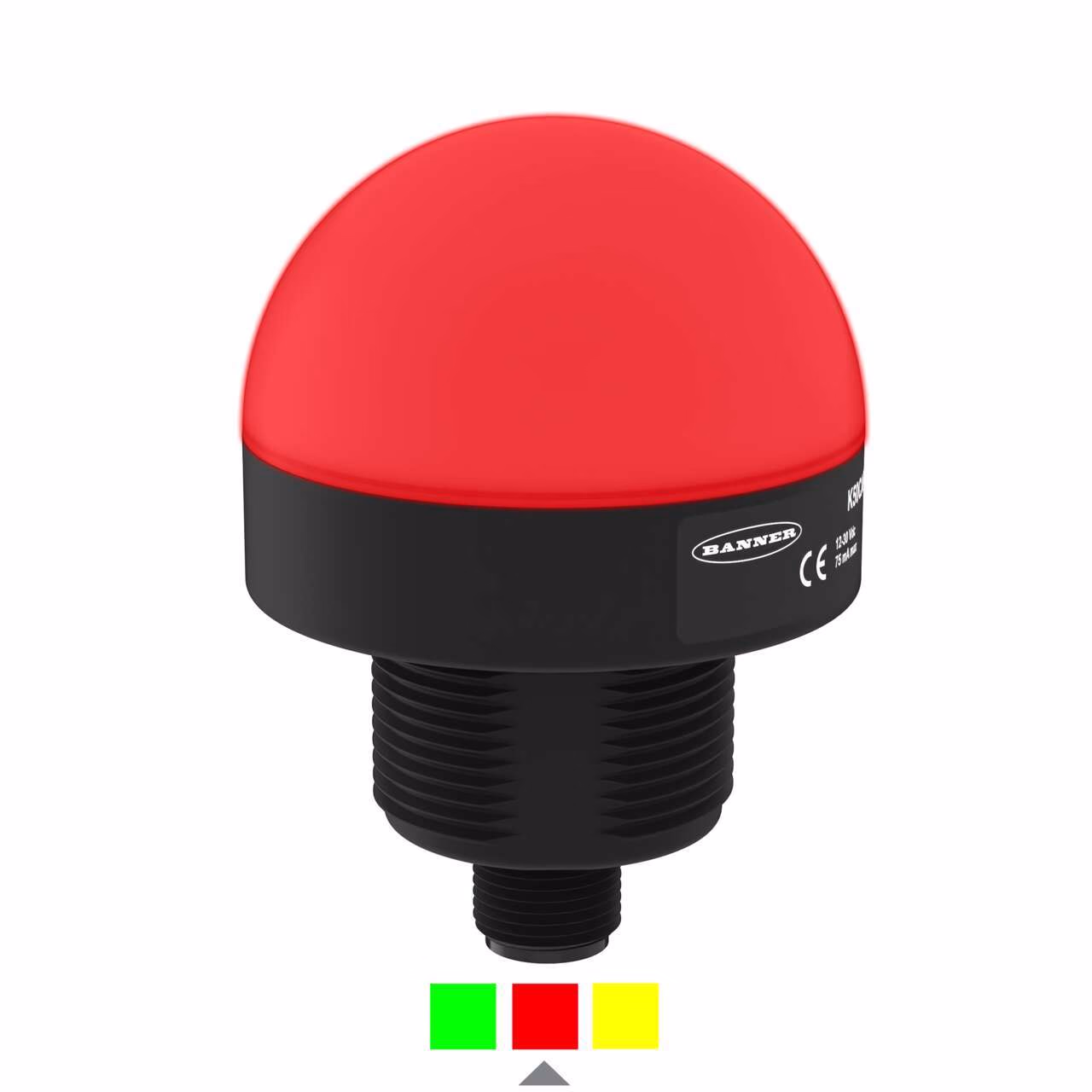

Banner – K50GRYPQ
K50 Standard Series Indicator: 3-Color General Purpose Indicator
Voltage: 24 V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Green Red Yellow
4-pin M12 Integral QD
| Color Option 2 | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Discrete | No |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Solid On |
| Animation Option 2 | Solid On |
| Animation Option 3 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 522 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 620 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 589 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Color Option 3 | Yellow |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Dome |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Indicator |
| Lumens Color 1 | 21.0 |
| Lumens Color 2 | 11.0 |
| Lumens Color 3 | 26.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 4.0 |
| Operating voltage | 24 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 69.0 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | No |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X, 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 55.0 |
| Max Input Response Time (ms) | 1.0 |
Description
K50 Standard Series Indicator: 3-Color General Purpose Indicator
Voltage: 24 V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Green Red Yellow
4-pin M12 Integral QD
