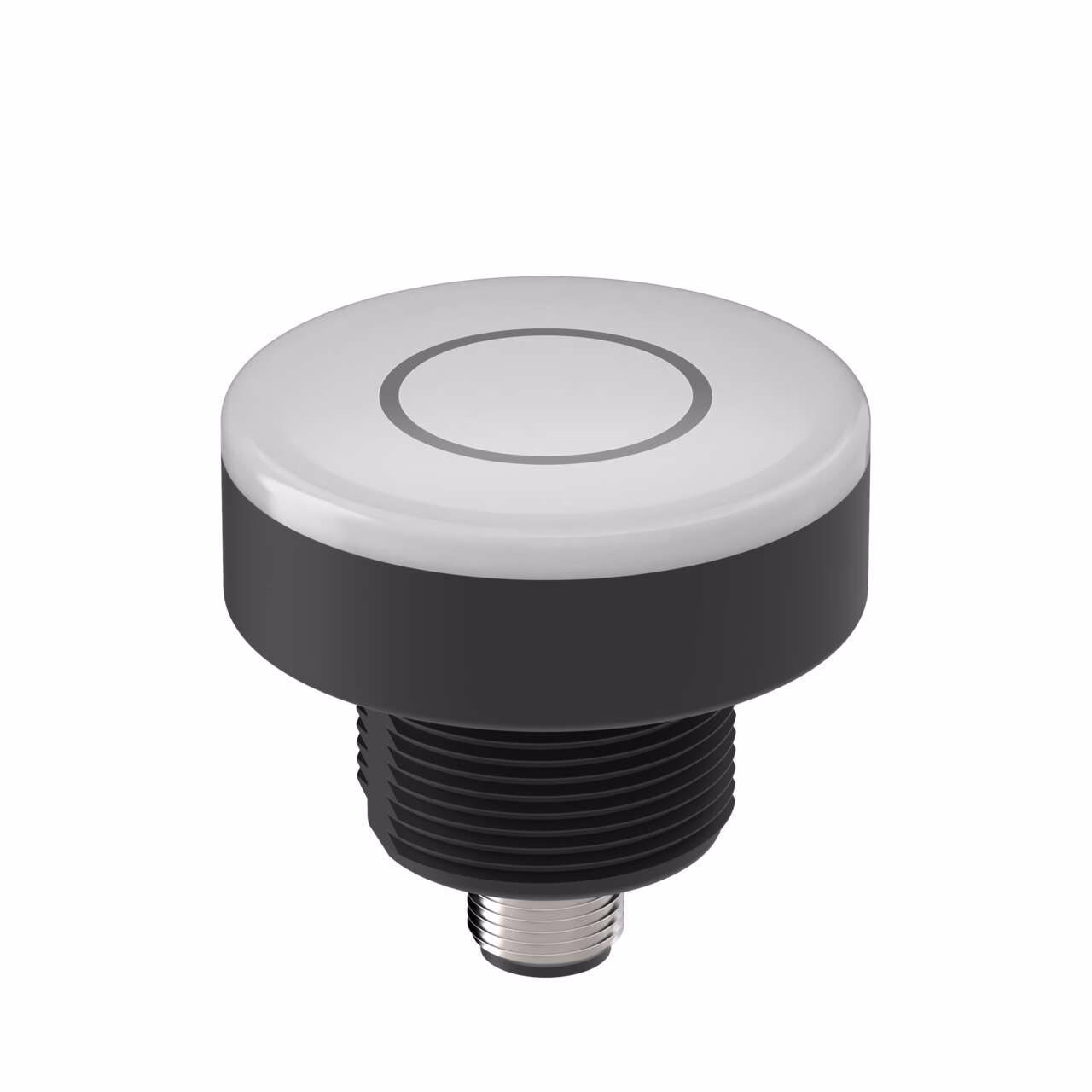

Banner – K50PTCAMGRY3Q-CRCLI
K50 Pro Compact Touch Series: 3-Color RGB Touch Sensor
12-30 V dc; Polycarbonate; IP67, IP69K
Bimodal, NO, Momentary; Multicolor
5-pin M12 Integral QD; Laser Marked Circle Icon
| Color Option 2 | Red |
|---|---|
| Color Technology | RGB Configurable |
| Connection | Integral QD |
| Discrete | Yes |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Pick-to-Light Function | F2 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Actuation | Yes |
| Button Operation | Momentary |
| Color 1 - Wavelength/Color Temp/Coordinates | 522 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 620 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 576 nm |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | Green |
| Color Option 3 | Yellow |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Compact |
| Indication | No |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Touch Button |
| Lumens Color 1 | 13.2 |
| Lumens Color 2 | 6.6 |
| Lumens Color 3 | 19.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open |
| Output type | Bipolar (NPN & PNP) |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 48.0 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | Yes |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 150.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 40.0 |
| Max Output Response Time (ms) | 300.0 |
| Vibration Feedback | No |
| Options Available | 4-20mA Output |
Description
K50 Pro Compact Touch Series: 3-Color RGB Touch Sensor
12-30 V dc; Polycarbonate; IP67, IP69K
Bimodal, NO, Momentary; Multicolor
5-pin M12 Integral QD; Laser Marked Circle Icon
