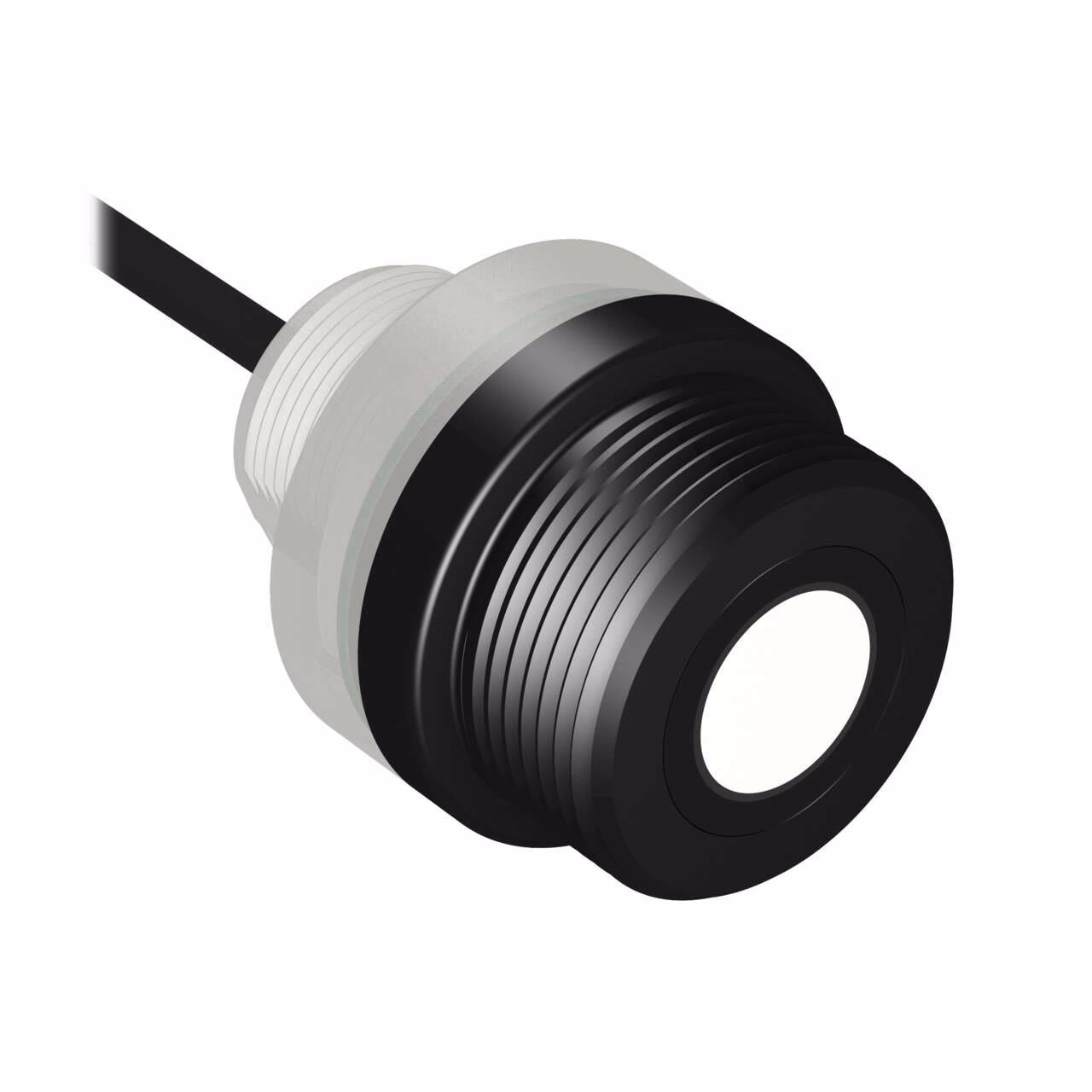

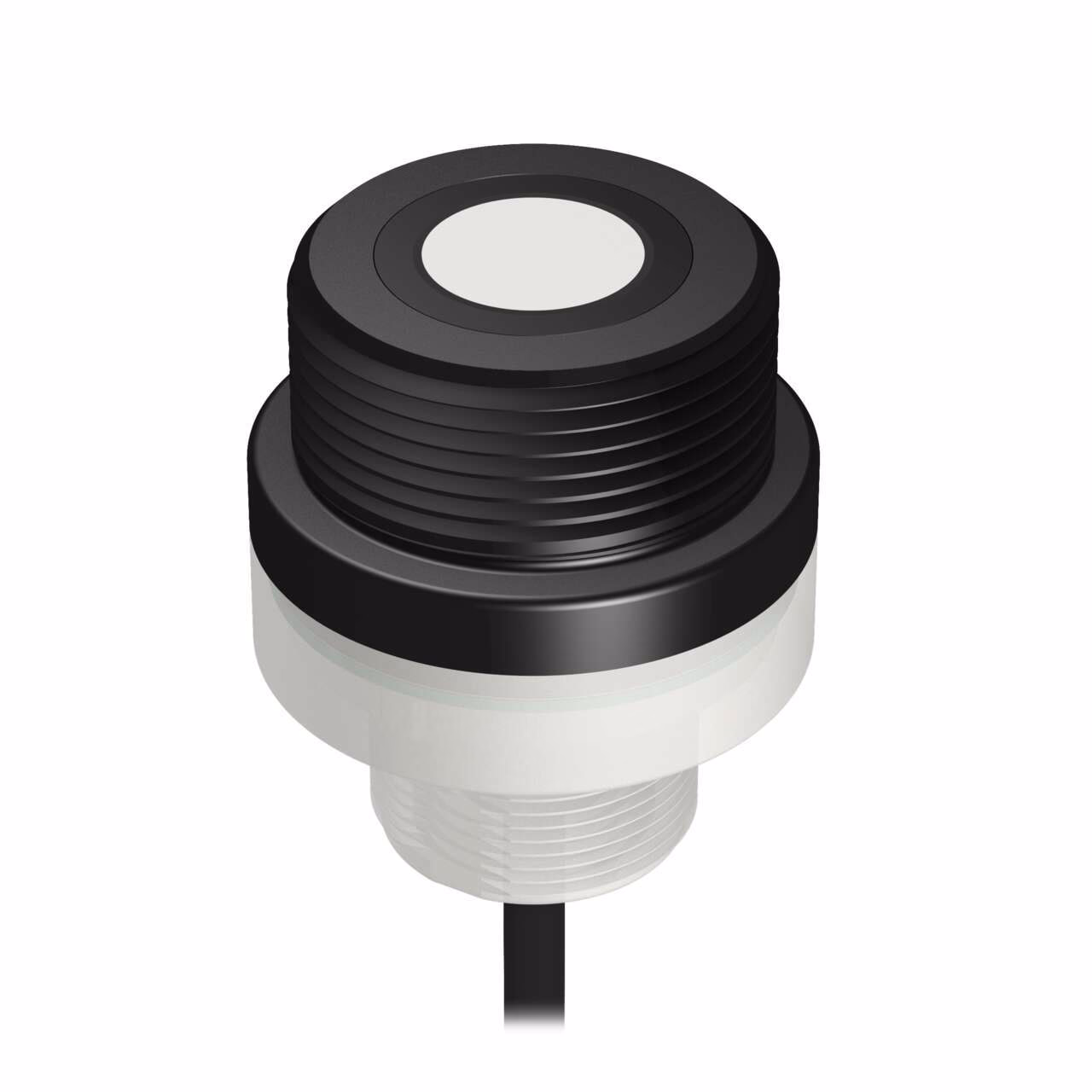

Banner – K50UX2CRA
Ultrasonic Sensor 0.3 m to 3 m
Modbus Slave Device via RS-485
Range: 300 mm – 3 m (11.8 in to 118 in)
230 mm (9 in) M12 Pigtail QD
| Condition Monitoring Sensor Type | Distance Measurement |
|---|---|
| Connection | Pigtail QD |
| Jam Detection | No |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 300.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect |
| Housing Style | Barrel |
| Input/Output | Serial (Modbus) |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 3.5-5.5 V dc / 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Screw-in thread | 1.25″ NPT |
| Sensing Beam | Ultrasonic |
| Slot width (mm) | 0.23 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 3000.0 |
| Ultrasonic Frequency (kHz) | 114.0 |
Description
Ultrasonic Sensor 0.3 m to 3 m
Modbus Slave Device via RS-485
Range: 300 mm – 3 m (11.8 in to 118 in)
230 mm (9 in) M12 Pigtail QD
