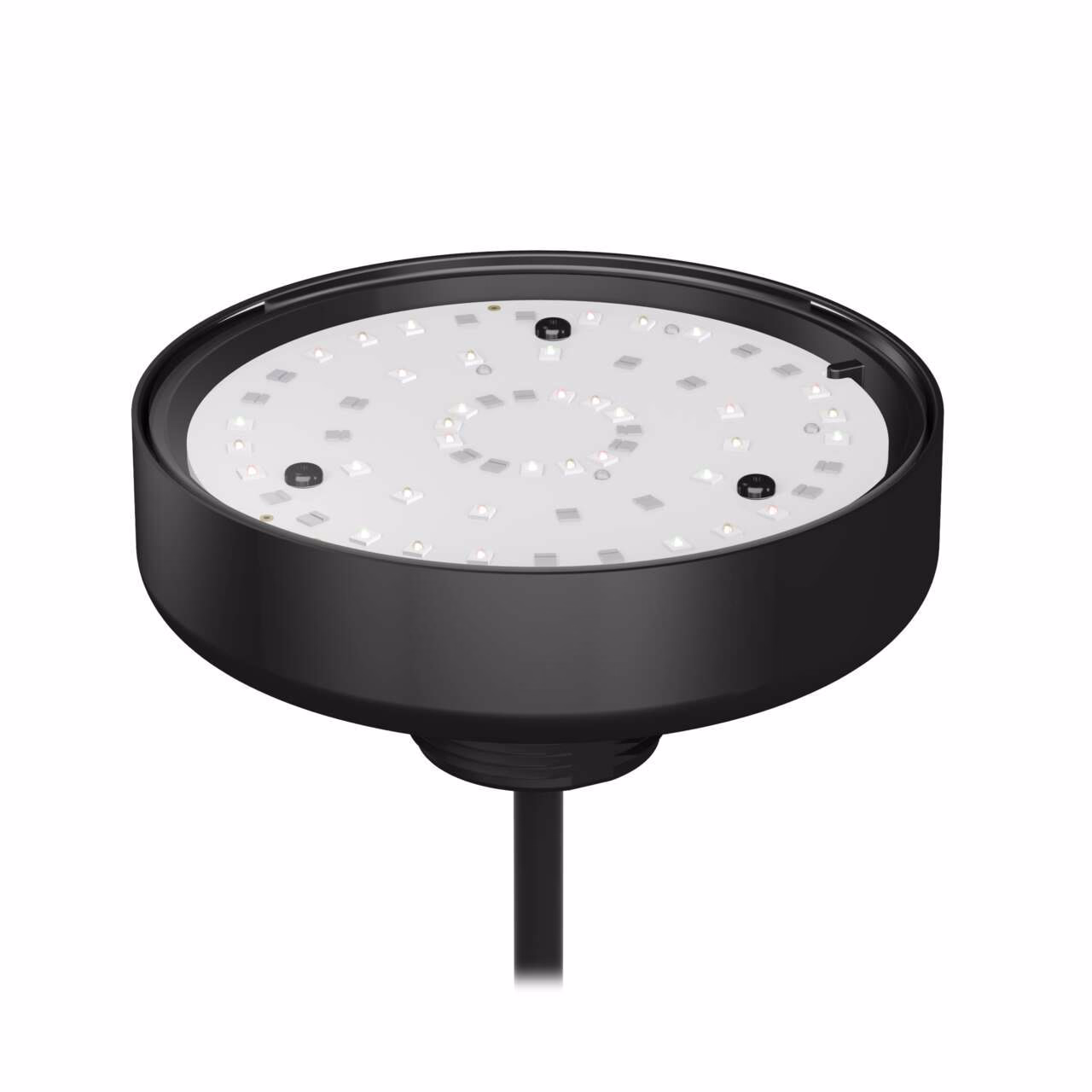

Banner – K90FDLGYRP
K90F Series EZ-LIGHT; 3-Color Daylight Visible Indicator
Voltage: 12-30 V dc; Environmental Rating: IP67
Input: PNP; Colors: Green Yellow Red
2 m (6.5 ft) Integral Cable
| Color Option 2 | Yellow |
|---|---|
| Color Technology | Standard LED |
| Connection | Cable |
| Feature: Audible | No |
| Input Type | PNP |
| Pin / Wire Count | 5.0 |
| Primary Window Material | Polycarbonate Clear |
| Wire Selectable Function | Flashing |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Color Option 3 | Red |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Housing Style | Base Mount – Flat Window |
| Indication | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 175.0 |
| Lumens Color 2 | 43.0 |
| Lumens Color 3 | 83.0 |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 5.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 90.0 x 42.0 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 2 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X, 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 90 |
| Max Current Color (mA) | 475.0 |
| Max Input Response Time (ms) | 75.0 |
Description
K90F Series EZ-LIGHT; 3-Color Daylight Visible Indicator
Voltage: 12-30 V dc; Environmental Rating: IP67
Input: PNP; Colors: Green Yellow Red
2 m (6.5 ft) Integral Cable
