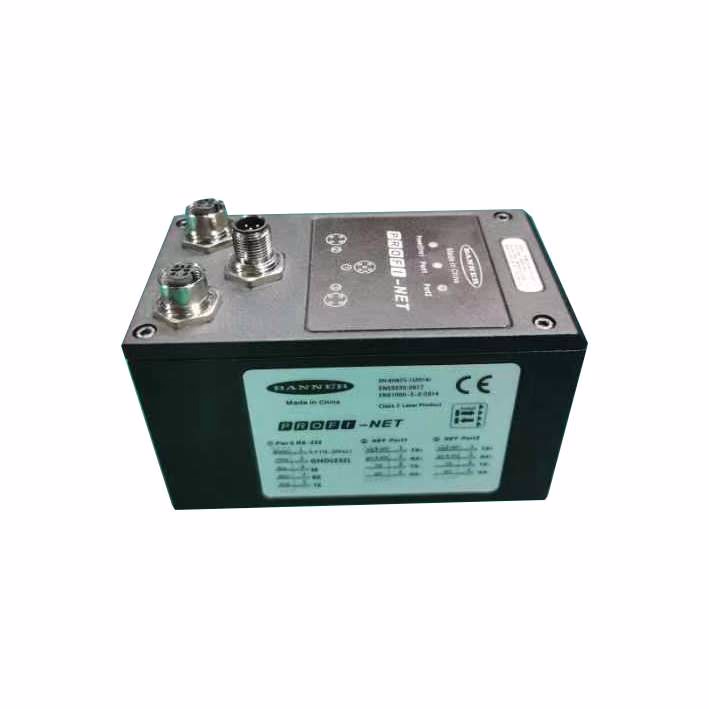

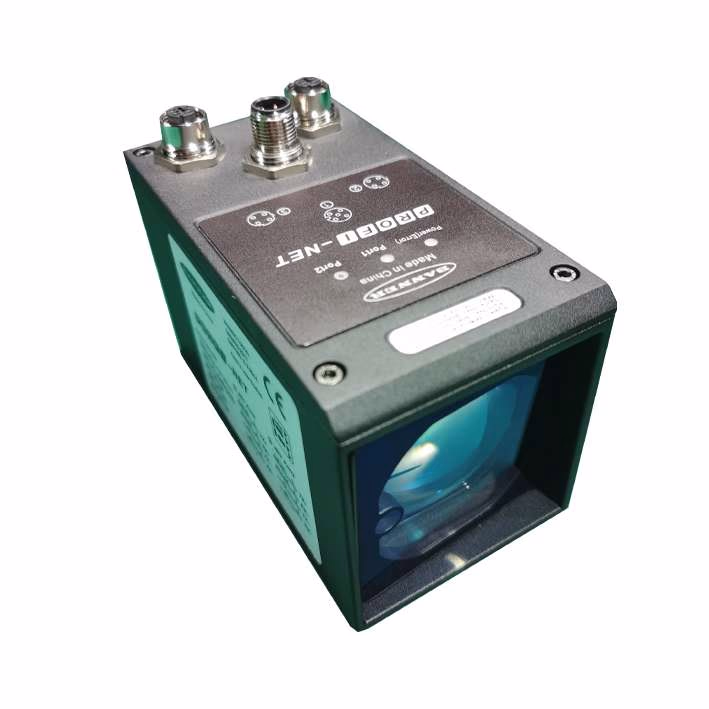

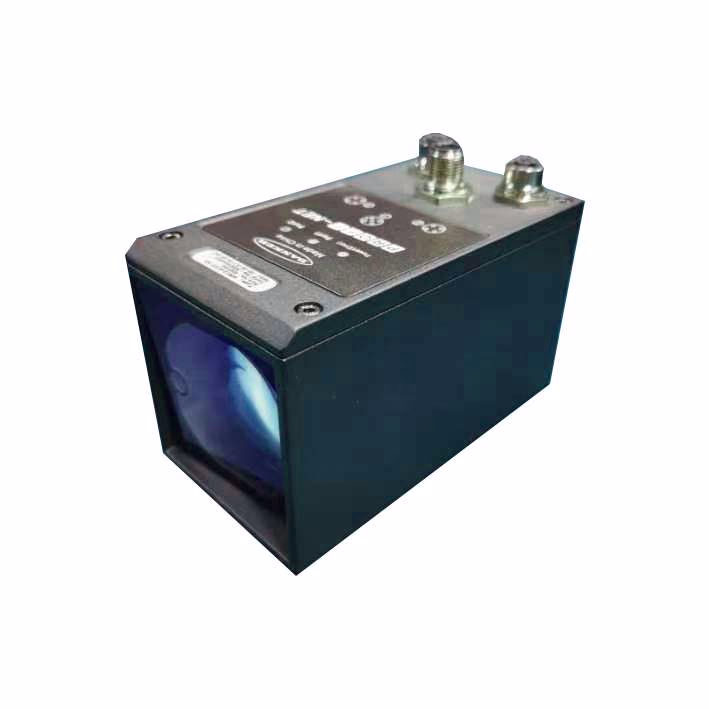

Banner – LXTLV200X422Q
LXT Series Laser Distance Measurement
Range: 200 mm – 200 m; 18-30 V dc
RS422
5-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Classification | Class 2 |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 200.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Single Point Optical |
| Connection technology signal | Wide Beam Retroreflective (Non-Polarized) |
| Device type | Laser |
| Feature | Quick Disconnect |
| Housing Style | Rectangular |
| Input/Output | Serial |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 18-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum Alloy Die-Cast |
| RS-232 | Yes |
| Sensing Beam | Infrared Laser |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 20000.0 |
Description
LXT Series Laser Distance Measurement
Range: 200 mm – 200 m; 18-30 V dc
RS422
5-pin M12 Integral QD
