Banner – OS80K3MXKQK

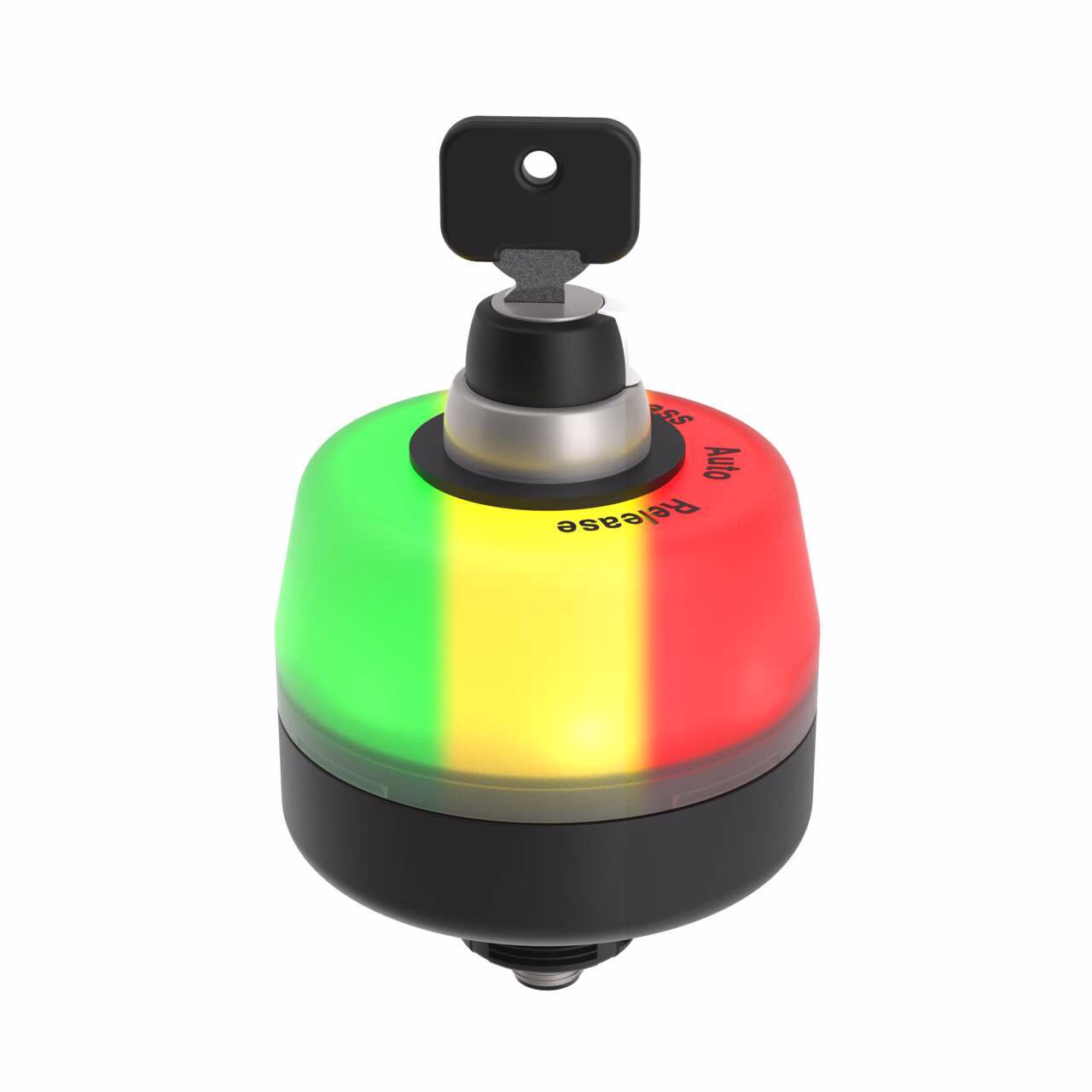

OS80 Operator Station: Key Switch with IO-Link
Segmented Housing; 3-Position Key Switch
Voltage: 12-30 V dc; Housing: Polycarbonate; IP40
Colors: Green, Yellow, Red; Laser Marked: Bypass Auto Release
4-pin M12 Integral QD
Bracket SMB30U100
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Input Type | Communication Protocol |
| Primary Housing Color | Black |
| Secondary Material | Polyamide |
| Actuation | Yes |
| Color Input Control | Communication Protocol |
| Environmental Rating | IP40 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Dome Window |
| Indication | No |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | Programmable |
| Number of Conductors | 4.0 |
| Operating mode | Key Operated Selector Switch |
| Operating voltage | 18-30 V dc |
| Operation | Programmable |
| Output type | Communication Protocol |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 80.0 x 195.6 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP40 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -25.0 |
| High Temperature (up to 100 C) | 55.0 |
| Product Size (mm) | 82 |
| Max Current Color (mA) | 150.0 |
| Storage Temp (C) | -40 to 70 |
| Options Available | 4-20mA Output |
Description
OS80 Operator Station: Key Switch with IO-Link
Segmented Housing; 3-Position Key Switch
Voltage: 12-30 V dc; Housing: Polycarbonate; IP40
Colors: Green, Yellow, Red; Laser Marked: Bypass Auto Release
4-pin M12 Integral QD
Bracket SMB30U100
