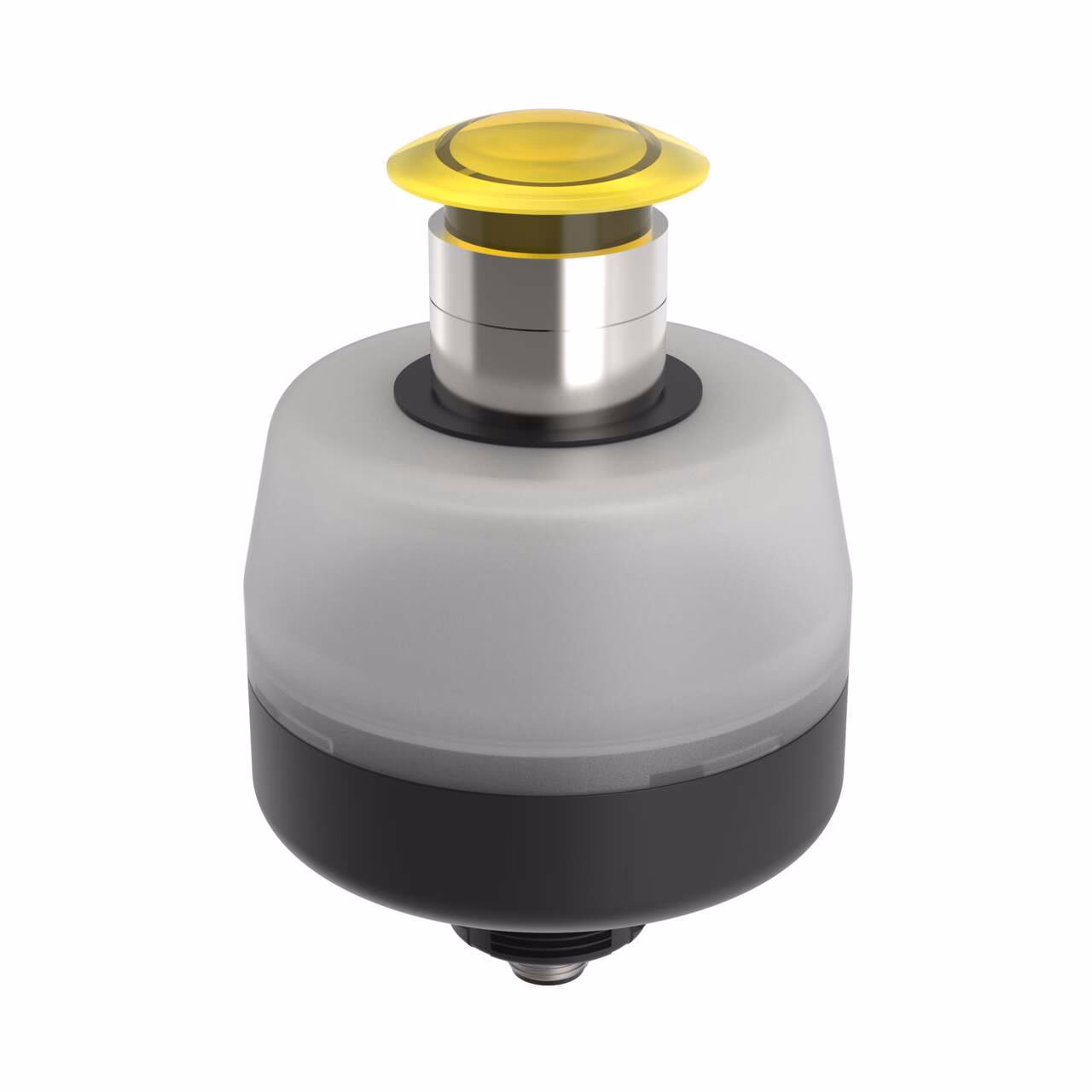

Banner – OS80PMLY1XYQ
OS80 Operator Station: Push Button, Yellow
Latching (Pull-to-Release); 1-Color
Voltage: 12-30 V dc; Housing: Polycarbonate; IP40
Output: PNP 1 NO; Colors: Yellow
5-pin M12 Integral QD
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Black |
| Secondary Material | Polyamide |
| Actuation | Yes |
| Animation Option 1 | Solid On |
| Button Operation | Latching |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Yellow |
| Environmental Rating | IP40 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Dome Window |
| Indication | No |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Mounting | M30 x 1.5 |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5 |
| Operating mode | Push-Button |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open |
| Output type | PNP |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 80.0 x 115.6 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP40 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Min Op. Temperature (C) | -25 |
| High Temperature (up to 100 C) | 55 |
| Product Size (mm) | 80 |
| Touchscreen | No |
| USB | No |
| Max Current Color (mA) | 135 |
| Storage Temp (C) | -40 to 70 |
| Max Output Response Time (ms) | 50 |
| Options Available | 4-20mA Output |
Description
OS80 Operator Station: Push Button, Yellow
Latching (Pull-to-Release); 1-Color
Voltage: 12-30 V dc; Housing: Polycarbonate; IP40
Output: PNP 1 NO; Colors: Yellow
5-pin M12 Integral QD
