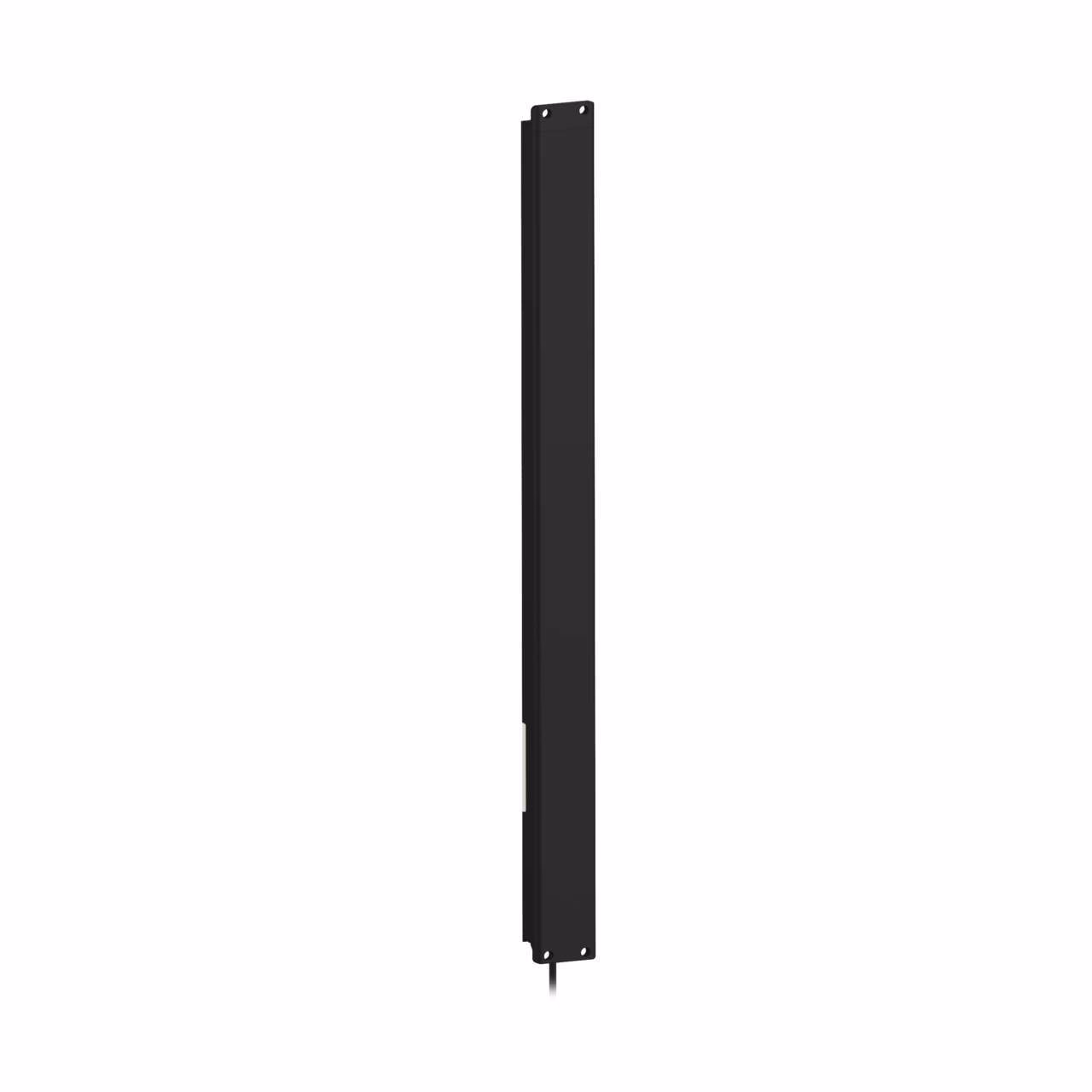

Banner – PVA375P6RQ
PVA Series: 375 mm Array – Receiver
Range: 2 m; Input: 12-30 V dc
Output: 1 PNP Programmable for LO/DO
M12 Pigtail QD
| Array Length (mm) | 375 |
|---|---|
| Color Technology | Standard LED |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Job Light | Green |
| Maximum Sensing Distance (mm) | 2000 |
| Primary Housing Color | Black |
| Primary Window Material | Acrylic Clear |
| Sensing Array Length (mm) | 375 |
| Sensing Mode (General) | Opposed |
| Sensing Resolution (mm) | 35 |
| Actuation | Yes |
| Animation Option 1 | Dip-Switch Controlled |
| Button Operation | Momentary |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Connection technology signal | Receiver |
| Environmental Rating | IP62 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Flat Mount – Array |
| Indication | No |
| Item Status | RELEASED |
| Laser class | 25 |
| Light type | No |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of beams | 16 |
| Number of colors/segments | 1 |
| Number of Conductors | 4 |
| Operating mode | Optical |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open/Normally Closed |
| Output type | PNP |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 416.6 x 30.0 x 15.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP62 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| NEMA / UL Type Rating | NEMA 2 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | Other |
| Touchscreen | No |
| USB | No |
| Slot width (mm) | 2 |
| Max Current Color (mA) | 62 |
| Max Output Response Time (ms) | 64 |
Description
PVA Series: 375 mm Array – Receiver
Range: 2 m; Input: 12-30 V dc
Output: 1 PNP Programmable for LO/DO
M12 Pigtail QD
