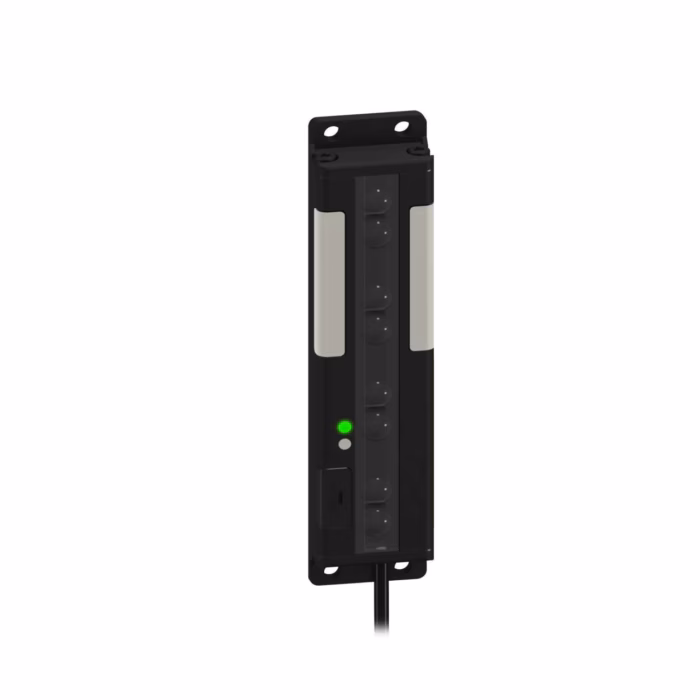

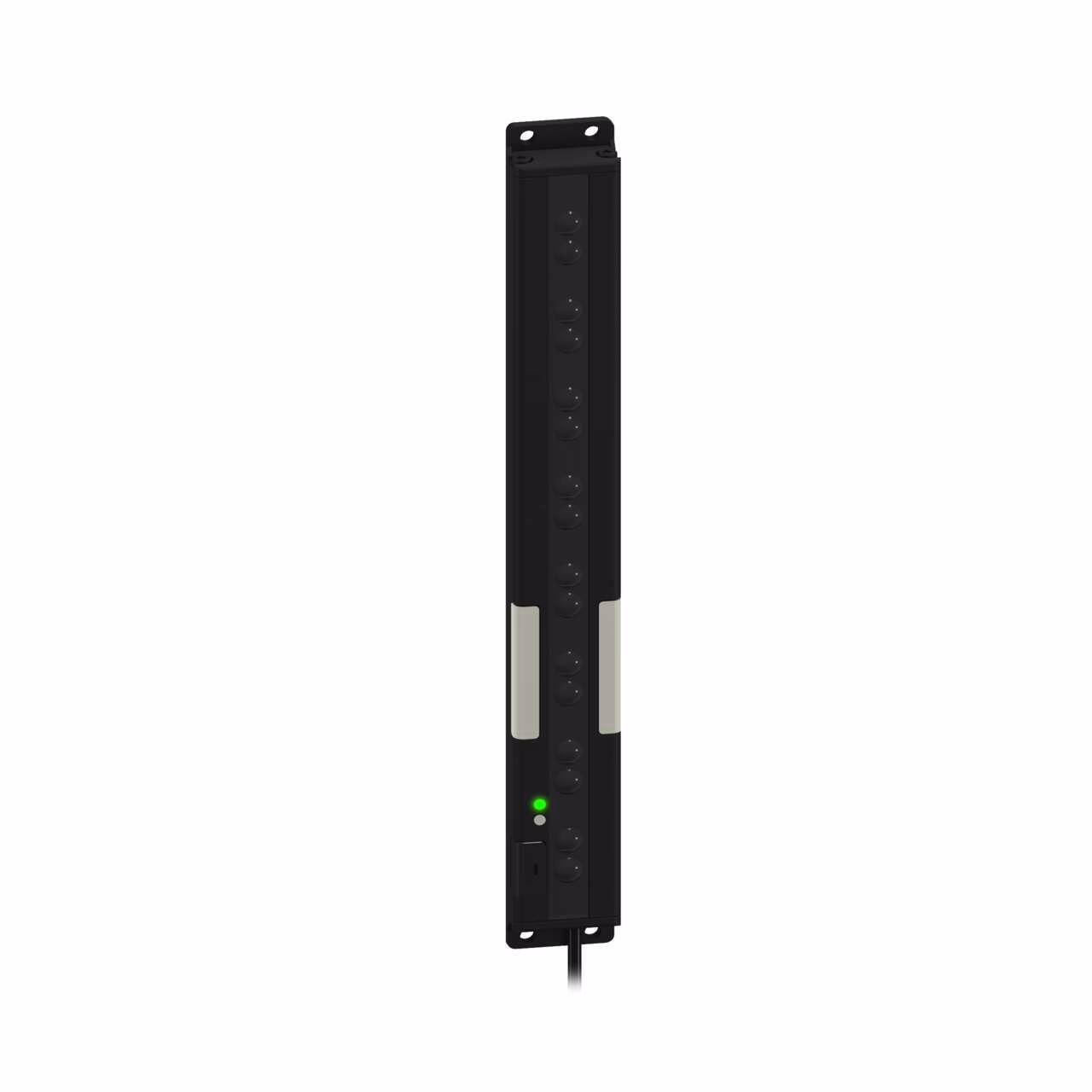

Banner – PVD225QPMA29
PVD Series: Parts Verification
225 mm 8 channel; Range: up to 2 m
Input: 12-30 V dc
Outputs: Selectable NPN/PNP
5-pin M12 2 m (6.5 ft) PUR Pigtail QD
Modified for Automotive; See Literature Insert
| Array Length (mm) | 225 |
|---|---|
| Color Option 2 | Red |
| Color Technology | Standard LED |
| Connection | Pigtail PUR QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Job Light | Green |
| Maximum Sensing Distance (mm) | 400/2000 |
| Mis-Pick Light | Red |
| Primary Housing Color | Black |
| Primary Window Material | Acrylic Clear |
| Sensing Array Length (mm) | 225 |
| Sensing Mode (General) | Retroreflective or Proximity |
| Sensing Resolution (mm) | 51 |
| Actuation | Yes |
| Animation Option 1 | Solid On |
| Button Operation | Momentary |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Connection technology signal | Diffuse/Non-Polarized |
| Environmental Rating | IP62 |
| EPLAN Original Sent Date | 12/18/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Flat Mount – Array |
| Indication | No |
| Item Status | RELEASED |
| Laser class | 28.6 |
| Light type | No |
| Lumens Color 1 | 12 |
| Lumens Color 2 | 2.5 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of beams | 8 |
| Number of colors/segments | 2 |
| Number of Conductors | 5 |
| Operating mode | Optical |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open/Normally Closed |
| Output type | Bipolar (NPN or PNP – user selectable) |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 266.4 x 30.0 x 15.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP62 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| NEMA / UL Type Rating | NEMA 2 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | Other |
| Touchscreen | No |
| USB | No |
| Slot width (mm) | 0.15 |
| Max Current Color (mA) | 88 |
| Max Input Response Time (ms) | 400 |
Description
PVD Series: Parts Verification
225 mm 8 channel; Range: up to 2 m
Input: 12-30 V dc
Outputs: Selectable NPN/PNP
5-pin M12 2 m (6.5 ft) PUR Pigtail QD
Modified for Automotive; See Literature Insert
