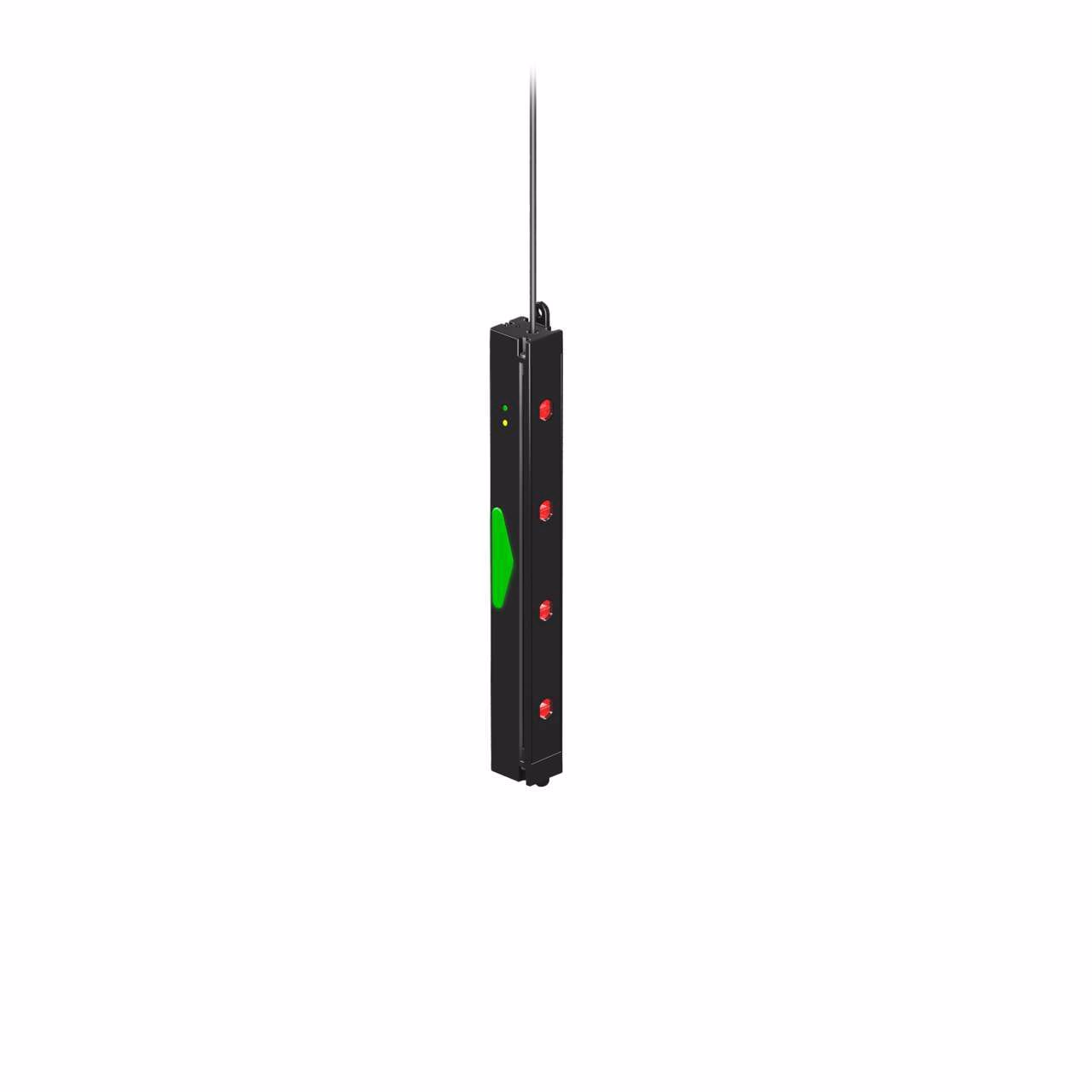

Banner – PVL225PQ W/6IN
PVL Array Series: 225 mm Length
Voltage: 12-30 V dc; Housing: Aluminum; IP50
Input/Output: PNP; Colors: Green Job; Red Mispick
150 mm (6 in) 5-pin M12 PVC Pigtail QD
| Array Length (mm) | 225 |
|---|---|
| Color Option 2 | Red |
| Color Technology | Standard LED |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Input Type | PNP |
| Job Light | Green |
| Maximum Sensing Distance (mm) | 1500 |
| Mis-Pick Light | Red |
| Primary Window Material | Acrylic Clear |
| Sensing Array Length (mm) | 225 |
| Sensing Mode (General) | Retroreflective |
| Sensing Resolution (mm) | 70 |
| Actuation | Yes |
| Animation Option 1 | Solid On |
| Animation Option 2 | Flashing Only |
| Button Operation | Momentary |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Connection technology signal | Non-Polarized |
| Environmental Rating | IP50 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Flat Mount – Array |
| Indication | No |
| Item Status | RELEASED |
| Laser class | 70 |
| Light type | No |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of beams | 4 |
| Number of colors/segments | 2 |
| Number of Conductors | 5 |
| Operating mode | Optical |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open |
| Output type | PNP |
| PFM Input | No |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Radio interface | No |
| Receptacle housing material B | Black Anodized Aluminum |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | Other |
| Touchscreen | No |
| USB | No |
| Slot width (mm) | 0.15 |
| Max Current Color (mA) | 140 |
| Storage Temp (C) | -40 to 70 |
| Max Output Response Time (ms) | 2 |
Description
PVL Array Series: 225 mm Length
Voltage: 12-30 V dc; Housing: Aluminum; IP50
Input/Output: PNP; Colors: Green Job; Red Mispick
150 mm (6 in) 5-pin M12 PVC Pigtail QD
