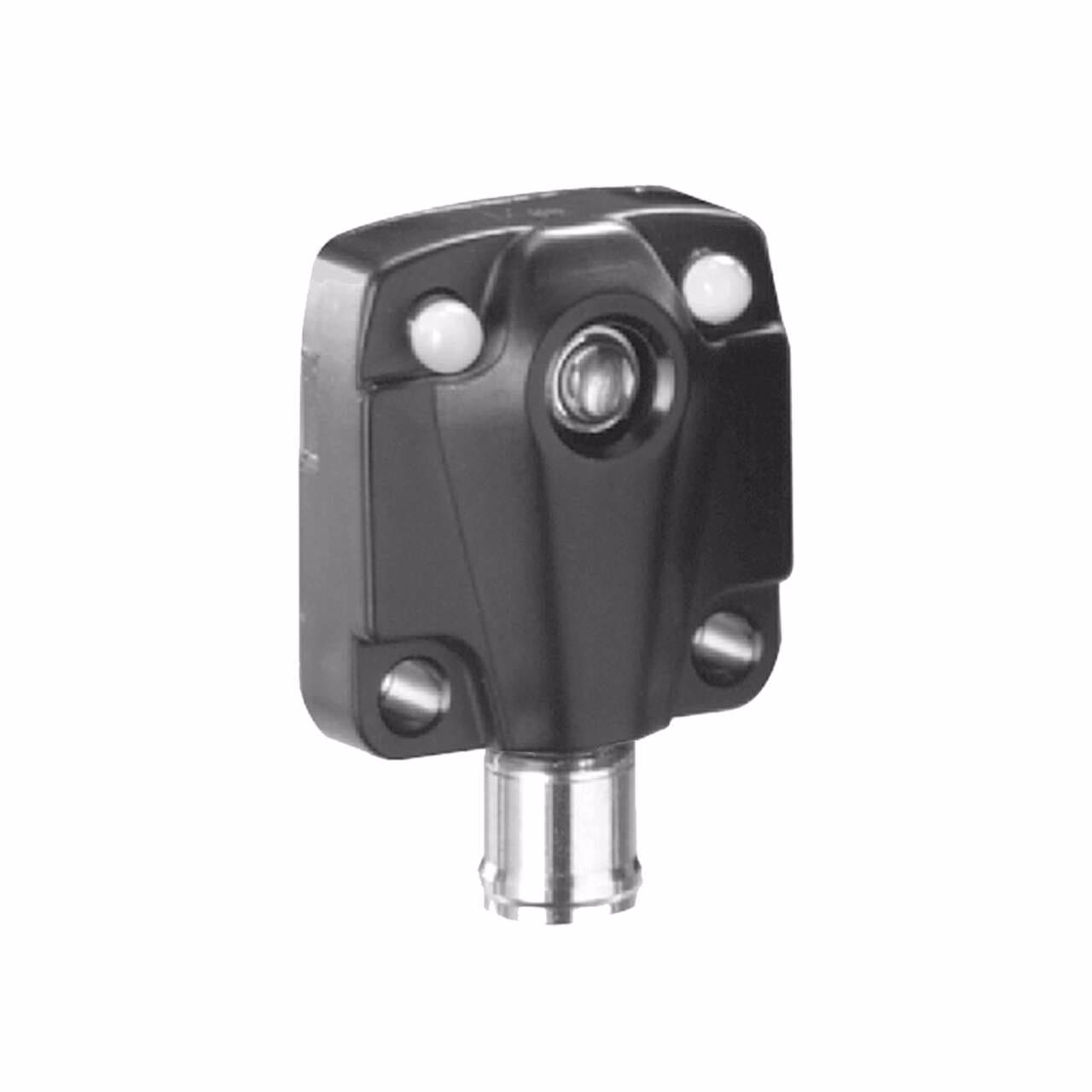

Banner – Q106EQ
Q10 Series: Emitter
Range: 1.8 m; Input: 10-30 V dc
Output: Not Applicable
3-pin M8 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| Feature | Quick Disconnect |
| Homerun Exit Location | 8 ON/4 OFF |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 880 |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 1800 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
Description
Q10 Series: Emitter
Range: 1.8 m; Input: 10-30 V dc
Output: Not Applicable
3-pin M8 Integral QD
