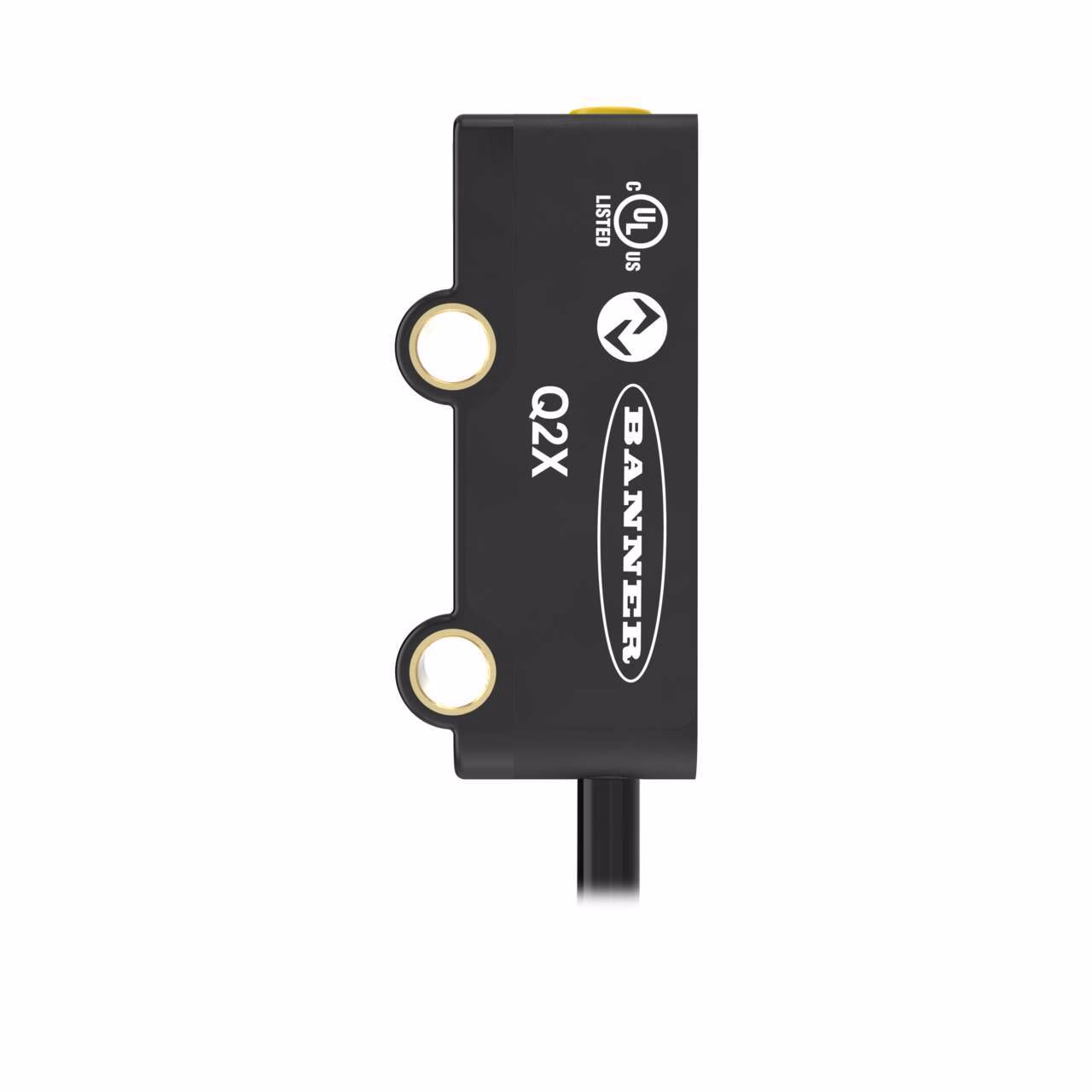

Banner – Q2XNLAF2IR-Q
Q2X Series: IR Laser Adjustable Field
Range: 20-2000 mm; Input 10-30 V dc
Output: 1 NPN; 1 NPN Multi-Function
150 mm (6 in) M8 Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Laser Classification | Class 1 |
| Outputs | NPN |
| Sensing Mode (General) | Proximity |
| Adjustments | Teach Button |
| Connection technology signal | Background Suppression (Adjustable) |
| DeviceNet | No |
| Feature | Clear Object Detection, Timing (Hold/Delay) |
| Homerun Exit Location | 100 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | PC/ABS |
| Sensing Beam | Infrared Laser |
| Sensing Beam Wavelength | 940 |
| Slot width (mm) | 0.15 |
| Special feature | Remote Teach |
| Min Op. Temperature (C) | -20.0 |
| Delay at Power-up (ms) | 2000 |
| Max Sensing Distance (mm) | 2000.0 |
| Max Op. Temp. (C) | 50 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
Description
Q2X Series: IR Laser Adjustable Field
Range: 20-2000 mm; Input 10-30 V dc
Output: 1 NPN; 1 NPN Multi-Function
150 mm (6 in) M8 Pigtail QD
