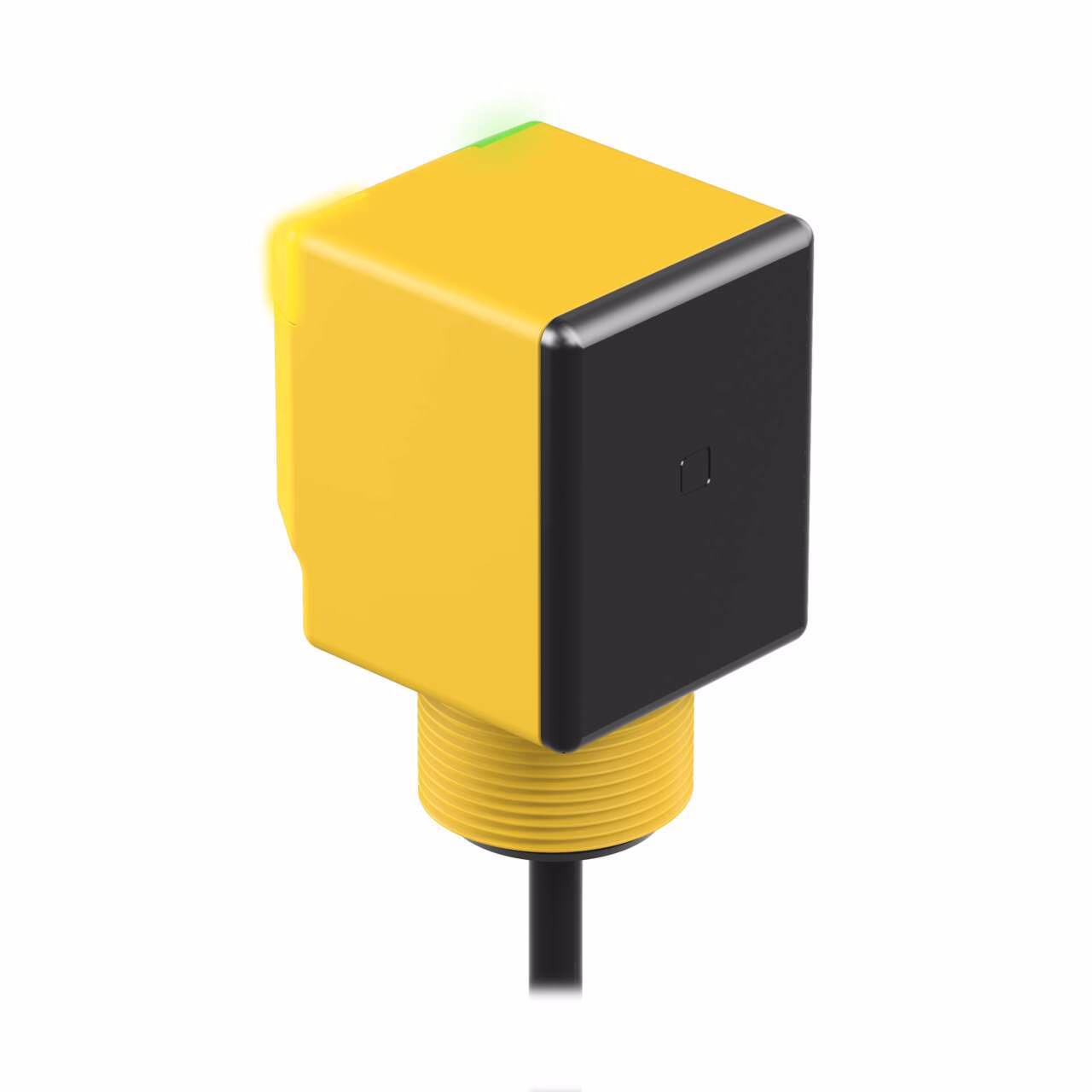

Banner – Q403EQ1
EZ-BEAM Q40 Series: Emitter
Range: 60 m; Input: 20-250 V ac
Output: Not Applicable
4-pin Micro Integral QD
| Connection | Integral QD |
|---|---|
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| Feature | Ecolab Certified, Encapsulated, Quick Disconnect, Washdown Rated |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Polycarbonate |
| Number of pins | 4 |
| Operating voltage | 20-250 V ac |
| Opposed Mode Emitter/Receiver | Emitter |
| Port | 1/2 in. (Micro) |
| Power Good Output | AC |
| Protection class shaft | IP69K |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 60000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 30 |
| Repeatability (µs) | 2000 |
Description
EZ-BEAM Q40 Series: Emitter
Range: 60 m; Input: 20-250 V ac
Output: Not Applicable
4-pin Micro Integral QD
