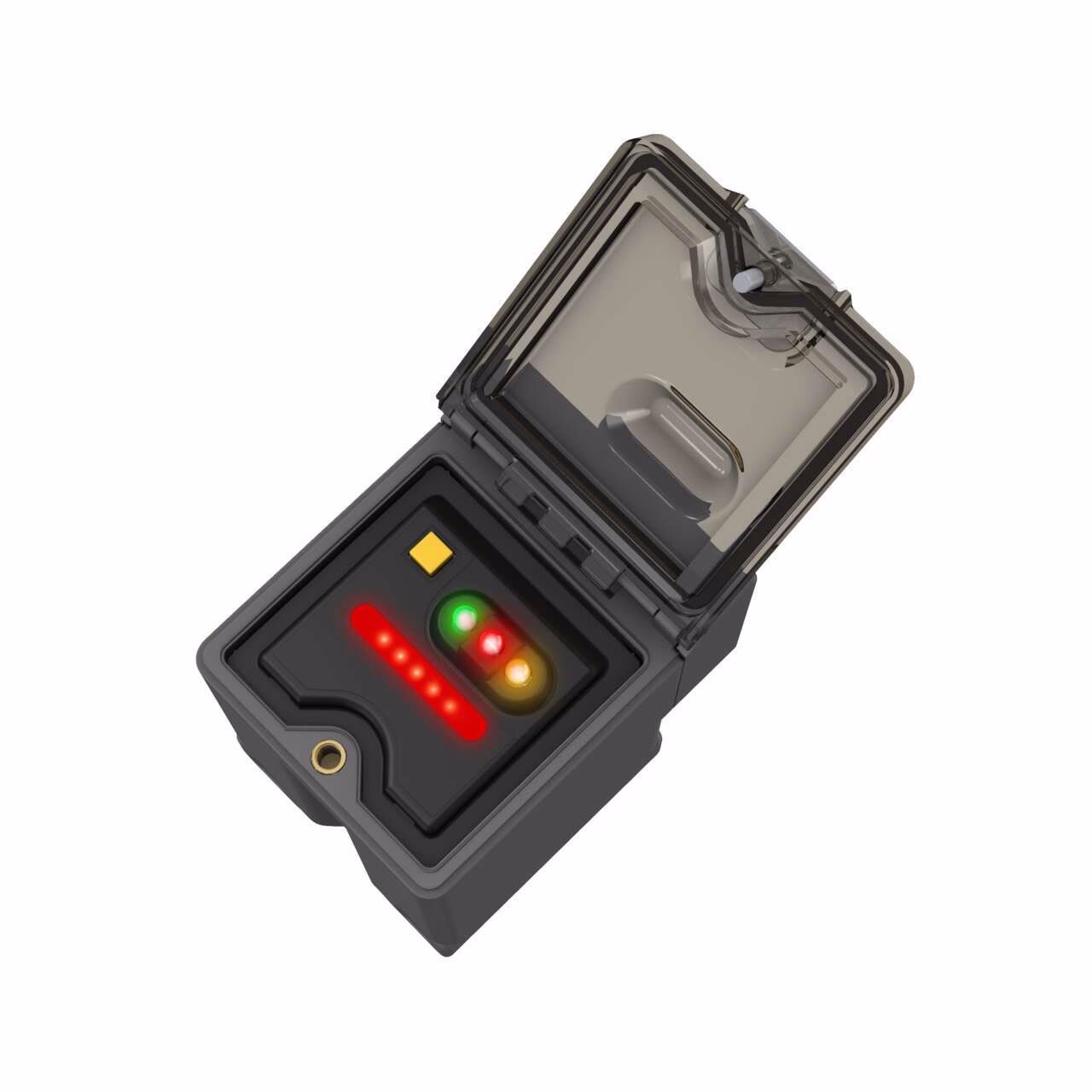

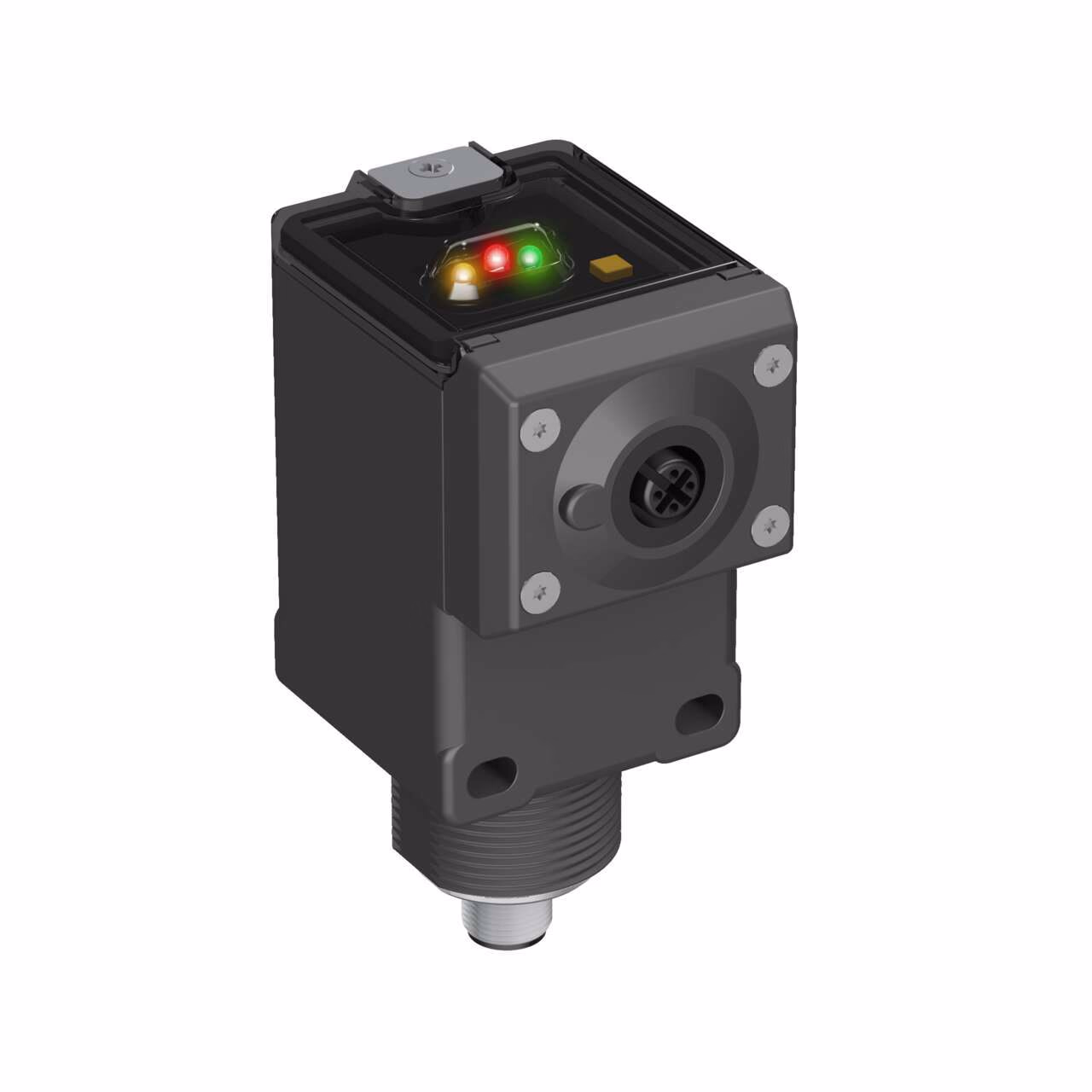

Banner – Q45UR3LIU64CQ6
Q45UR Analog Series: Controller
Range: 50-250 mm; Input: 15-24 V dc
Output: Selectable 0-10 V dc or 4-20 mA Sourcing
5-pin M12 Integral QD
| Analog Output Configuration | 0-10 V dc or 4-20 mA |
|---|---|
| Connection | Integral QD |
| Jam Detection | No |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 50 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 400 |
| Connection technology signal | Time of Flight |
| Device type | Remote Sensor |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach |
| Housing Style | Rectangular |
| Input/Output | Analog |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 15-24 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic Polyester |
| RS-232 | No |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 250 |
Description
Q45UR Analog Series: Controller
Range: 50-250 mm; Input: 15-24 V dc
Output: Selectable 0-10 V dc or 4-20 mA Sourcing
5-pin M12 Integral QD
