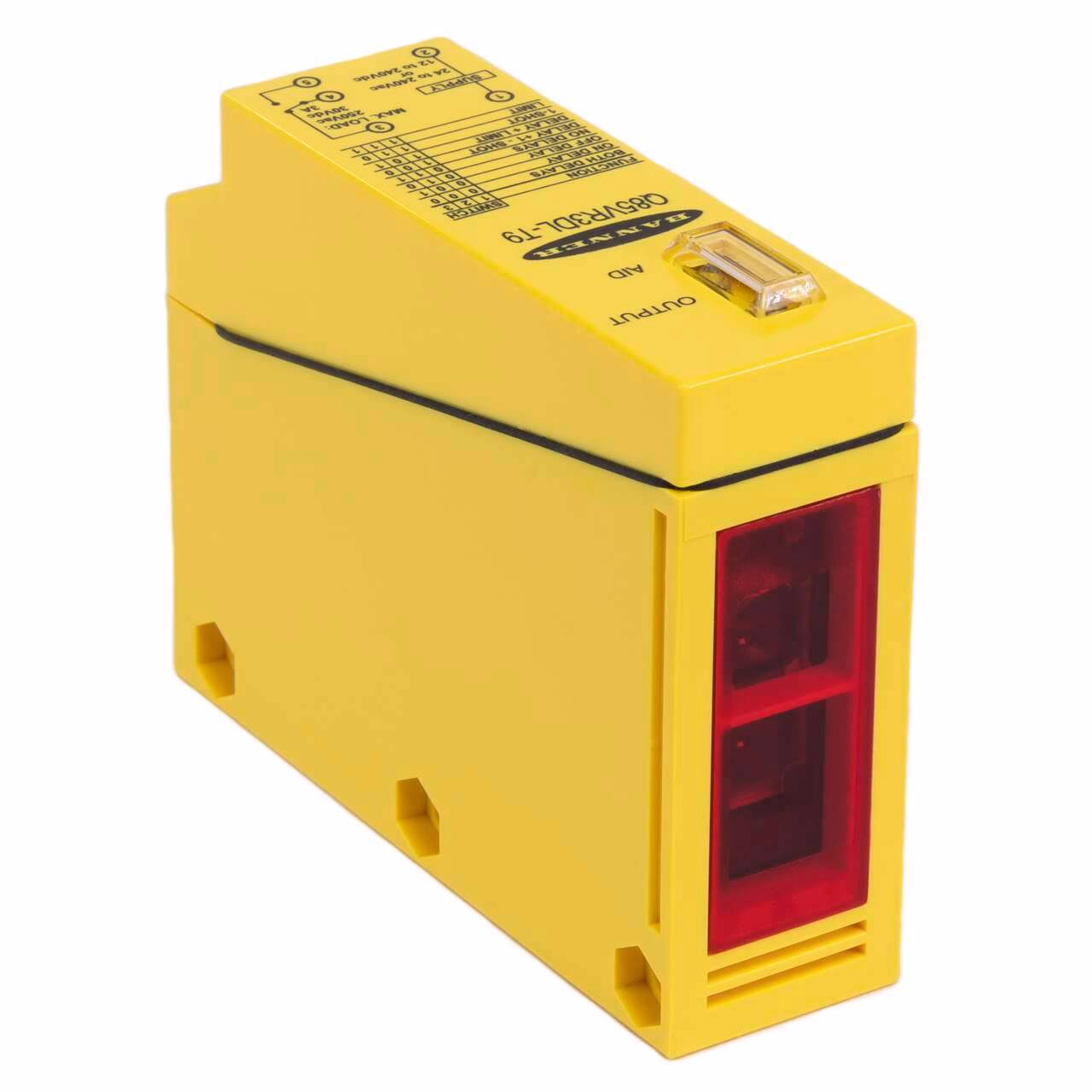

Banner – Q85VR3DL-T9
Q85 Series: Diffuse with Output Timer
Range: 1 m; Input: 12-240 V dc / 24-240 V ac
Output: SPDT Electromechanical Relay
Wiring Chamber
| Connection | Terminal |
|---|---|
| Feature: Audible | No |
| Outputs | SPDT e/m Relay |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Diffuse |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | E/M Relay |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 5 |
| Operating voltage | 12-240 V dc / 24-240 V ac |
| Operation | Light/Dark Operate |
| Power Good Output | AC/DC Universal |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 880 |
| Min Op. Temperature (C) | -25 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 1000 |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
Description
Q85 Series: Diffuse with Output Timer
Range: 1 m; Input: 12-240 V dc / 24-240 V ac
Output: SPDT Electromechanical Relay
Wiring Chamber
