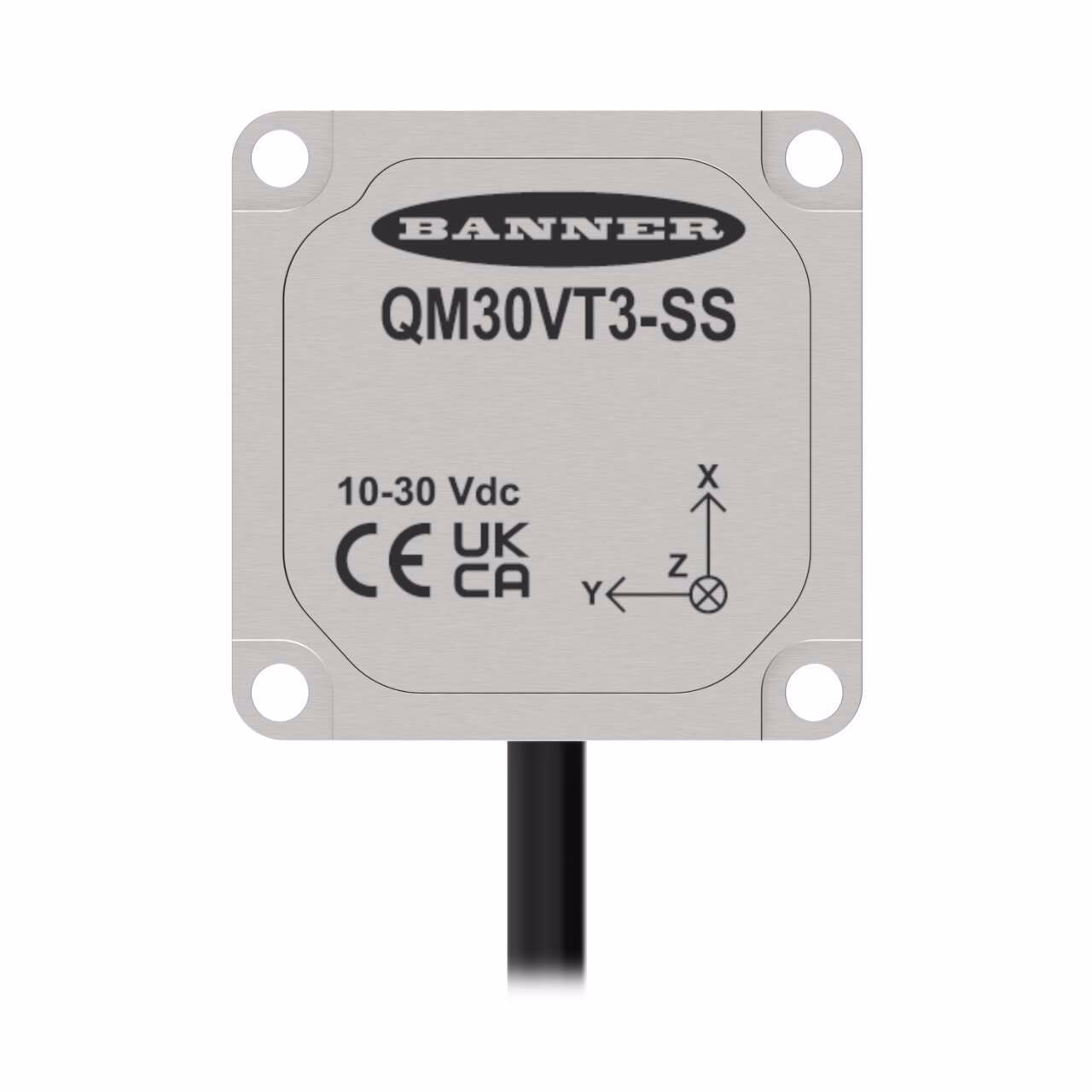

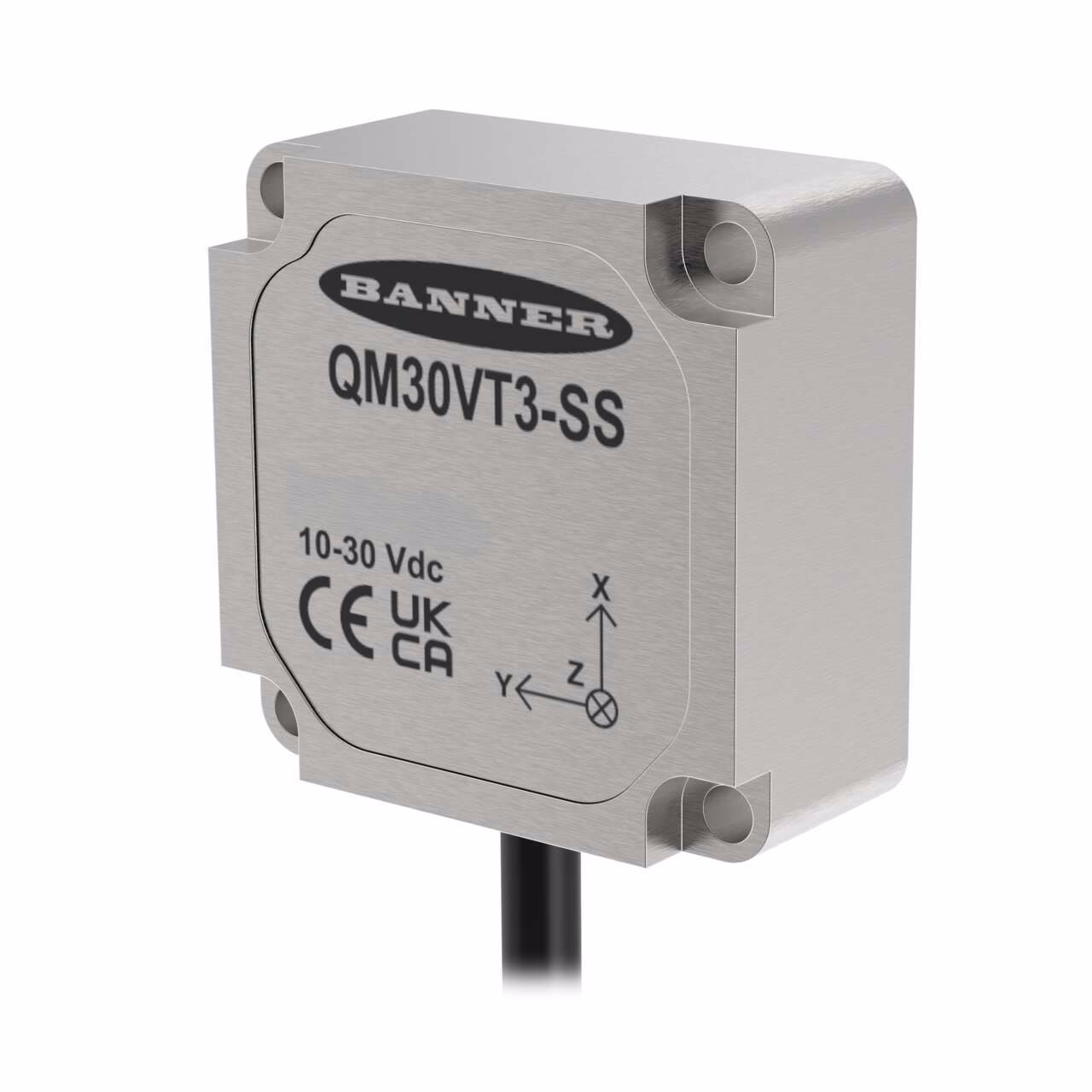

Banner – QM30VT3-SS-MQP
Vibration and Temperature Sensor
3 Axis; Modbus RTU Server via RS-485
150 mm (6 in) M12 QD
Stainless Steel Housing
| 1-wire Serial Interface | No |
|---|---|
| Banner Cloud ID | No |
| Condition Monitoring Sensor Type | Vibration & Temperature |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 105.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Ships With Battery | No |
| Tree Topology | No |
| Connection mode | Vibration/Temperature |
| Device type | Sensor |
| EPLAN Original Sent Date | 05/07/2025 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Housing Style | Rectangular |
| Input/Output | Serial (Modbus) |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP69K |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| Application.1 | Temperature Input, Vibration Sensor Input |
Description
Vibration and Temperature Sensor
3 Axis; Modbus RTU Server via RS-485
150 mm (6 in) M12 QD
Stainless Steel Housing
