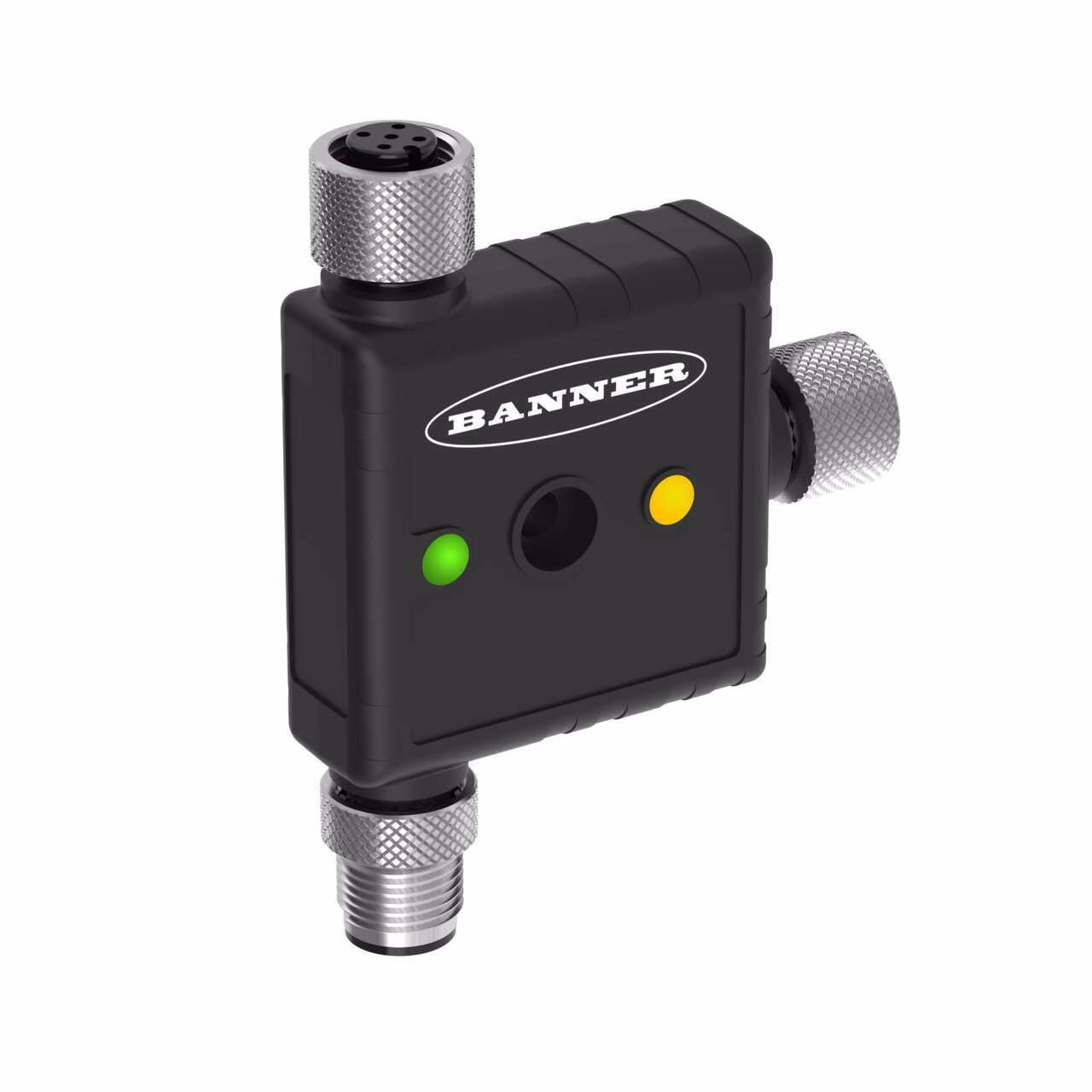

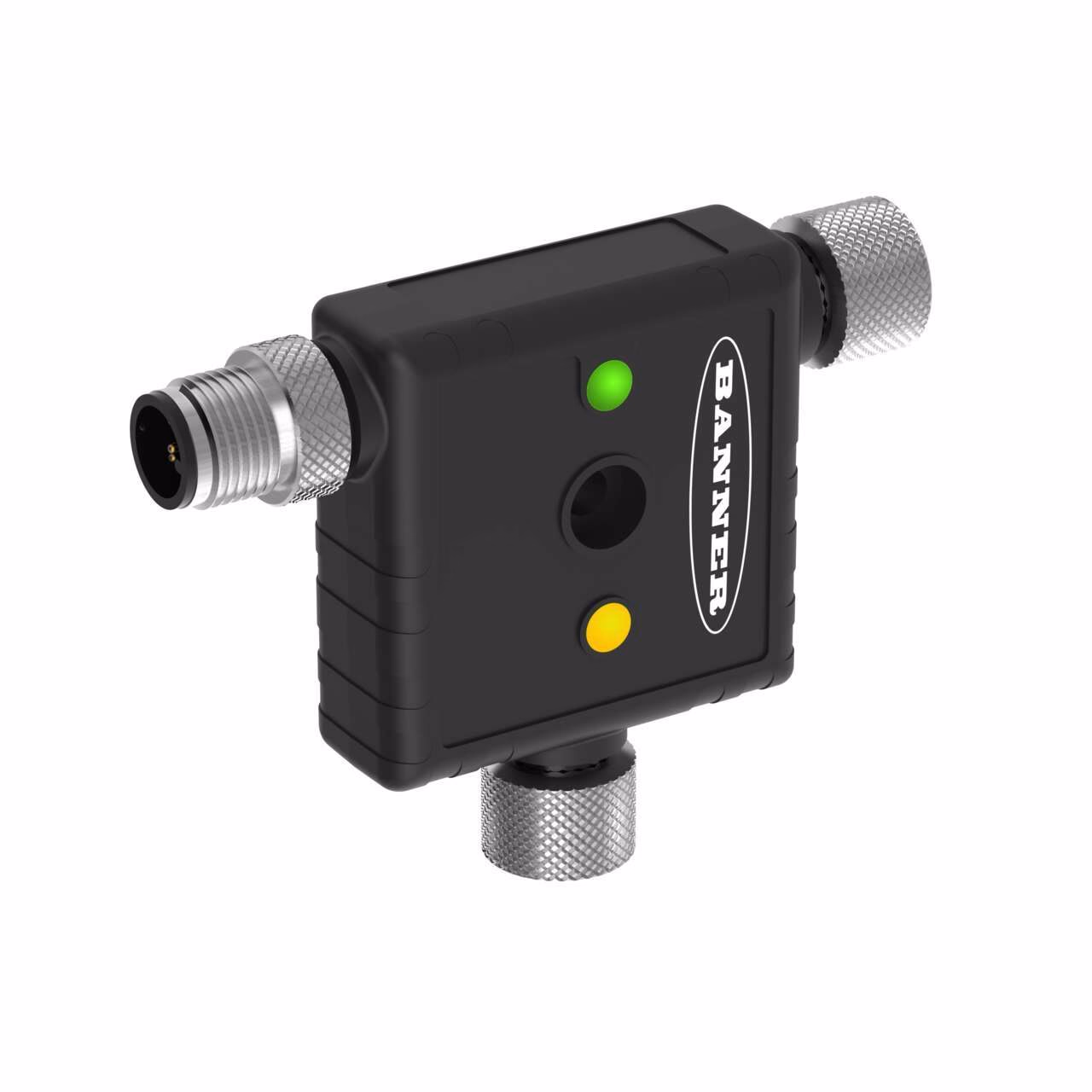

Banner – R45C-B22-SQ
R45C Series: In-Line Converter
Voltage: 18-30 V dc; IP65/IP67/IP68
Female #1: Discrete IO; Male: PICK IQ; Female #2: PICK IQ
| Connector 2 Gender | Female |
|---|---|
| Connector B | Female |
| EPLAN Status | Published |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Operating voltage | 12-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| IO-Link Device | No |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R45 |
| Modbus Client | No |
| Input | Discrete Input & Output |
| Device Size (mm) | 45 x 45 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <50 mA |
Description
R45C Series: In-Line Converter
Voltage: 18-30 V dc; IP65/IP67/IP68
Female #1: Discrete IO; Male: PICK IQ; Female #2: PICK IQ
