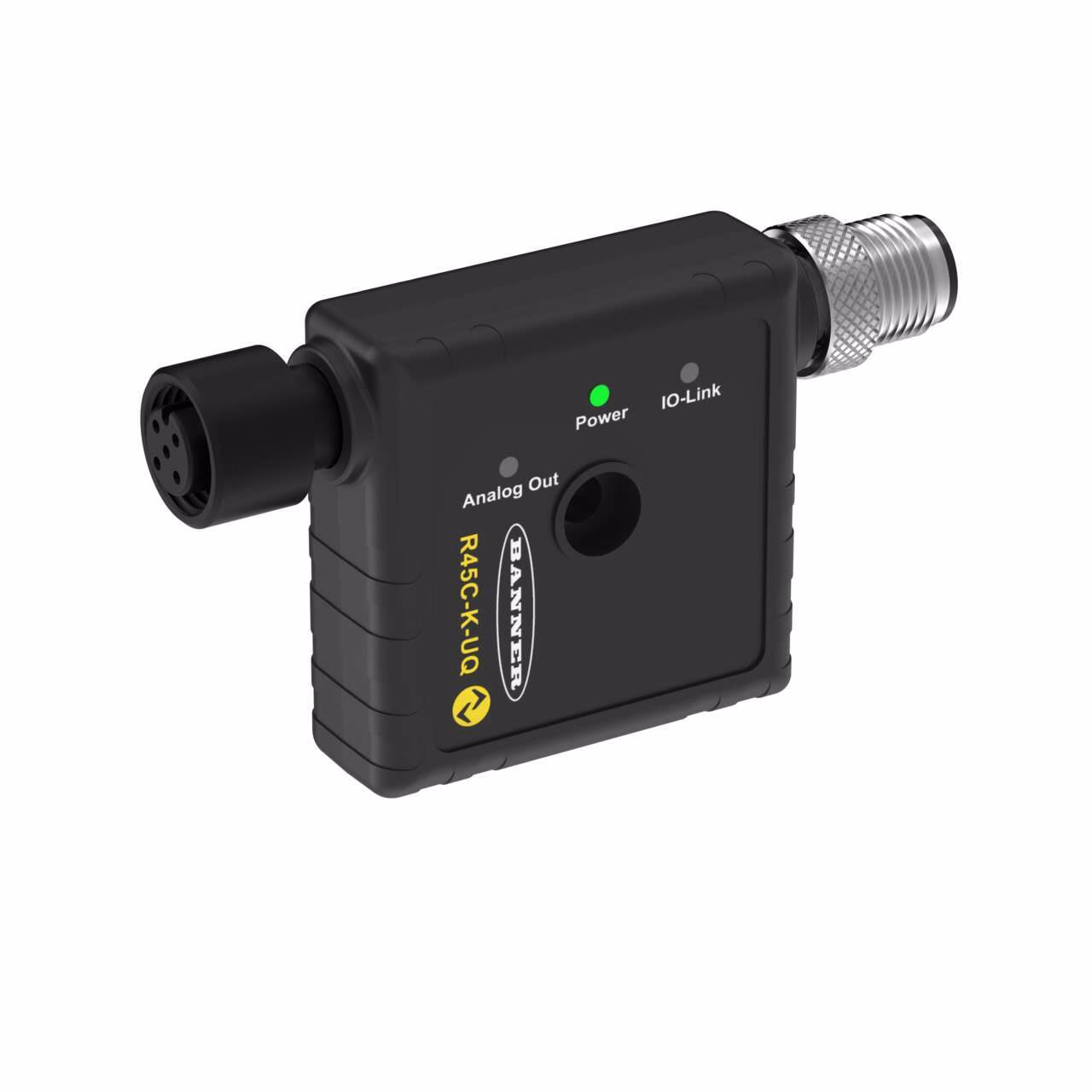

Banner – R45C-K-UQ
R45C Series Converter
IO-Link to Analog Voltage Out
IO-Link Communications
4-pin M12 Integral QD
| Connector 2 Gender | Female |
|---|---|
| Connector B | Male |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Operating voltage | 18-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Analog Voltage |
| IO-Link Device | Yes |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R45 |
| Modbus Client | No |
| Device Size (mm) | 45 x 45 |
| Connector 1 Pin Count | 4.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 4.0 |
| Current | <50 mA |
Description
R45C Series Converter
IO-Link to Analog Voltage Out
IO-Link Communications
4-pin M12 Integral QD
